TECNOGEN LD7500TESX

TECNOGEN LD7500TESX
TECNOGEN LD7500TESX
LD 7500 TESX - COMP

 - A 062 TROLLEY (UPON REQUEST)

 - Standard control panel as shown in the image (version QM306)

Includes:

Properly dimensioned steel frame
Vibration dampers
Battery of adequate capacity
Engine fluids
Exhaust silencer
Central lifting hook
Integrated 20-liter polyethylene fuel tank

Phase type: Single-phase / Three-phase
Voltage: 400 / 230 V
Frequency: 50 Hz
Maximum three-phase power: 6.4 kVA
Single-phase power: 3.8 kVA
Fuel: Diesel
Engine: Kohler 15LD440
Engine speed: 3,000 rpm
Speed ​​governor: Mechanical
Starting system: Electric
Displacement: 442 cm³
Number of cylinders: 1
Cooling: Air
Fuel tank capacity: 20 L
Consumption: approx. 1.5 L/h at 75% load
Length: 750 mm
Width: 560 mm
Height: 620 mm
Dry weight: 170 kg
Soundproofed: Yes
Alternator: LINZ E1S10M H
Lifting hook: central

Download Data Sheet Tecnogen LD7500TESX

Phase
Single phase / Three phase
Height (mm)
620
Length (mm)
750
Starting system
Elettrico
Width (mm)
560
Engine
Kohler
Cooling
Air
Maximum power three phase (KVA)
6.4
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
3000
Speed governor
Mechanical
Engine capacity (cm³)
442
Number cylinders
1
Alternator
Linz
Single-phase power (KVA)
3.8
Fuel tank capacity (L)
20
Consumption (L/h)
1.5 al 75% at load
Acoustic power
95 dB(A)
Dry weight (Kg)
170
Silenced
Yes
Lifting Hook
Included
Brand

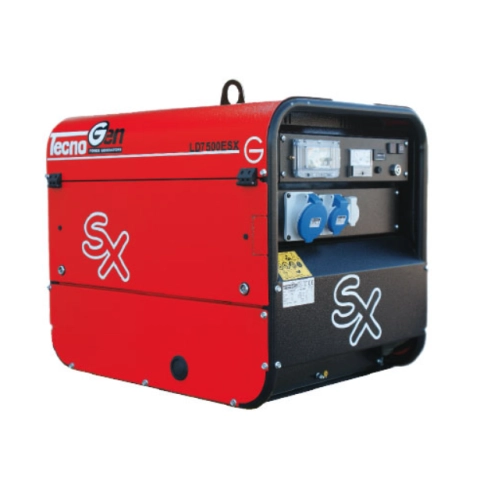

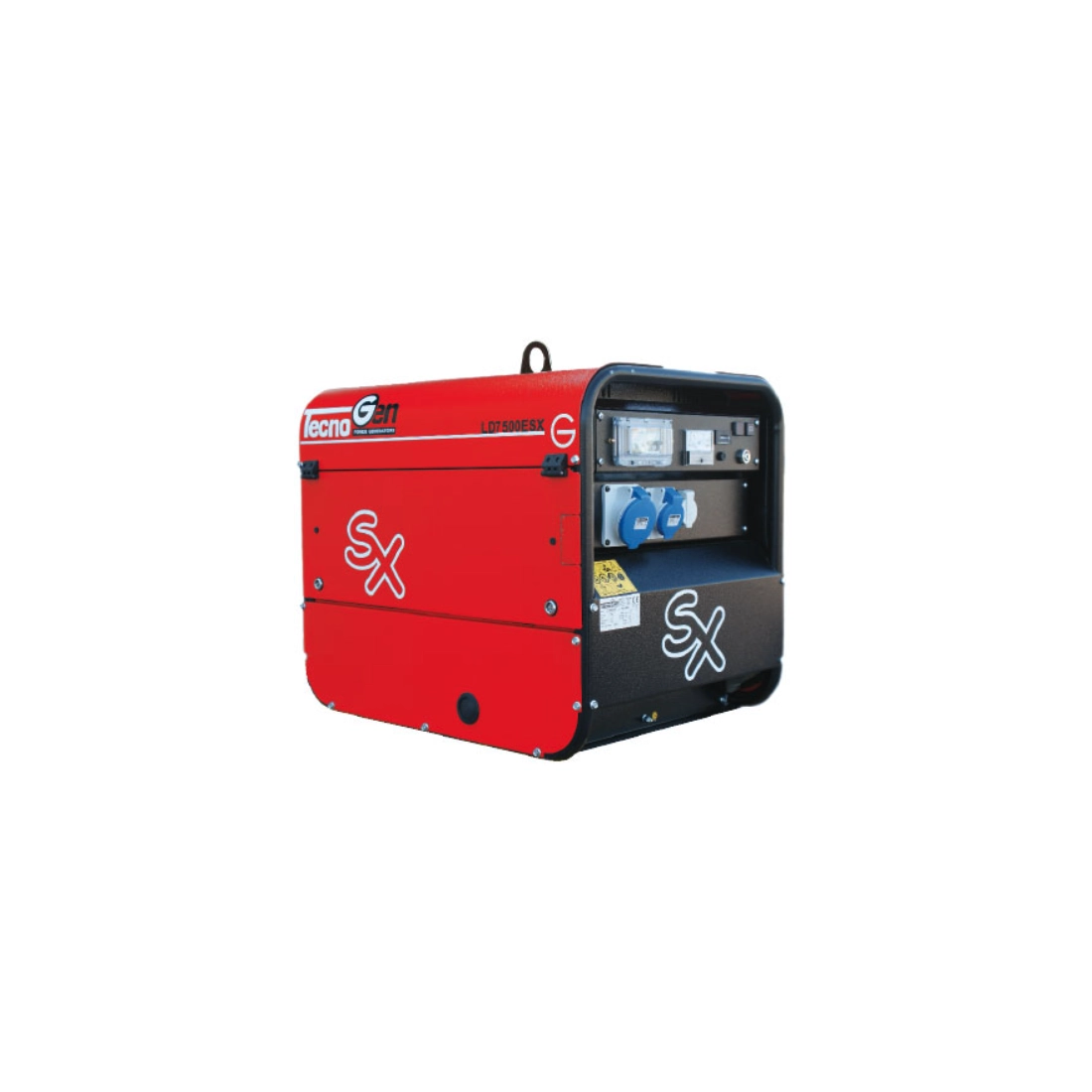

TECNOGEN LD7500TESX 6.4 KW Generator Set

TECNOGEN LD7500TESX three-phase 6.4 KW generator set with a Kohler engine running at 3000 rpm powered by diesel. The TECNOGEN LD7500TESX generator set is easy to use and is compact, manageable, and easy to maintain. The TECNOGEN LD7500TESX generator set is equipped with an electric start. This generator set is perfect for both hobby and professional use, thanks to the reliable diesel-powered Kohler engine and all the high-quality components it is made of.

Why buy an LD7500TESX generator set?
First of all, they solve power outage problems during blackouts in various environments, from homes to businesses. The TECNOGEN LD7500TESX generator set is also used to provide electricity on construction sites and for hobby use. Professional generators are lightweight, easy to transport, compact and robust machines, simple to use and with low 1 operating costs. They also have an excellent quality/price ratio.

Lifting hooks can be installed on the TECNOGEN LD7500TESX generator set, which are very convenient for moving the generator with an overhead crane or a small crane.

Below are the main features:

 - A 062 TROLLEY (UPON REQUEST)

 - Standard control panel as shown in the image (version QM306)

Includes:

Properly dimensioned steel frame
Vibration dampers
Battery of adequate capacity
Engine fluids
Exhaust silencer
Central lifting hook
Integrated 20-liter polyethylene fuel tank

Phase type: Single-phase / Three-phase
Voltage: 400 / 230 V
Frequency: 50 Hz
Maximum three-phase power: 6.4 kVA
Single-phase power: 3.8 kVA
Fuel: Diesel
Engine: Kohler 15LD440
Engine speed: 3,000 rpm
Speed ​​governor: Mechanical
Starting system: Electric
Displacement: 442 cm³
Number of cylinders: 1
Cooling: Air
Fuel tank capacity: 20 L
Consumption: approx. 1.5 L/h at 75% load
Length: 750 mm
Width: 560 mm
Height: 620 mm
Dry weight: 170 kg
Soundproofed: Yes
Alternator: LINZ E1S10M H
Lifting hook: central


Are you looking for a different model of generator or generator set? Visit the section dedicated to land generator sets.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
