MASE MPL 230 I

Reference MPL 230 I

OUT OF PRODUCTION

Single-phase maximum power: 61.28 KW
Three-phase maximum power: 184 KW
Three-phase continuous use power: 160 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: FPT (IVECO) NEF67TE2A turbo
Starting: Electric
Consumption: 35.7 Lt / h at 75% of the load
Length: 3000 mm
Width: 1100 mm
Height: 1500 mm
Weight: 2100 Kg

Download Scheda tecnica MPL 230 I Download Technical data MPL 230 I

Product Details
Description

Phase: Single phase / Three phase
Maximum power single phase (KW): 61.28
Maximum power single phase (KVA): 76.6
Maximum power three phase (KW): 184
Continuous power three phase (KW): 160
Maximum power three phase (KVA): 230
Continuous power three phase (KVA): 200
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: FPT (IVECO) NEF67TE2A turbo
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 6
Number cylinders: 6
Cooling: Water
Alternator: Synchronous
Fuel tank capacity (L): 230
Consumption (L/h): 35.7 at 75% of the load
Running time (h): 6.44 at 75% of the load
Length (mm): 3000
Width (mm): 1100
Height (mm): 1500
Dry weight (Kg): 2100
Silenced: No
Super silenced: No
ATS Switch device: Optional ATS
Voltage regulator: No
Engine manufacturer: FPT Iveco

Brand

La linea di prodotti Mase marini è stata sviluppata per installazioni a bordo di imbarcazioni.
I modelli IS ( Intercooler System), generatori diesel dalle caratteristiche innovative, assicurano ai costruttori di imbarcazioni e agli utilizzatori finali estrema facilità d'installazione, alta efficienza, elevate prestazioni e silenziosità, garantendo al tempo stesso un bassissimo livello di impatto ambientale.

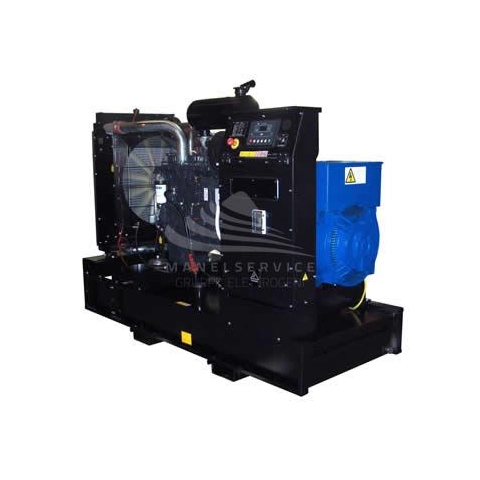

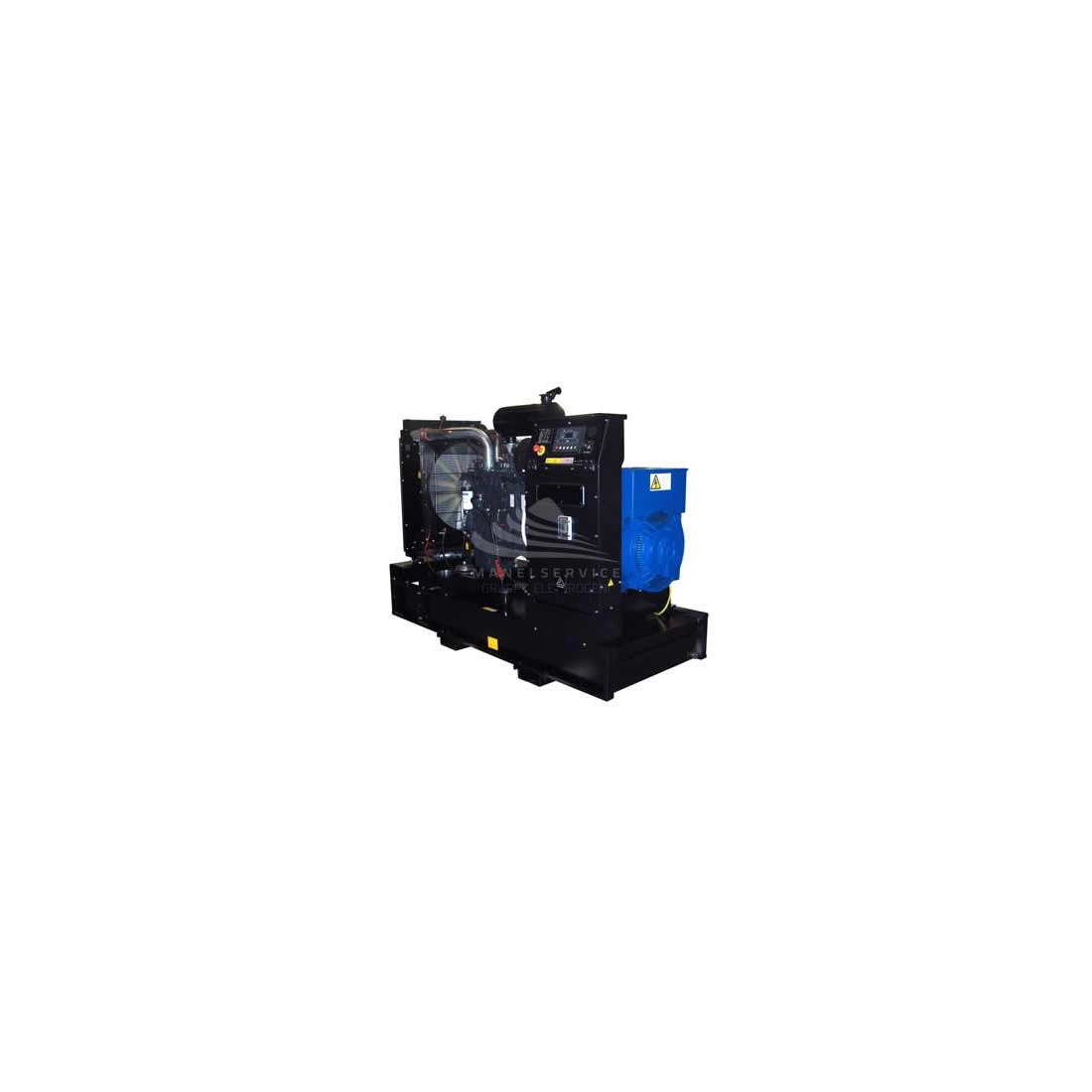

L'immagine è puramente indicativa

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
