MASE MPL 176 S-I SILENCED

MASE MPL 176 S-I SILENCED

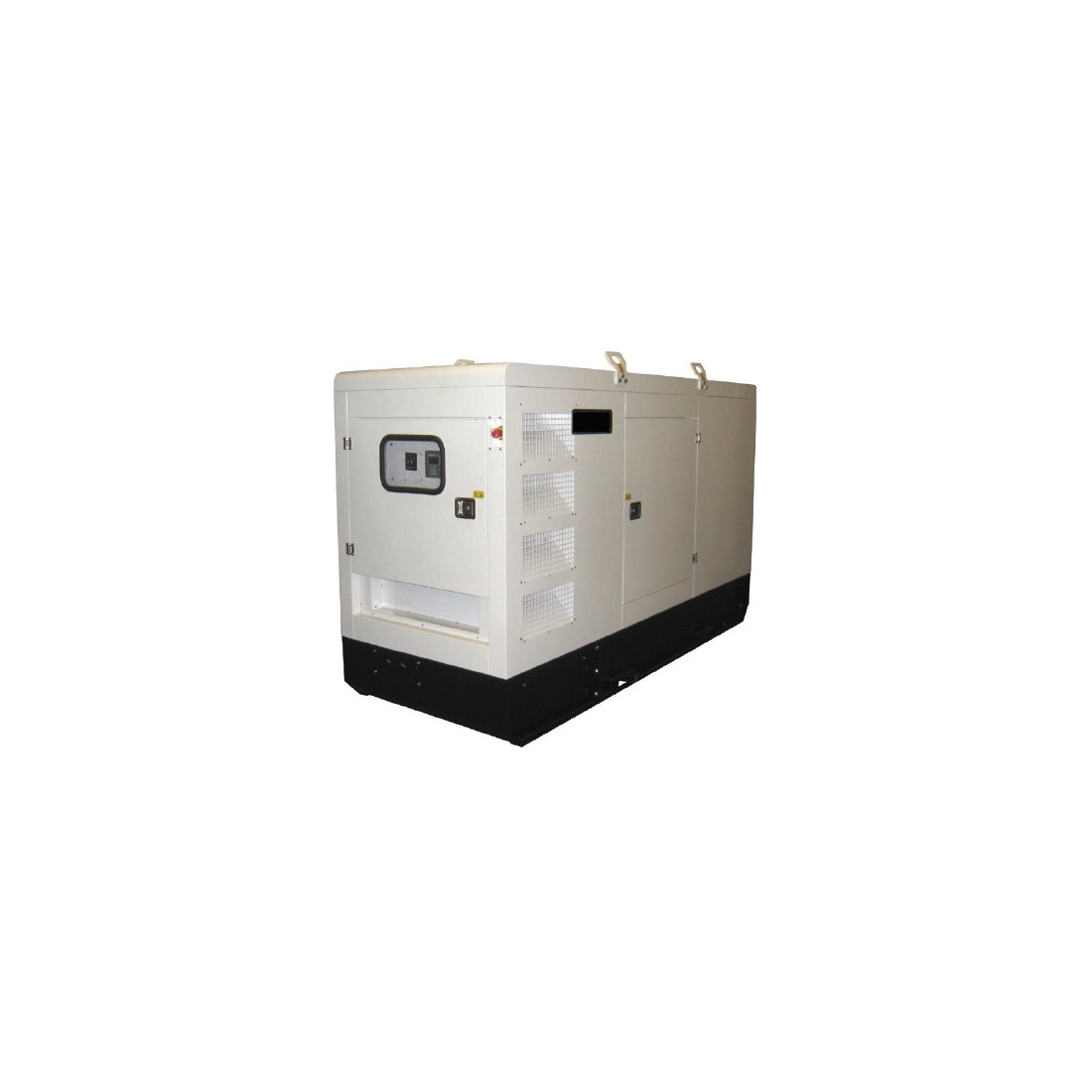

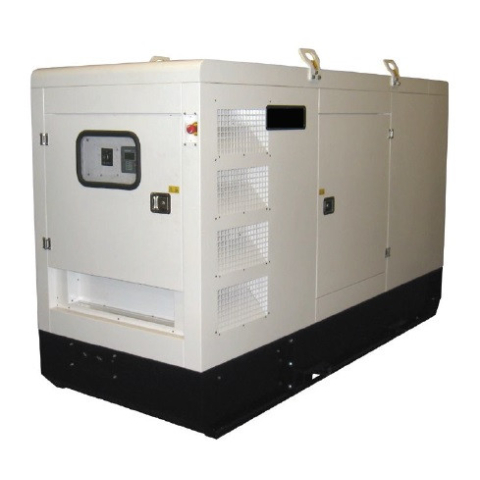

MASE MPL 176 S-I is a silenced generating set with 176 KVA three-phase and 58.6 KVA single-phase output and FPT NEF 67 TM4 stationary diesel engine.
Standard equipment of the MASE MPL 176 S-I generating set:

- Logic with digital display for the reading of the following parameters: generator three-phase voltage, mains three-phase voltage, battery voltage, amperage, frequency, hour meter, oil pressure, engine temperature, fuel level, failure to start;

complete with automatic engine stop device with alarm signal on the display in case of

- failed start

- emergency stop

- low oil pressure

- low fuel level

- high water temperature

- oil pressure probe failure

- Over/under alternator voltage

- over/under alternator frequency

- Thermomagnetic circuit breaker

- Emergency stop button

- Starter batteries

- Diesel fuel level float

- Silenced muffler

- Automatic voltage regulator (AVR)- Terminal block for three-phase power withdrawal

- Terminal board for ATS panel connection

- Terminal board for remote control

- Forks passage

- Collection tank

- First filling liquids

Technical features of the MASE MPL 176 S-I generating set

- Lwa 95 (70 dB at 7 mt)

- Type: synchronous

- Three-phase power (emergency): 176kVA- 400V

- Three-phase power (continuous): 150kVA- 400V

- Single-phase power (emergency): 58,6kVA- 230V

- Power factor: cosfì 0.8

- Type: FPT NEF 67 TM4 - 6 cil. - 6700 cm 3

- Maximum power: 224 hp (165 kWm)

- Starting: electric (12Vcc- Cooling: water

- Fuel consumption at 75% load: 29,4 lt/h

- Insulation class: H

- Ambient temperature: 40 °C

- Reference altitude: 1000m

- Degree of protection: IP 23

- Fuel tank capacity: 230 lt

-Dimensions (L xWxH): 3400 x 1100 x 1820mm

- Empty weight: 1945 kg
