MASE MPL 16 I-SY

Reference 009025 - AVR

Maximum power three-phase: 10.48 KW

Three phase continuous use power: 10 KW

Fuel: Diesel

Voltage: 230 V / 400 V

Frequency: 50 Hz

Engine: Deutz F2M2011

Starting: Electric

Consumption: 2.6 Lt/h at 75% of the load

Length: 1950 mm

Width: 900 mm

Height: 1125 mm

Weight: 650 Kg

Download Scheda tecnica MPL 15 S Download Technical data MPL 15 S

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 10.48
Continuous power three phase (KW): 10
Maximum power three phase (KVA): 13.1
Continuous power three phase (KVA): 12.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 2 x 230V 16A CE
Engine: Deutz F2M2011, naturally aspirated
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1554
Number cylinders: 2
Cooling: Oil
Alternator: Synchronous
Fuel tank capacity (L): 65
Consumption (L/h): 2.6 at 75% of the load
Running time (h): 25 at 75% of the load
Acoustic power: 92 dB(A)
Acoustic pressure: 67 dB(A) at 7 m
Length (mm): 1950
Width (mm): 900
Height (mm): 1125
Dry weight (Kg): 650
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional ATS
Voltage regulator: Compound / AVR (optional)
Engine manufacturer: Deutz

Brand

La linea di prodotti Mase marini è stata sviluppata per installazioni a bordo di imbarcazioni.
I modelli IS ( Intercooler System), generatori diesel dalle caratteristiche innovative, assicurano ai costruttori di imbarcazioni e agli utilizzatori finali estrema facilità d'installazione, alta efficienza, elevate prestazioni e silenziosità, garantendo al tempo stesso un bassissimo livello di impatto ambientale.

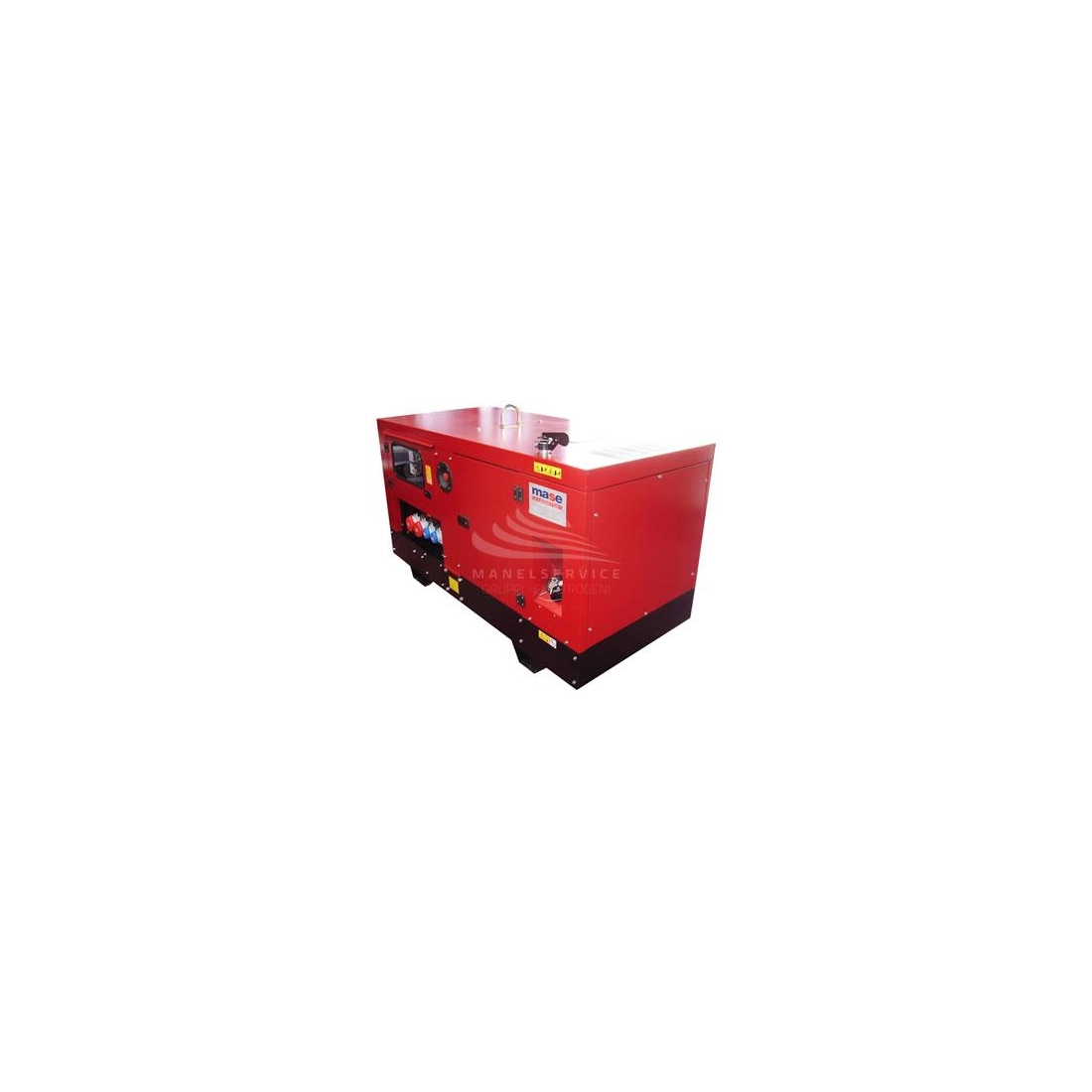

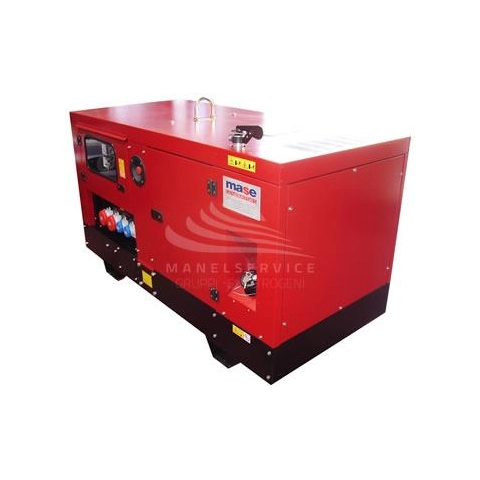

L'immagine è puramente indicativa

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
