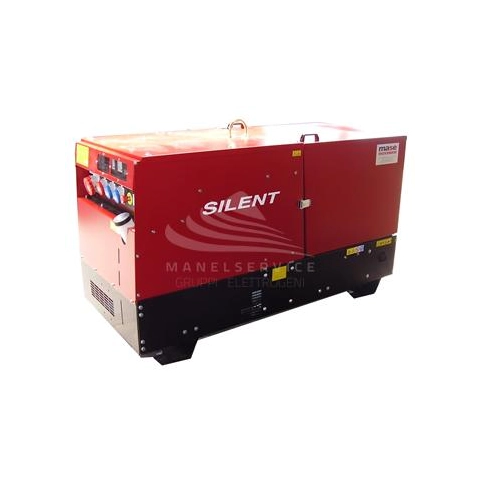

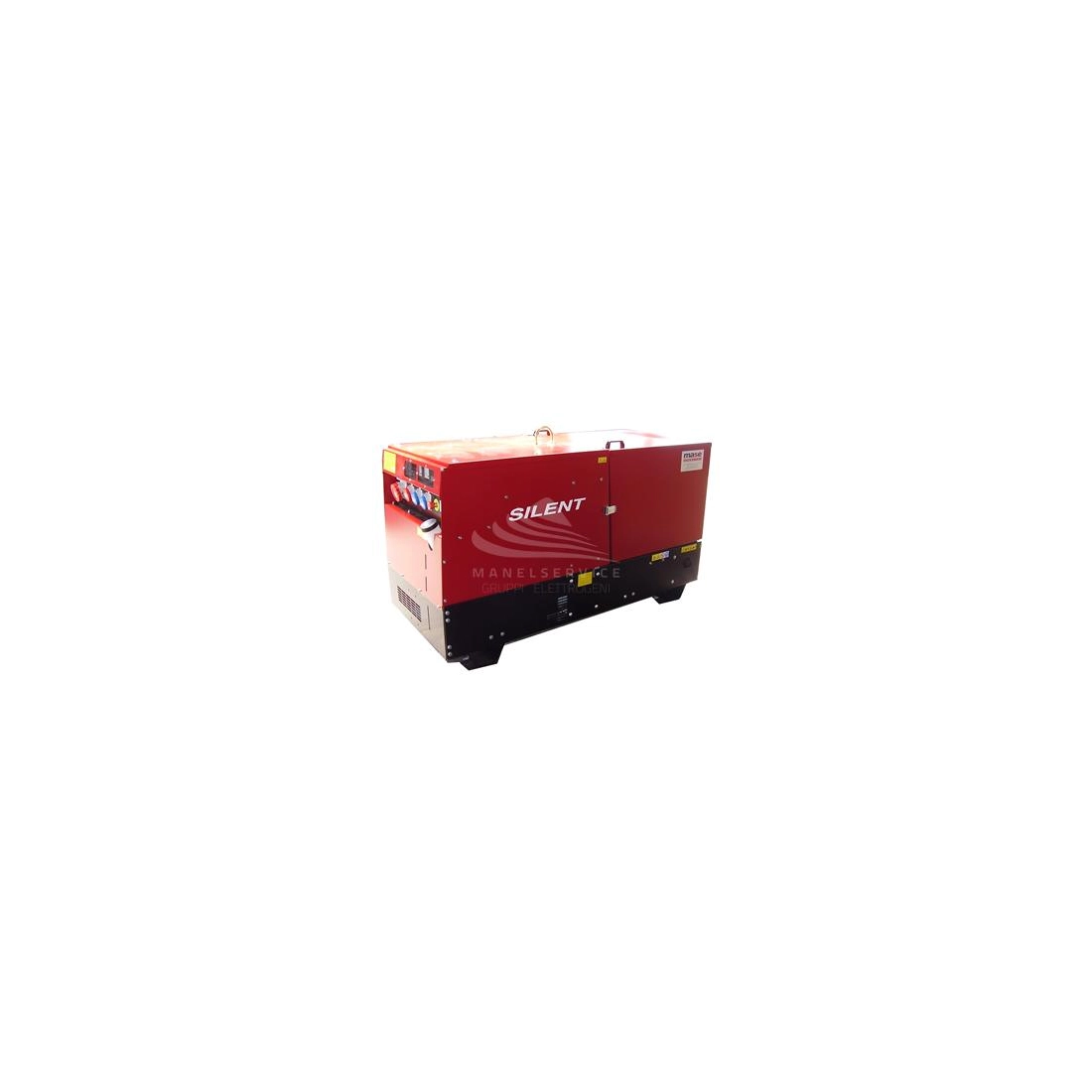

MASE MPV 33 BA

MASE IS 2.6
MASE IS 2.6
007949

OUT OF PRODUCTION

Three-phase maximum power: 26.4 KW
Three-phase continuous use power: 24 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Deutz F4M2011
Starting: Electric
Consumption: 5.26 Lt / h at 75% of the load
Length: 1877 mm
Width: 860 mm
Height: 1090 mm
Weight: 845 Kg
AVR

Download Scheda tecnica MPV 33 BA Download Technical data MPV 33 BA

Phase
Three phase
Height (mm)
1090
Length (mm)
1877
Starting system
Electric
Width (mm)
860
Engine manufacturer
Deutz
Engine
Deutz F4M2011, 4 stroke
Poles
4
Sockets configuration
2 x 230V 16A CE
Lubrication
Forced
Cooling
Oil
Maximum power three phase (KW)
26.4
Continuous power three phase (KW)
24
Maximum power three phase (KVA)
33
Continuous power three phase (KVA)
30
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Speed governor
Mechanical
Engine capacity (cm³)
3108
Number cylinders
4
Oil capacity (L)
10
Inyección
Direct
Alternator
Synchronous self-excited, brushless
Fuel tank capacity (L)
50
Consumption (L/h)
5.26 at 75% of the load
Running time (h)
9.5 at 75% of the load
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
845
Silenced
Yes
Super silenced
Yes
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

OUT OF PRODUCTION

Three-phase maximum power: 26.4 KW
Three-phase continuous use power: 24 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Deutz F4M2011
Starting: Electric
Consumption: 5.26 Lt / h at 75% of the load
Length: 1877 mm
Width: 860 mm
Height: 1090 mm
Weight: 845 Kg
AVR

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
