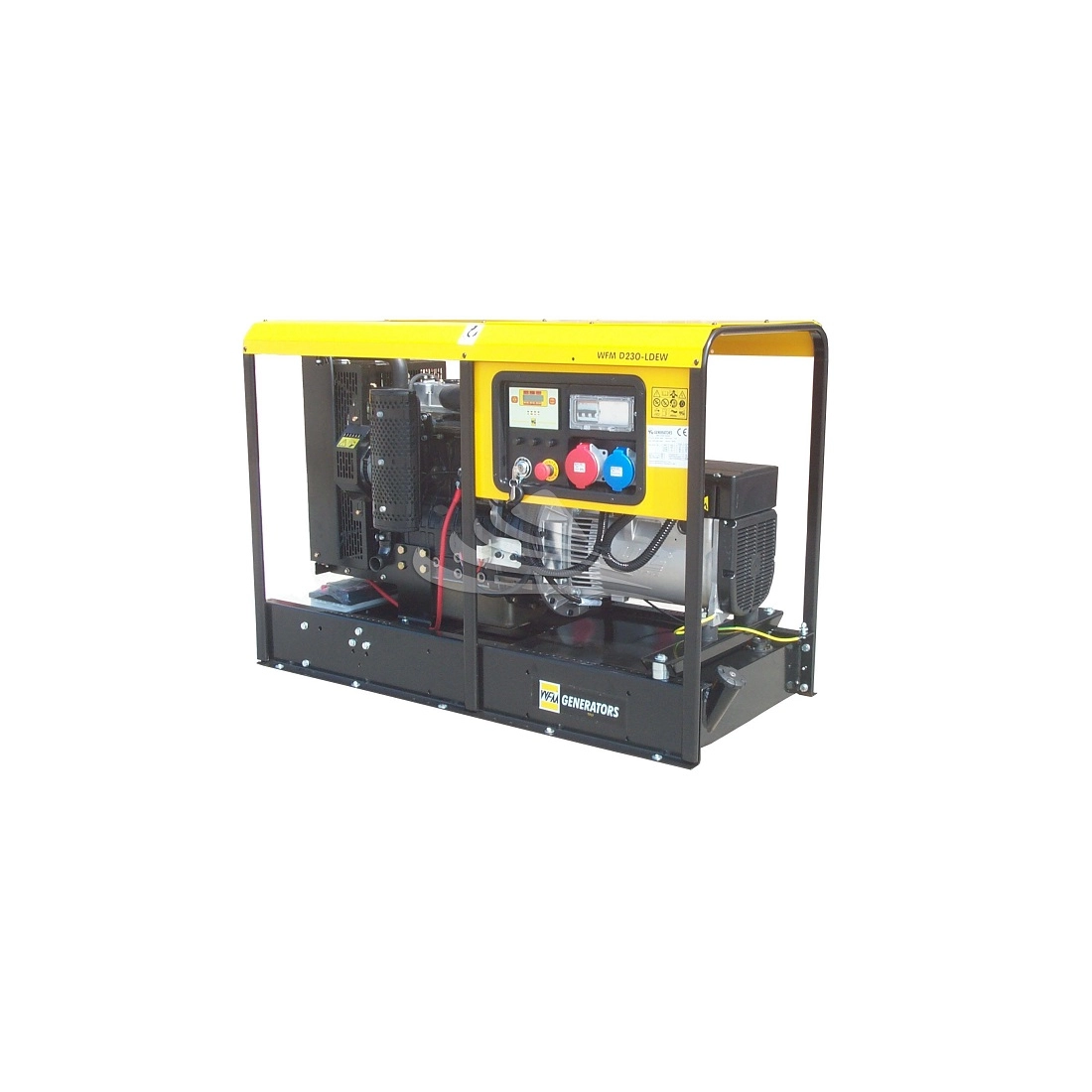

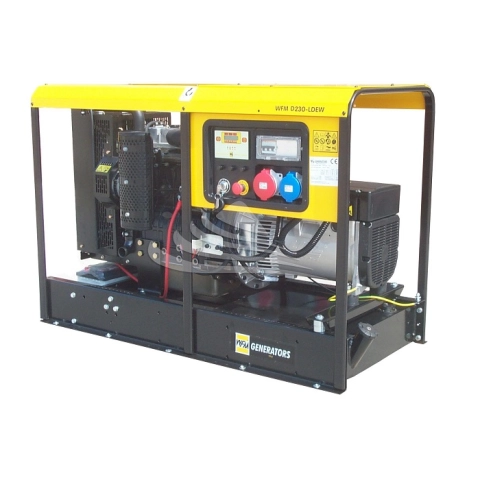

WFM SE12000-MTHE AVR


Phase
Single phase / Three phase
Height (mm)
985
Length (mm)
1450
Starting system
Electric
Width (mm)
680
Engine manufacturer
Lombardini
Engine
Lombardini LDW2204

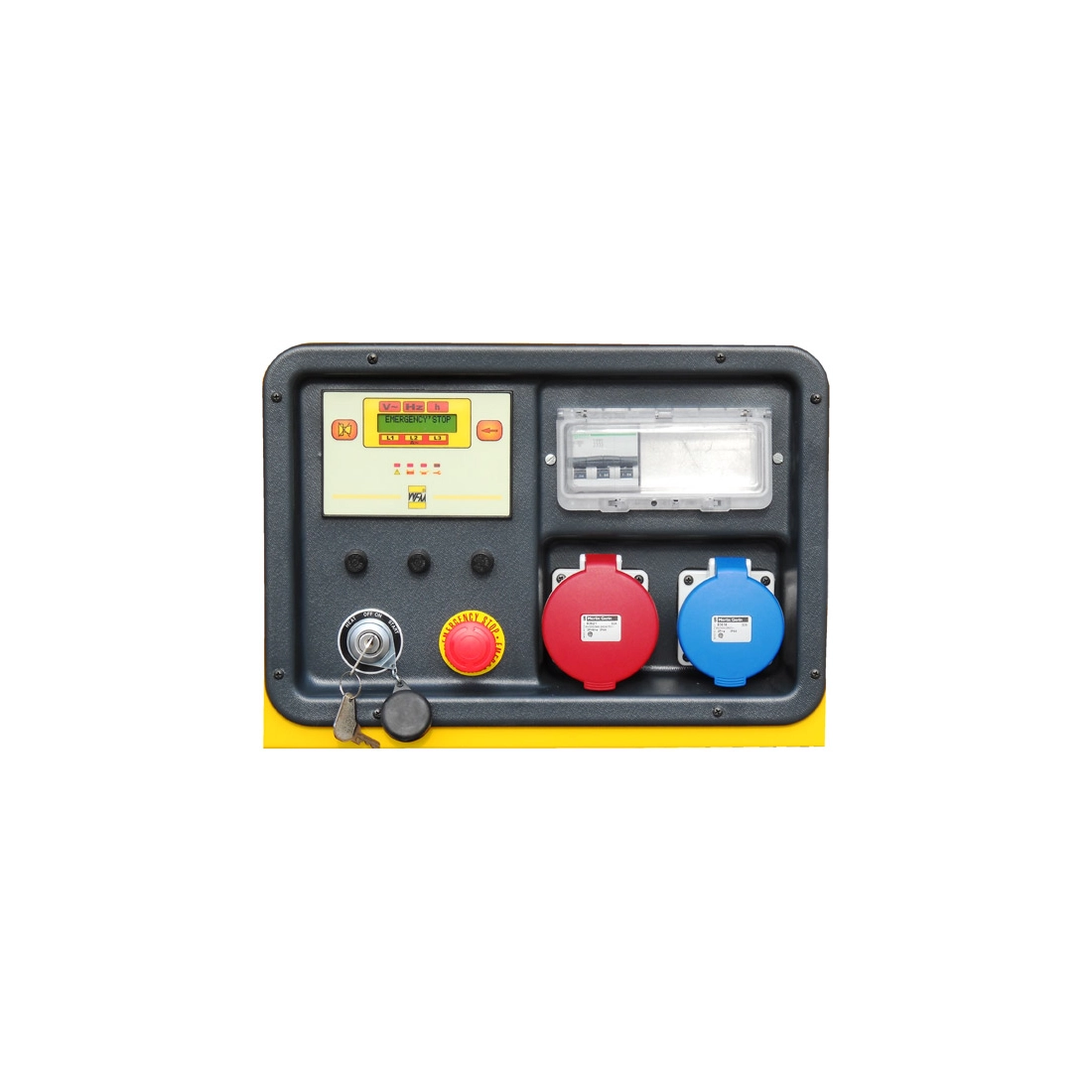

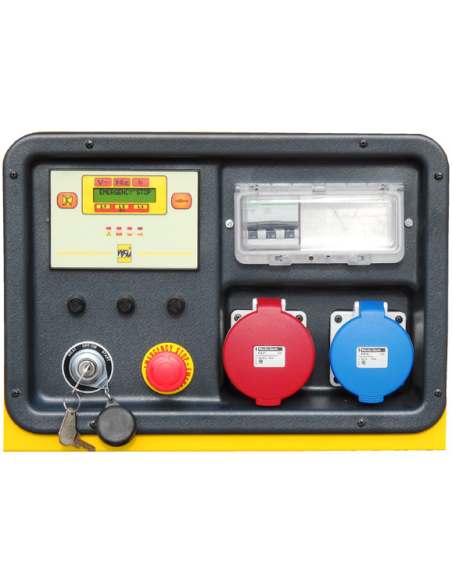

Sockets configuration
1 x 400V 16A 5P CEE - 1 x 230V 16A 3P CEE
Cooling
Coolant Liquid
Maximum power single phase (KW)
5.8
Maximum power single phase (KVA)
7.3
Maximum power three phase (KW)
17.6
Maximum power three phase (KVA)
22
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Engine capacity (cm³)
2199
Number cylinders
4
Oil capacity (L)
4.5
Fuel tank capacity (L)
46
Consumption (L/h)
6 at 100% of the load
Running time (h)
7.66 at 100% of the load
Acoustic power
105 dB(A)
Acoustic pressure
80 dB(A) at 7 m
Dry weight (Kg)
400
Silenced
No
Super silenced
No
ATS Switch device
Optional ATS
Voltage regulator
No
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
