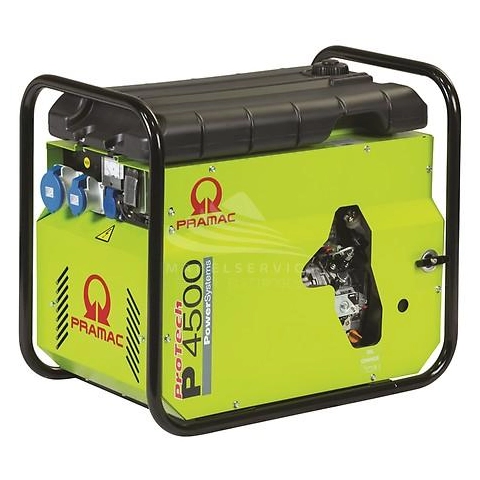

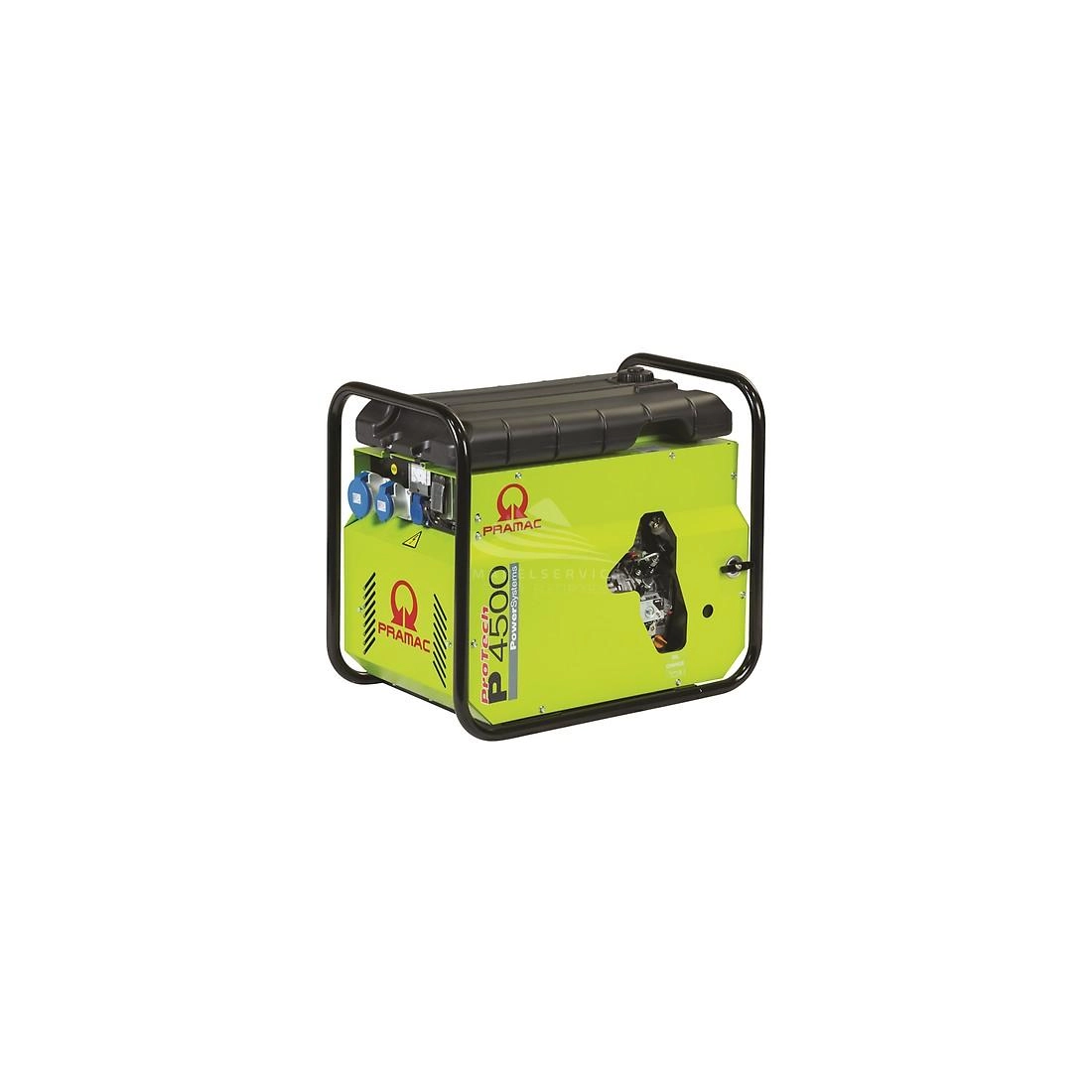

PRAMAC P4500
PF322SY4008 /
OUT OF PRODUCTION
- Phase
- Single phase
- Height (mm)
- 690
- Length (mm)
- 800
- Starting system
- Electric
- Width (mm)
- 520
- Engine manufacturer
- Yanmar
- Engine
- Yanmar L70N Electric, naturally aspirated
- Poles
- 2
- Sockets configuration
- 1 x 230V 16A 2P+T CEE - 1 x 230V 32A 2P+T CEE - 1 x 230V 16A SCHUKO
- Cooling
- Air
- Maximum power single phase (KW)
- 3.7
- Continuous power single phase (KW)
- 3.1
- Maximum power single phase (KVA)
- 4.1
- Continuous power single phase (KVA)
- 3.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine rpm (rpm)
- 3000
- Speed governor
- Mechanical
- Engine capacity (cm³)
- 320
- Oil capacity (L)
- 1.1
- Fuel tank capacity (L)
- 18
- Consumption (L/h)
- 0.93 at 75% of the load / 1.24 at 100% of the load
- Running time (h)
- 19.35 at 75% of the load / 14.52 at 100% of the load
- Acoustic power
- 96 dB(A)
- Acoustic pressure
- 68 dB(A) at 7 m
- Dry weight (Kg)
- 99
- Silenced
- Yes
- Super silenced
- No
- Product type
- Generator
- ATS Switch device
- Optional ATS
- Voltage regulator
- Capacitor
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
