GENMAC WONDER RG14000HS-M5 AVR STAGE V 15.6 kVA GENERATOR

The GENMAC WONDER RG14000HS-M5 AVR STAGE V 14 kVA generator is a single-phase, gasoline-powered generator set, featuring a twin-cylinder Honda iGX800 engine and a Sincro alternator with AVR (Automatic Voltage Regulation).
Designed as a compact, soundproofed solution, it delivers a PRP (Prime Power) output of 12.8 kW / 14.2 kVA and an LTP (Limited-Time Power) output of 14 kW / 15.6 kVA, with an output voltage of 230 V and a frequency of 50 Hz.

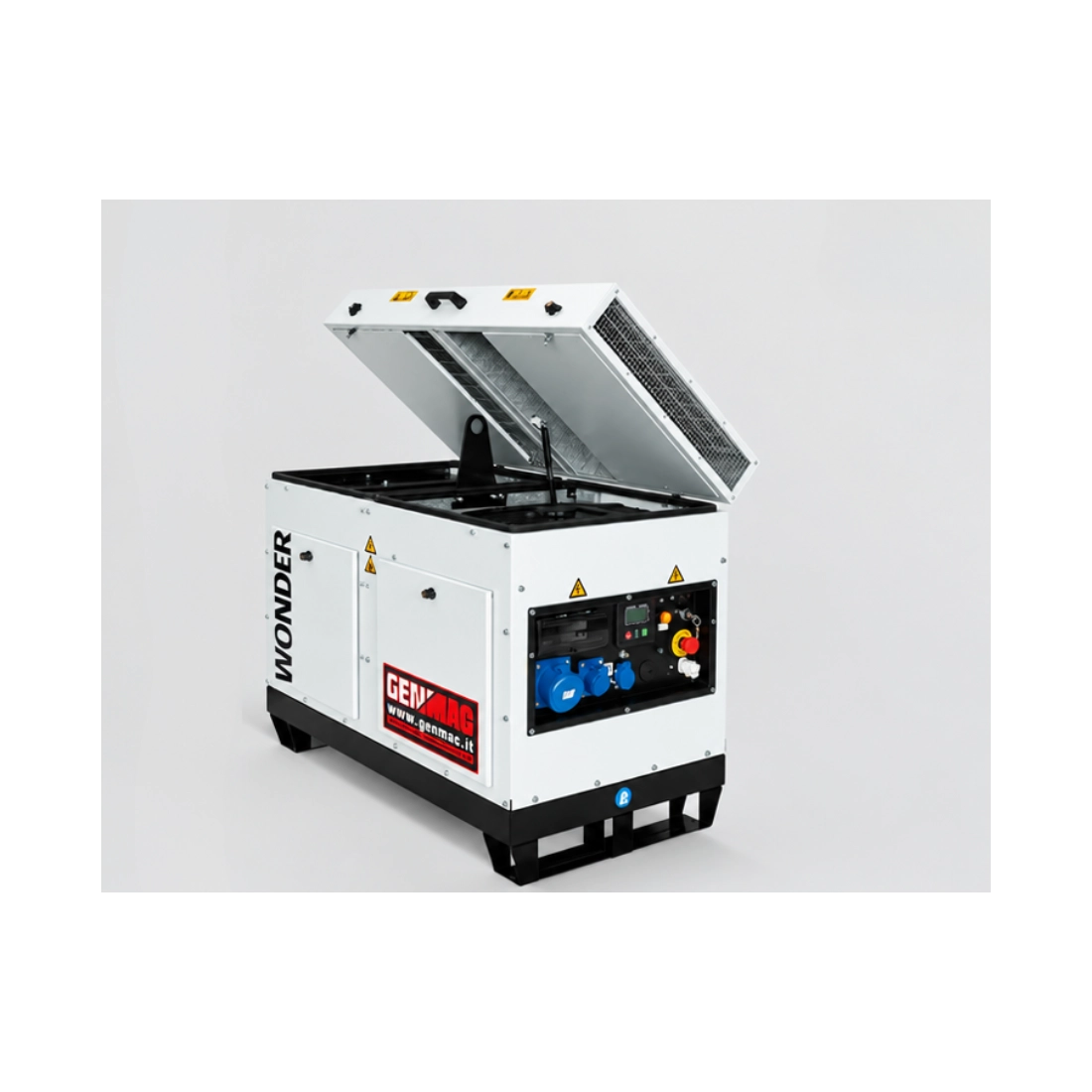

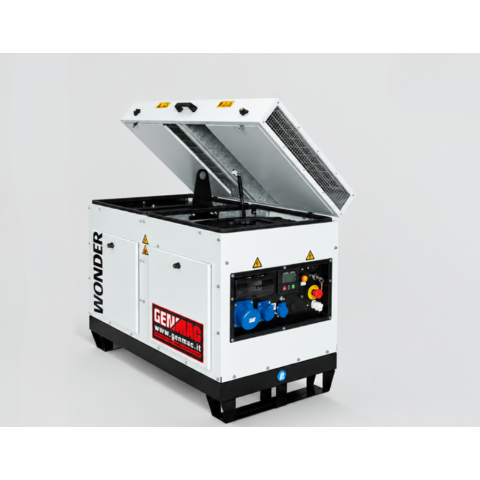

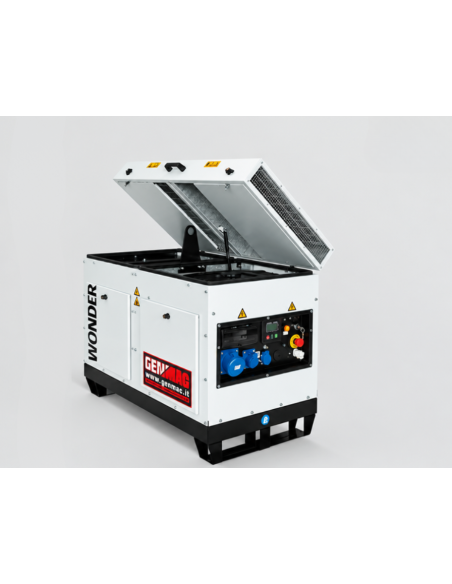

The GENMAC WONDER RG14000HS-M5 AVR STAGE V 14 kVA generator comes in a soundproofed enclosure, with a declared sound pressure level of 65 dBA at a distance of 7 meters.
Integrated forklift pockets on both sides and a central lifting eye facilitate handling, while four lockable, removable access panels—along with a top cover equipped with gas springs—make maintenance tasks straightforward.

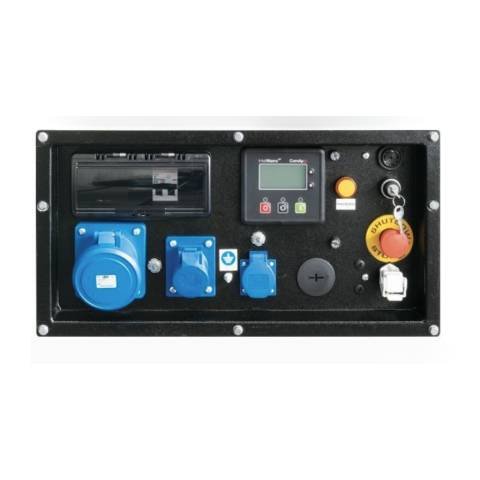

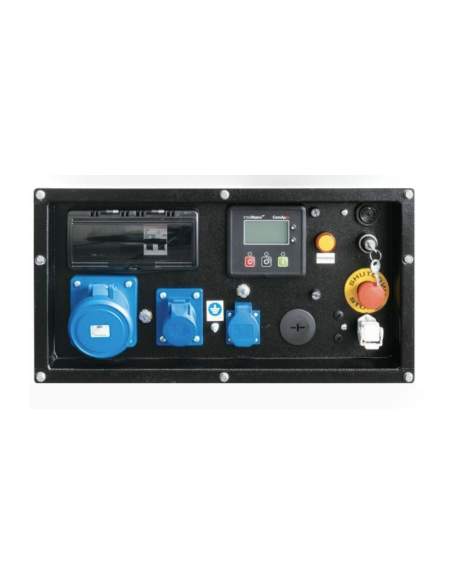

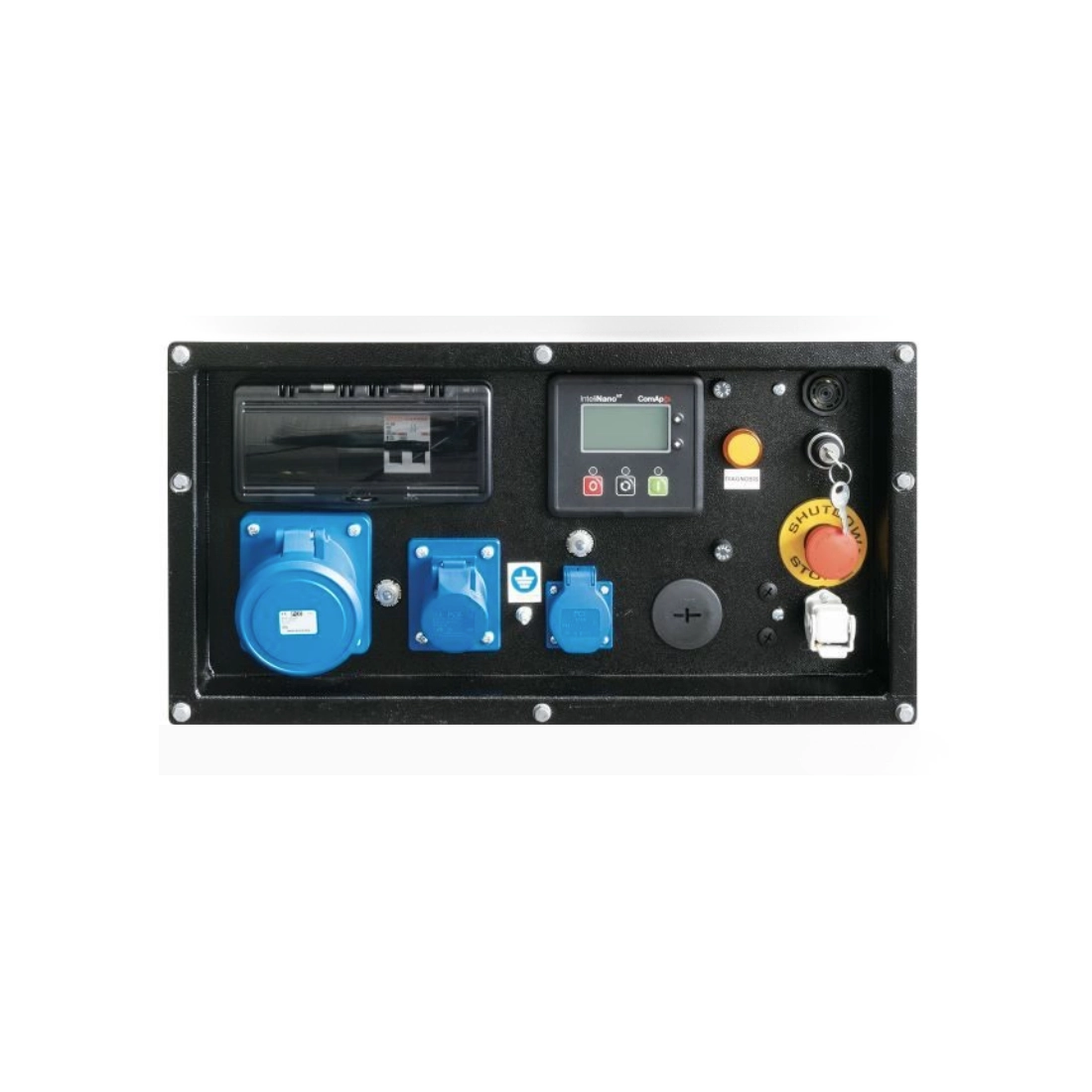

Equipped with an electric start system and a ComAp InteliNano NT-Plus control unit, the GENMAC WONDER RG14000HS-M5 AVR STAGE V 14 kVA generator allows for the monitoring of key electrical parameters and includes built-in protection against overloads, low oil pressure, and engine overspeed. The 25-liter tank provides a stated runtime of approximately 5 hours at 75% load. The equipment is completed by industrial and Schuko sockets, an emergency stop button, and a connector for remote starting or connection to an automatic transfer switch (ATS) panel. TECHNICAL SPECIFICATIONS GENMAC Wonder-GAS G12000HS-M5

TECHNICAL SPECIFICATIONS

Model: RG14000HS-M5 AVR

Output power supply: Single-phase

PRP power: 14.2 kVA

PRP power: 12.8 kW

LTP power: 15.6 kVA

LTP power: 14.0 kW

Power factor: 0.9

Nominal voltage: 230 V

Frequency: 50 Hz

PRP current: 62 A

LTP current: 68 A

Rotational speed: 3,000 rpm

Engine brand: Honda

Engine model: iGX800

Fuel: Gasoline

Number of cylinders: 2

Displacement: 0.78 liters

Aspiration: Natural

Cooling: Air-cooled

Engine speed regulation: Electronic

Starting system: Electric

Starting voltage: 12 V DC

PRP engine power: 13.30 kW

LTP engine power: 14.63 kW

Declared emissions: Euro Stage 5

Alternator brand: Sincro

Alternator model: FK2MGA

Alternator excitation: Self-excited

Voltage regulation: AVR

Voltage regulator accuracy: ±5%

Fuel tank capacity: 25 liters

Fuel consumption at 25% load: 1.71 l/h

Fuel consumption at 50% load: 3.42 l/h

Fuel consumption at 75% load: 4.75 l/h

Fuel consumption at 100% load: 5.70 l/h

Runtime at 75% load: Approximately 5 hours

Recommended lubricant: SAE 15W40 oil

Engine oil capacity: 1.80 liters liters

Length: 1,100 mm

Width: 677 mm

Height: 1,018 mm

Net weight: 278 kg

Gross weight: 286 kg

Looking for a product with different technical specifications? You can find a section dedicated to generators from specialized brands HERE.

Images and technical data are for reference only and are not binding.
