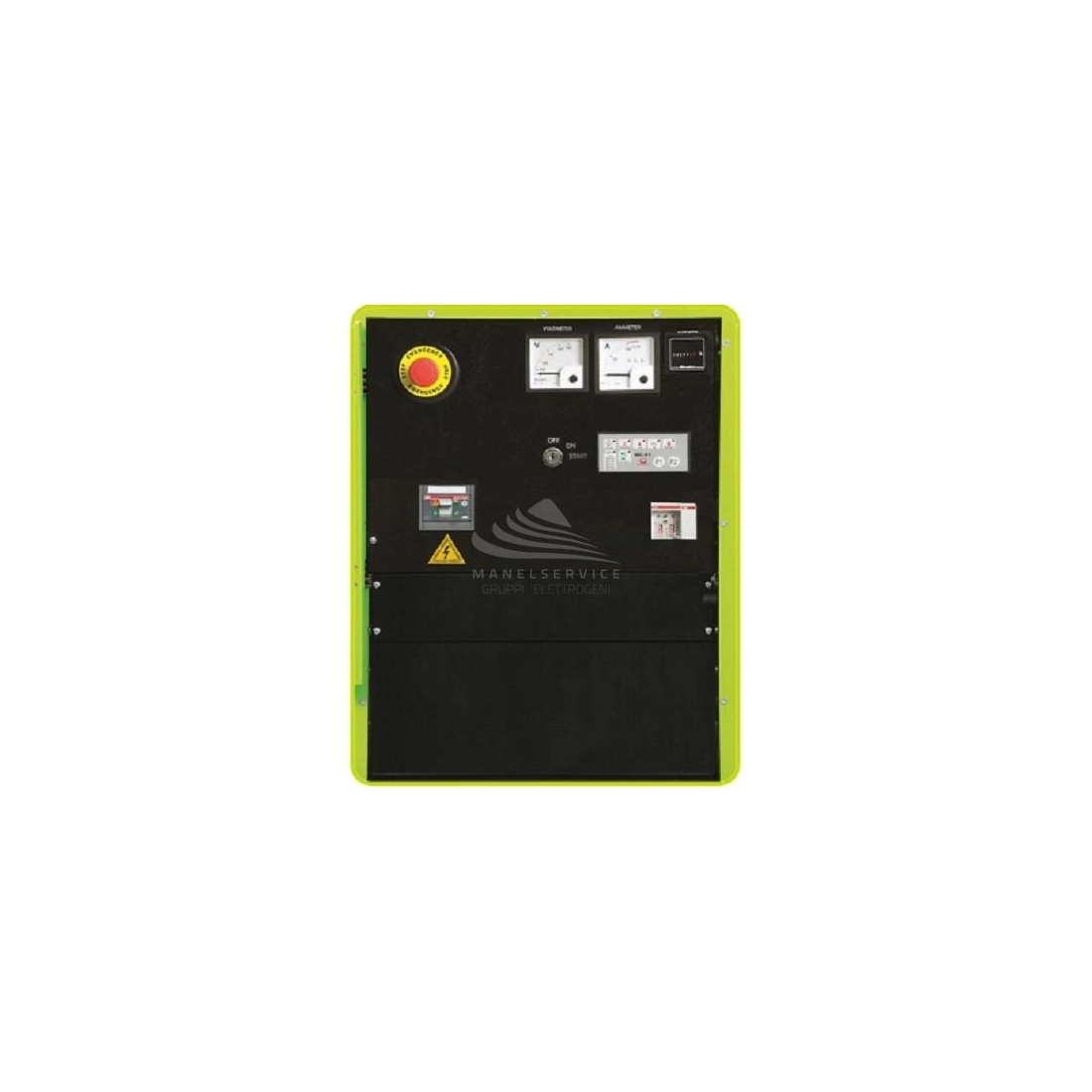

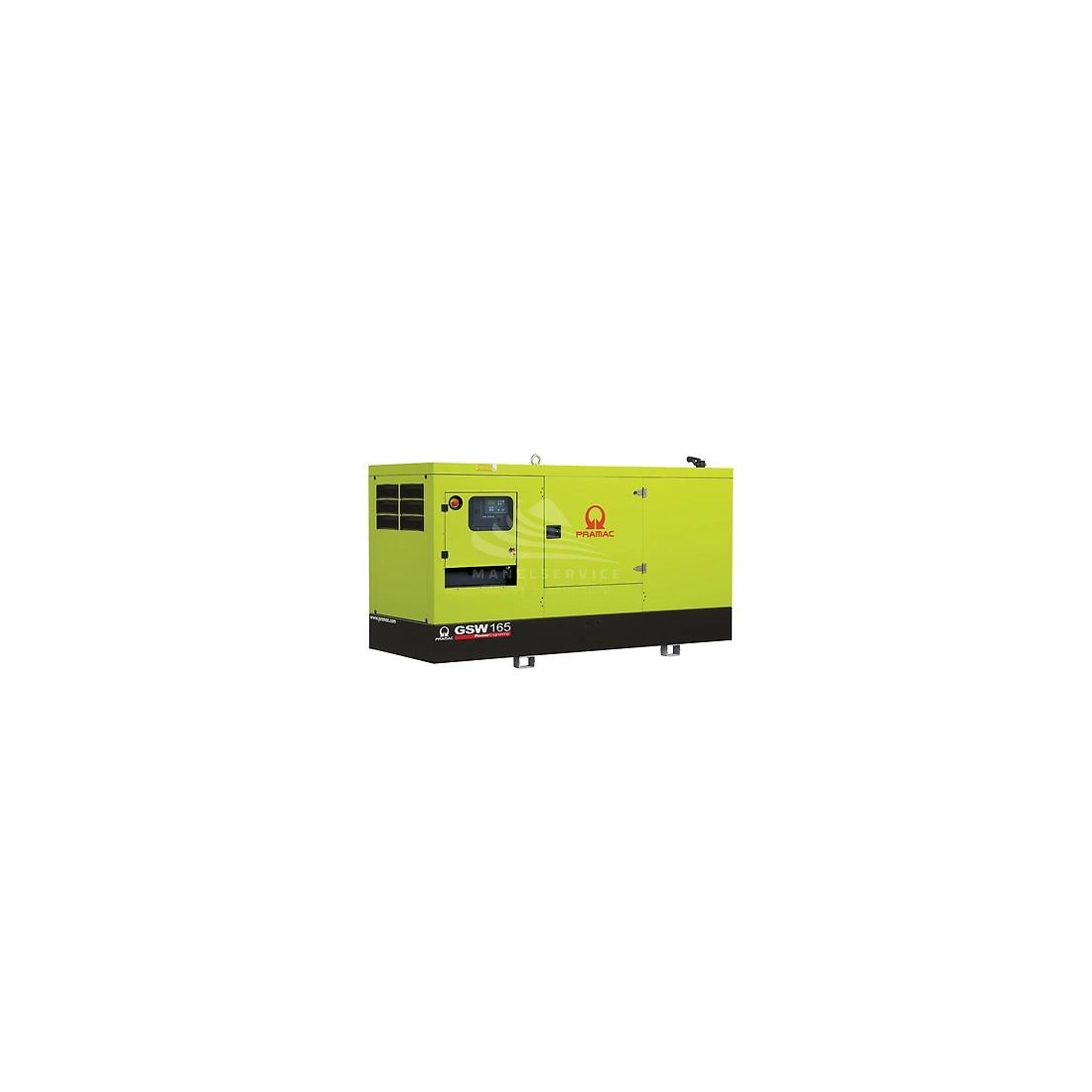

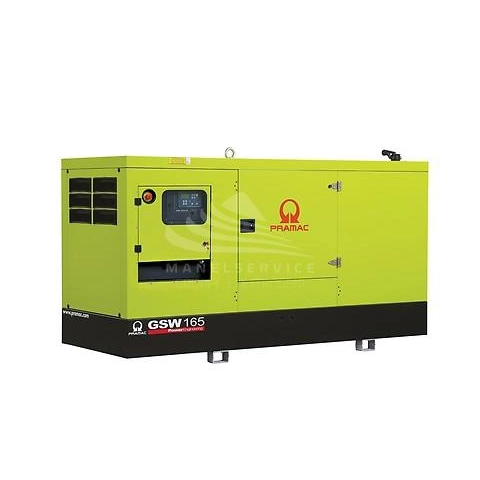

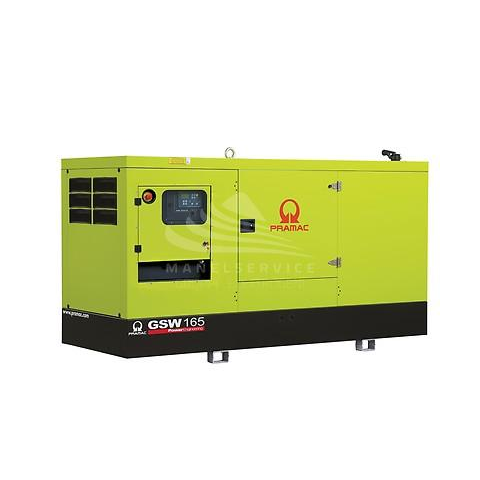

PRAMAC GSW165P COFANATO CON QUADRO COMANDO MANUALE


Phase
Three phase
Height (mm)
1760
Length (mm)
3000
Starting system
Electric
Width (mm)
1150
Engine manufacturer
Perkins
Engine
PERKINS 1106A-70TAG2, turbocharged
Poles
4
Cooling
Water
Maximum power three phase (KW)
131.2
Continuous power three phase (KW)
122.1
Maximum power three phase (KVA)
164
Continuous power three phase (KVA)
152.62
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Speed governor
Mechanical
Engine capacity (cm³)
7000
Number cylinders
6
Cylinders' position
In line
Oil capacity (L)
11.9
Alternator
Mecc Alte ECP34-2L, brushless
Fuel tank capacity (L)
350
Consumption (L/h)
24.5 at 75% of the load / 32.9 at 100% of the load
Running time (h)
14.3 at 75% of the load / 10.6 at 100% of the load
Acoustic power
97 dB(A)
Acoustic pressure
68 dB(A) at 7 m
Dry weight (Kg)
2038
Silenced
Yes
Super silenced
Yes
ATS Switch device
No ATS
Voltage regulator
AVR
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
