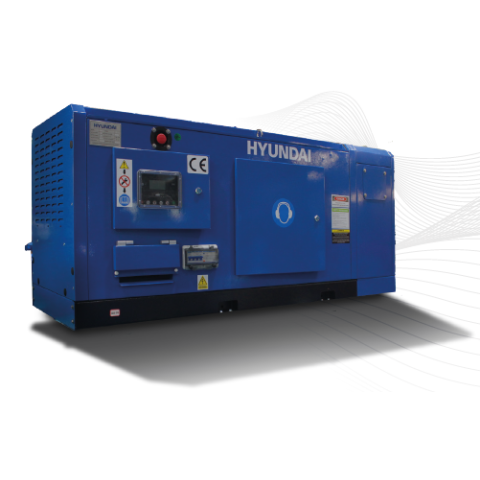

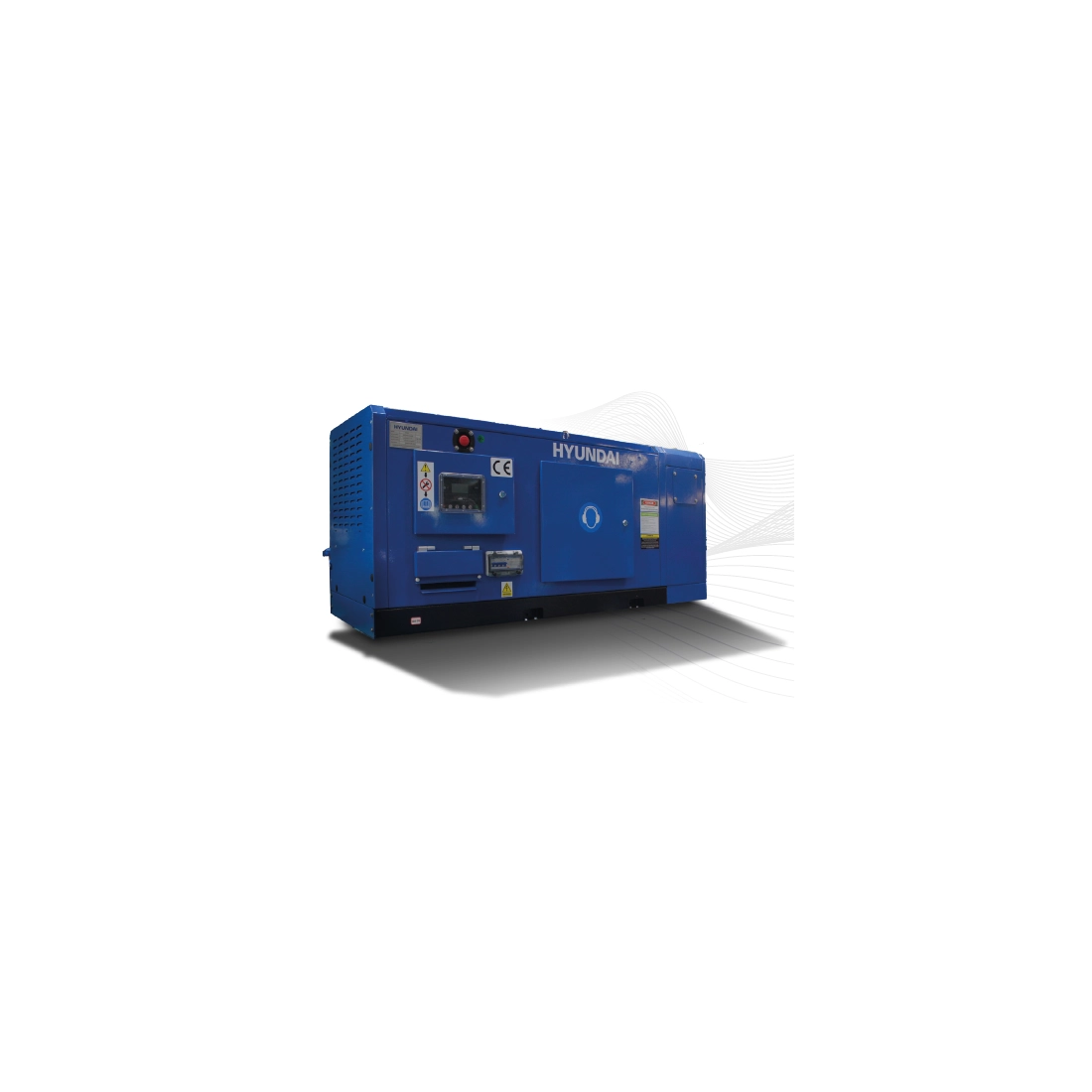

HYUNDAI GENERATOR THREE-PHASE SILENCED 16KW/20KVA STAGE II

HYUNDAI GENERATOR THREE-PHASE SILENCED 16KW/20KVA STAGEII

Generator Hyundai three-phase silenced StageII power reliability in a single solution

The Hyundai three-phase Silenced StageII Generator is the ideal choice for those looking for

reliable and quiet generator Hyundai StageII to power their home, business or construction site.

With a rated output of 16 kW single-phase and 48 kW three-phase, this generator Hyundai StageII can power a wide range of equipment.

Its main features include:

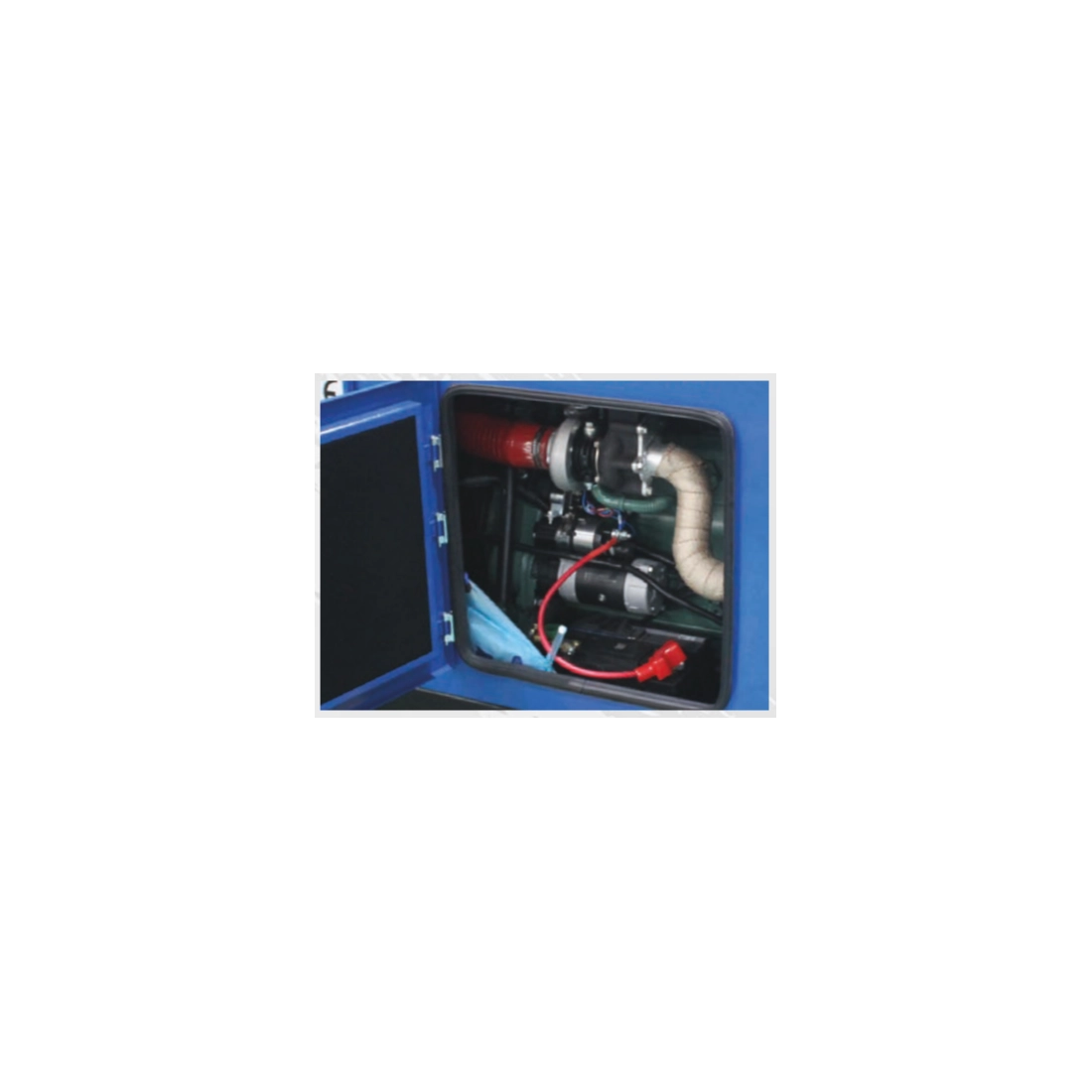

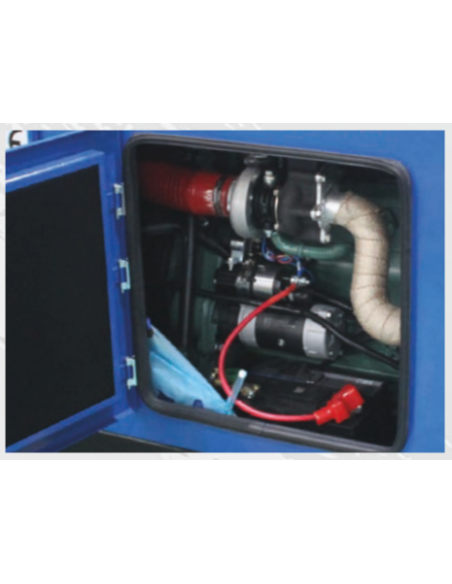

2540 cc Cummins engine: reliable and compliant with StageII anti-pollution regulations.

Direct injection system: ensures high efficiency and low fuel consumption.

LK184E alternator: robust and reliable, providing a pure sine wave ideal for powering sensitive electronic equipment.

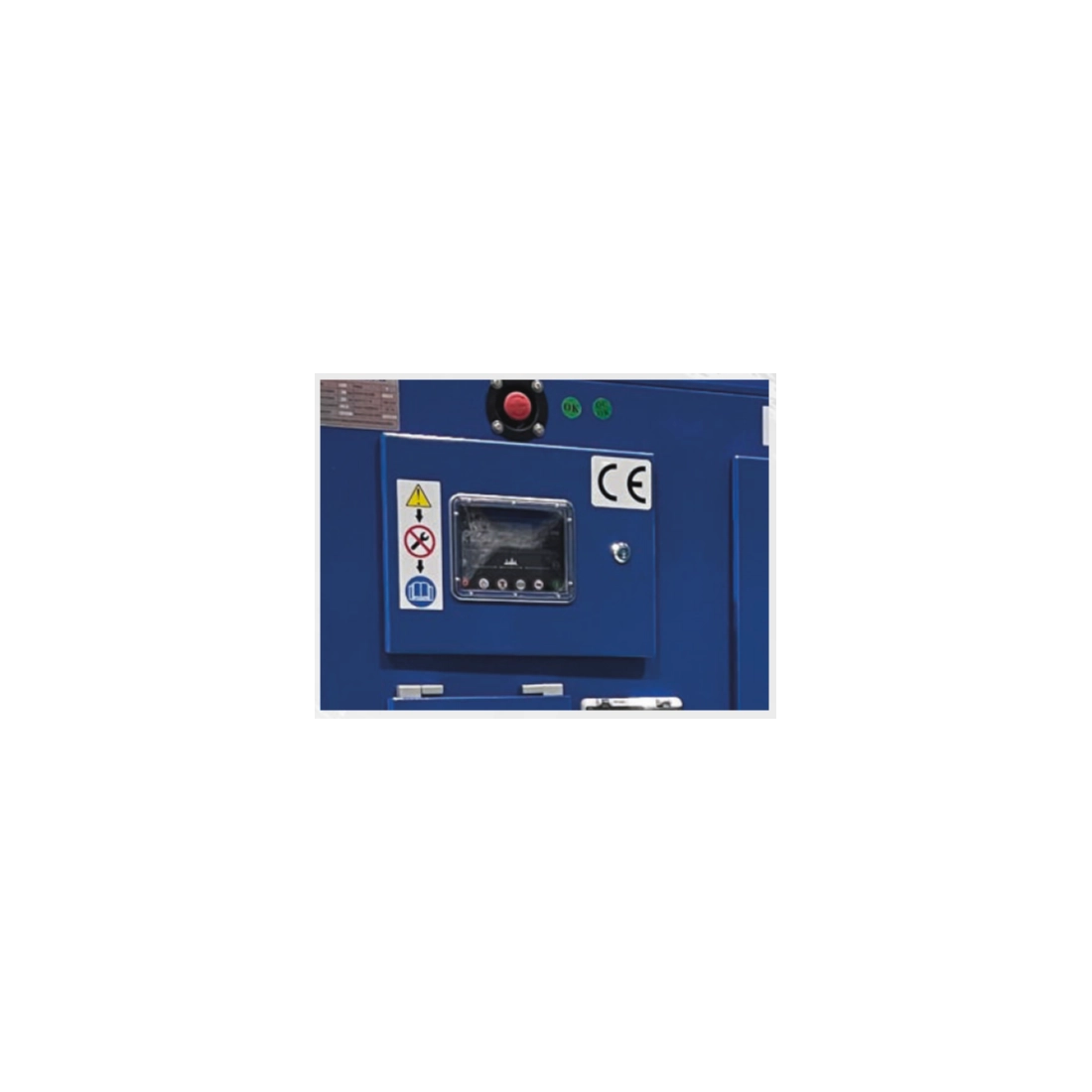

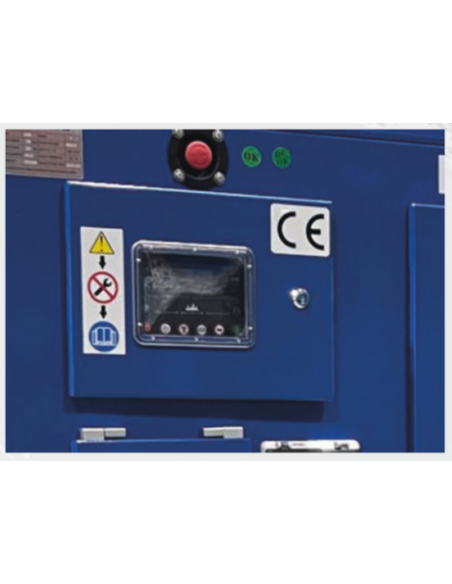

Waterproof" control panel: allows easy and safe monitoring and control of the generator Hyundai StageII.

Emergency safety button: ensures immediate generator Hyundai shutdown in case of need.

Waterproof miniature circuit breaker: protects the generator Hyundai from overloads and short circuits.

Noise level below 75 dB (at 7m): quiet operation that does not disturb neighbours.

IP23 degree of protection: resistant to water and dust.

Large autonomy: 40 litre tank for prolonged operation.

Liquid cooling system: keeps the generator Hyundai at optimum temperatures even under severe working conditions.

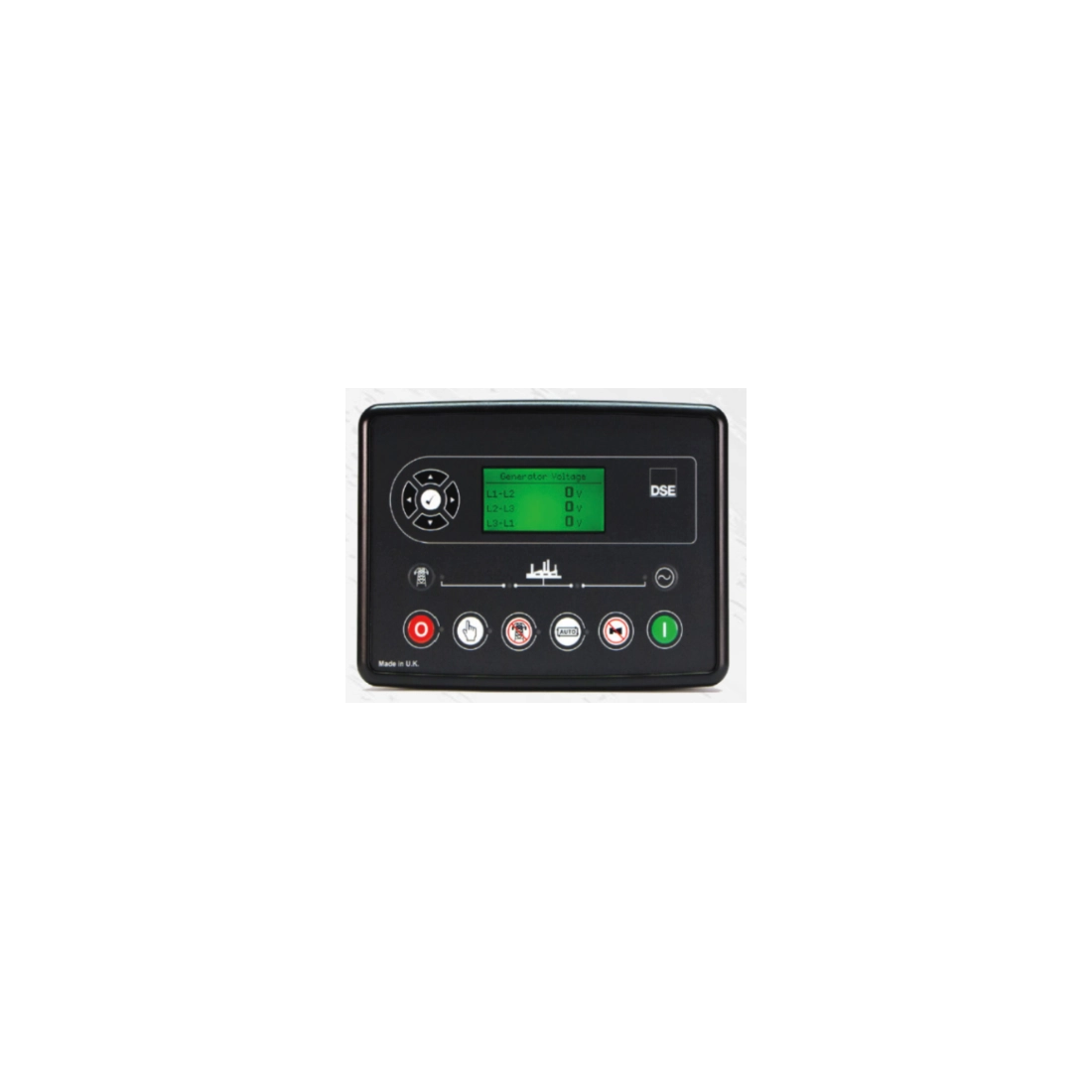

Deepsea DSE6120 control unit: provides comprehensive information on Hyundai generator StageII operation.

Provision for ATS: allows automatic Hyundai generator connection in the event of a power failure.

The Hyundai StageII Three-Phase Silenced Generator is the ideal choice for:

Private homes: provides backup in the event of a blackout or to high-power electrical equipment.

Advanced monitoring: Get valuable information on the operation of your generator

with the Deepsea DSE6120 control unit, which provides comprehensive information.

Extended runtime: The large 40-litre fuel tank provides ample fuel capacity for extended operation,

keeping you fuelled for longer.

Built to last: IP23 protects the generator from water and dust, making it suitable for various environments.

Technical characteristics Hyundai Three-Phase Silenced StageII Generator:

Voltage:230/400 V
Single/three-phase
Three-phase continuous use power: 20 KVA
Nominal power: 5.3/16 Kw
Max MF/TF Power: 5.8/17.5 Kw
Frequency: 50 Hz
Amperage: 29 A
Noise Level: 75 DB (at 7m)
IP Degree of Protection: IP23
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: Fawde
Displacement: 2540 cc
Type of Injection: Direct
No. Cylinders: 4
Engine rpm: 1500/min
Emissions: Stage II
Consumption 100%/75%/50% of load: 3.2/2.4/1.6 l/h
Fuel: Diesel
Tank capacity: 40 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 8 L
Cap. total cooling system 6 L
Alternator Model: Lk184E
Exciter: Brushless - Auto - Excitation
Dimensions L x W x H: 1600 * 740 * 825 mm
Weight: 579 kg
Predisposition: ATS

If you are looking for a product similar to Hyundai Three Phase Generator click HERE.

The image is purely indicative.
