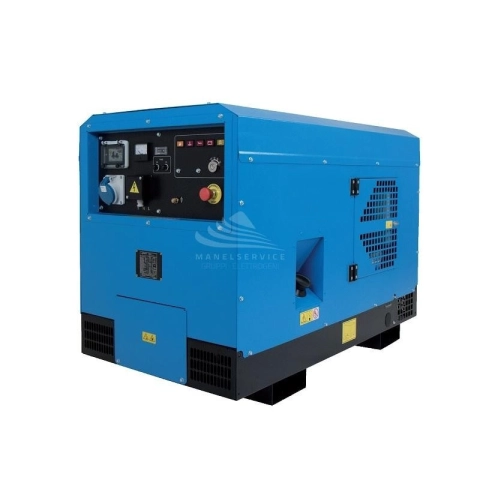

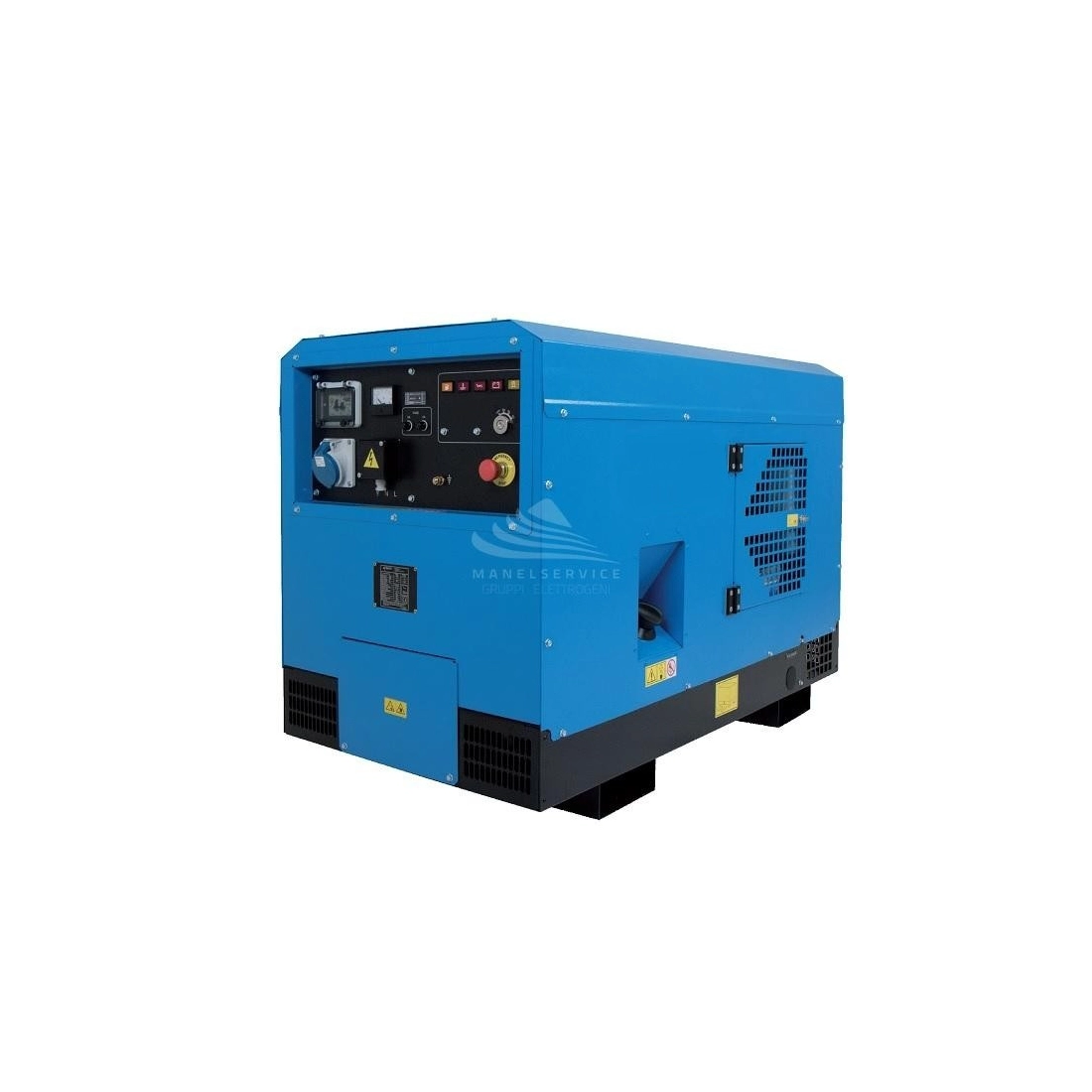

GENERATOR 10 KVA SUPER SILENCED SINGLE PHASE STAGEV

GENERATOR 10 KVA SUPERSILENCED SINGLE PHASE STAGEV

The Generator single phase is equipped with Kubota D1105 STAGEV engine with Diesel power supply, able to deliver a power of 10 KVA.

This generator is equipped with electric start, with 12 V battery and enclosure that lowers noise emissions and makes it supersilenced.

The group is equipped with a soundproof cabin, thanks to which there is a drastic reduction of noise pollution up to 70 dB recorded at a distance of 7 meters, thanks to these features the group can be considered super silenced.

The generator guarantees efficient and silent operation thanks to the Kubota D1105 engine, which can deliver a maximum power of 10KVA.

The generator includes:

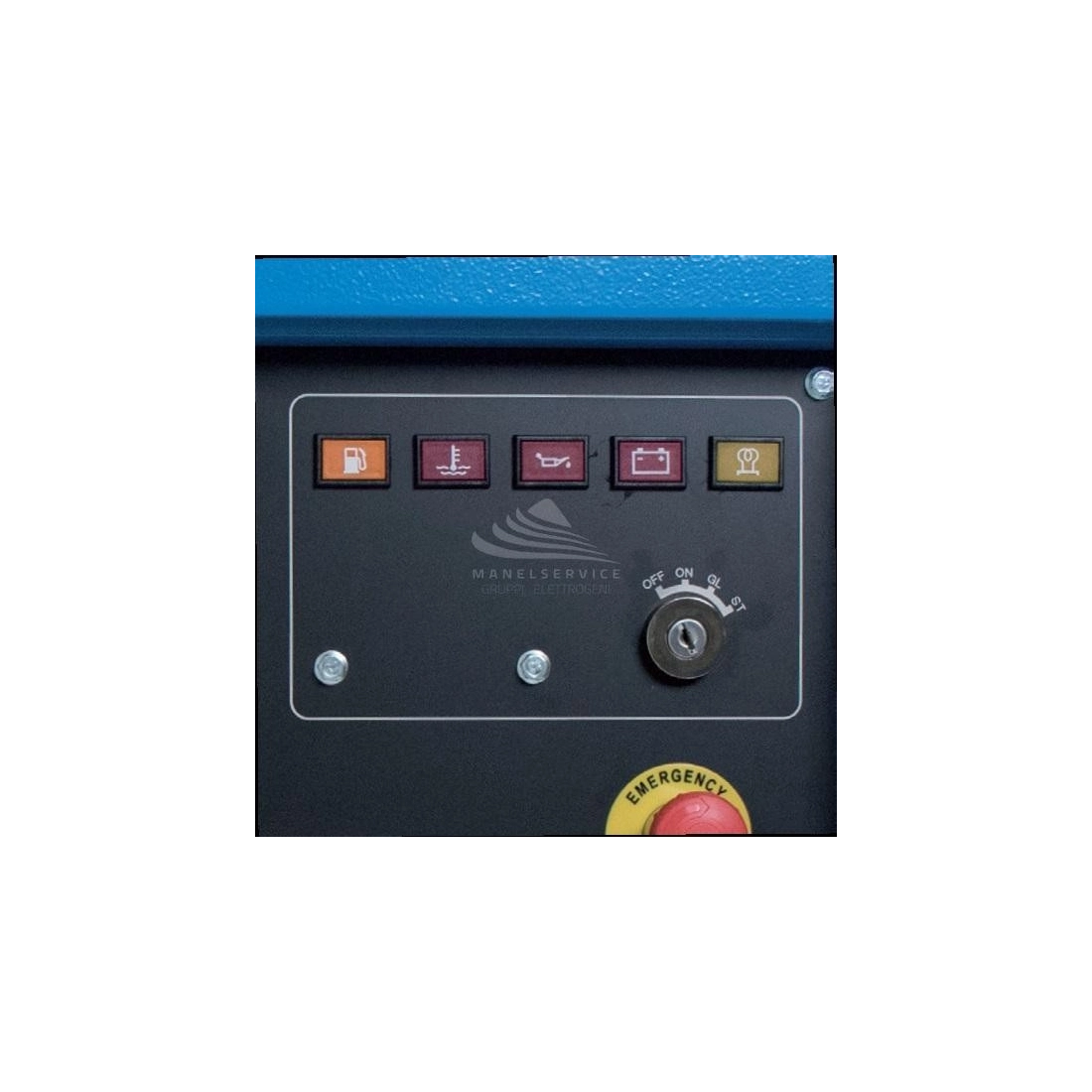

• Automatic engine stop device with warning lights for:
- battery charge failure
- high water temperature
- low fuel level
- low oil pressure
• 1 single-phase EEC 230V - 32A socket
• 1 single-phase 230V socket
• 12 V battery
• Power output protections
• Differential switch
• Voltmeter
• Hour meter

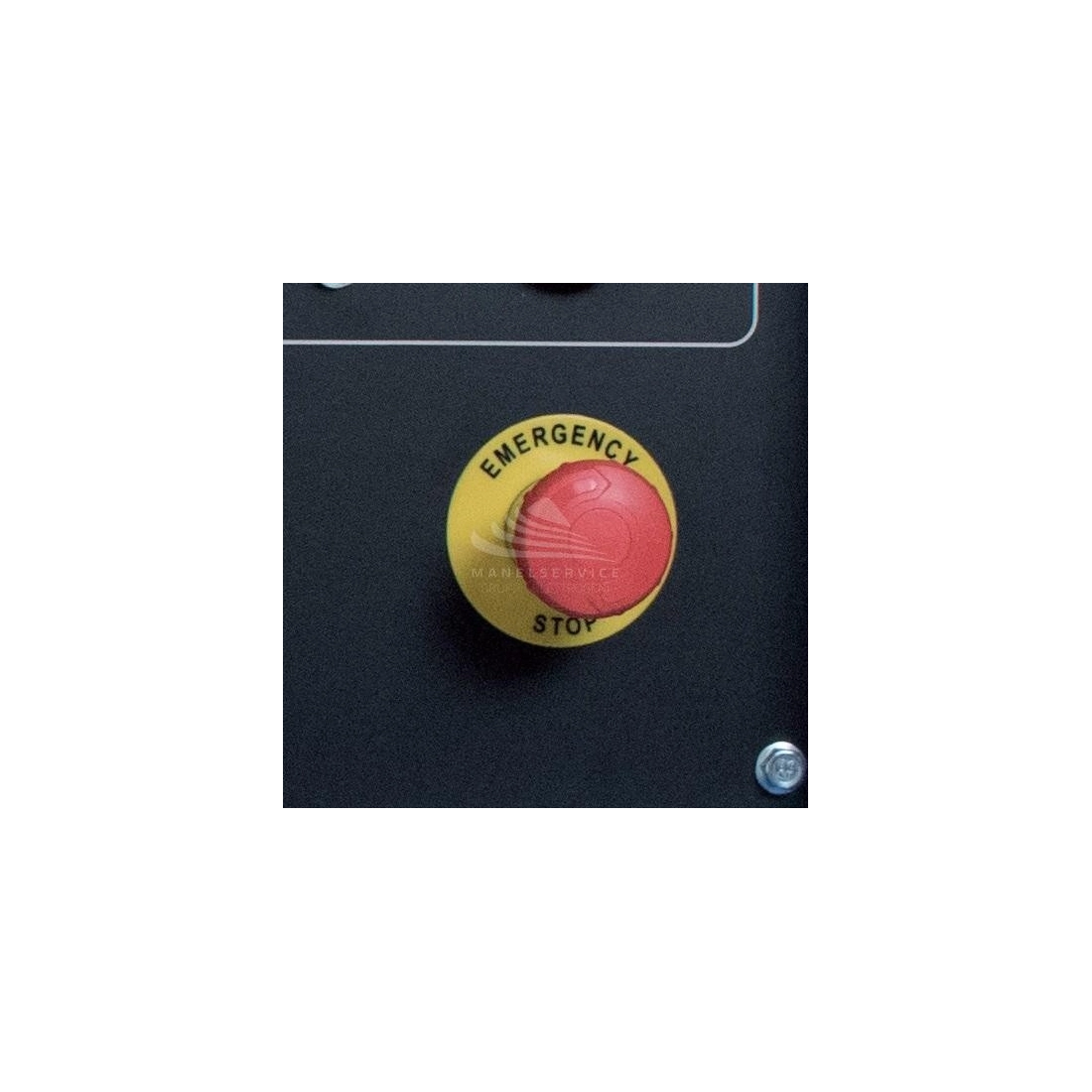

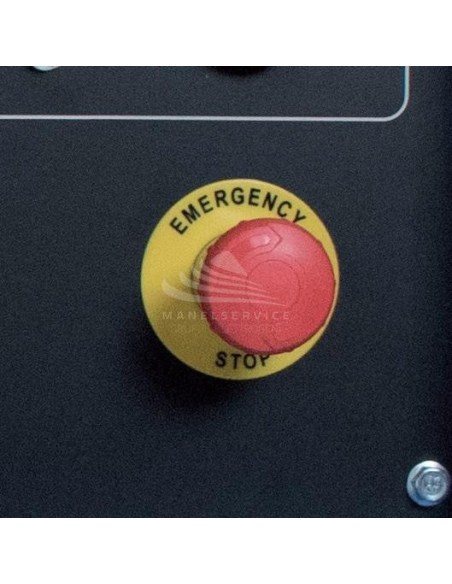

• Emergency stop button
• Fork passage

STAGEV EMISSION STANDARDS

This Generator is equipped with STAGEV "mobile" motorization, as required by the European Regulation 2016/1628. These new motorizations allow to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction in environmental impact of 200% compared to standard motorizations.

TECHNICAL FEATURES

Phase Type: Single-Phase
Maximum Single-Phase Power: 10 KVA / 8 KW
Continuous Single-Phase Power: 9 KVA / 7.2 KW
VAC Voltage: 230 V
Frequency (Hz): 50
Starting Frame: Electric
Engine: Kubota D1105
Emissions Standard: STAGE V
RPM: 1500
Power supply: Diesel
Fuel tank capacity: 40 l
Consumption @ 75 % load: 2 l/h
Autonomy @ 75 % load: 20 h
Acoustic pressure: 95 dB(A)
Length: 1357 mm
Width: 707 mm
Height: 942 mm
Net weight: 350 Kg

Are you looking for a generating set with different technical characteristics? HERE you can find the area dedicated to generating sets of specialized brands.

Images and technical data are not binding.
