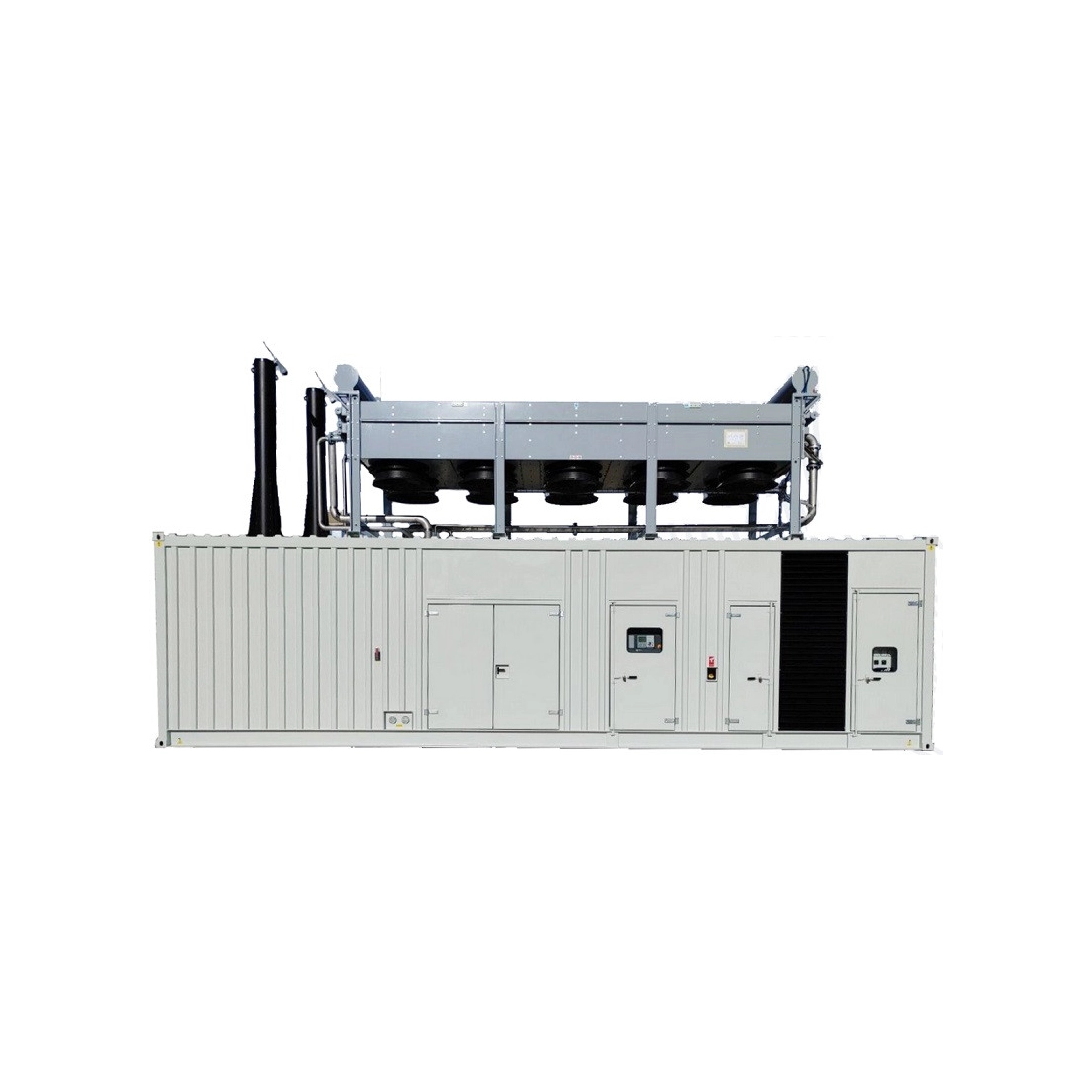

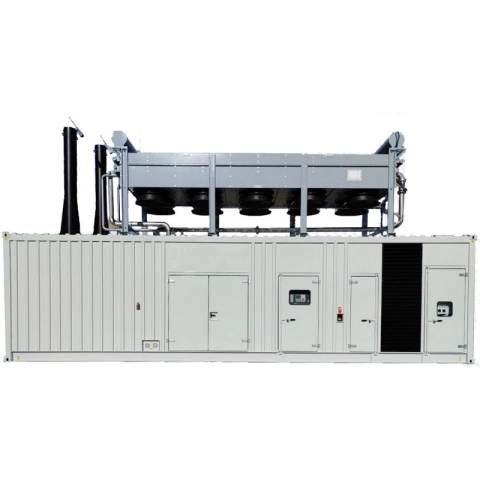

GENERATING SET 3750KVA WITH AUTOMATIC CONTROL PANEL

Reference 3750KVA

Phase type: Three-phase
Maximum three-phase power: 3300 KW / 4125 KVA
Three-phase continuous power: 3000 KW / 3750 KVA
Fuel: Diesel
Voltage: 11000 V
Frequency: 50 Hz
Motor: BAUDOUIN 16M55G4000/5
Engine speed: 1500 rpm
Starting: Electric
Consumption: 556.6 Lt/h at 75% load
Length: 12192 mm
Width: 2438 mm
Height: 6370 mm
Weight: 39080 Kg
Super-silenced

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 3300
Continuous power three phase (KW): 3000
Maximum power three phase (KVA): 4125
Continuous power three phase (KVA): 3750
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 11000
Sockets configuration: Terminal box
Engine: BAUDOUIN 16M55G4000/5
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Electric
Engine capacity (cm³): 64000
Number cylinders: 16
Cooling: Water
Alternator: MARELLI MJH 710 MA4
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 180 x 215
Consumption (L/h): 556,6 at 75% of the load
Acoustic pressure: 75 dB(A) at 7 m
Length (mm): 12192
Width (mm): 2438
Height (mm): 6370
Dry weight (Kg): 39080
Silenced: Yes
Super silenced: Yes
Product type: Generator
Engine manufacturer: Baudouin

Brand

Three-phase 3750KVA generator

Technical characteristics of the generator:
Phase type: Three-phase
Maximum three-phase power: 3300 KW / 4125 KVA
Three-phase continuous power: 3000 KW / 3750 KVA
Fuel: Diesel
Voltage: 11000 V
Frequency: 50 Hz
Motor: BAUDOUIN 16M55G4000/5
Engine speed: 1500 rpm
Starting: Electric
Consumption: 556.6 Lt/h at 75% load
Length: 12192 mm
Width: 2438 mm
Height: 6370 mm
Weight: 39080 Kg
Super-silenced

Images and technical data are not binding.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
