CGM v18YM

CGM v18YM
CGM v18YM
CGM v18YM

Single-phase maximum power: 19.8 KVA
Single-phase continuous use power: 18 KVA
Single-phase maximum power: 15.8 KW
Single-phase continuous use power: 14.4 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: YANMAR 4TNV88-BIB
Starter: Electric
Length: 1800 mm
Width: 850 mm
Height: 1275 mm
Weight: 665 Kg
AVR
Supersilenced

Download Technical data sheet v18YM

Phase
Single phase
Height (mm)
1275
Length (mm)
1800
Starting system
Electric
Width (mm)
850
Engine manufacturer
Yanmar
Engine
YANMAR 4TNV88-BIB
Sockets configuration
Terminal box
Cooling
Water
Maximum power single phase (KW)
15.8
Continuous power single phase (KW)
14.4
Maximum power single phase (KVA)
19.8
Continuous power single phase (KVA)
18
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Emissions Regulations
Stage 5
Engine rpm (rpm)
1500
Speed governor
Mechanical
Engine capacity (cm³)
2190
Number cylinders
4
Alternator
Brushless
Bore x stroke (mm)
88 x 90
Fuel tank capacity (L)
100
Consumption (L/h)
4
Running time (h)
25
Acoustic pressure
69 dB(A) at 7 m
Dry weight (Kg)
665
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional ATS
Voltage regulator
AVR
Brand

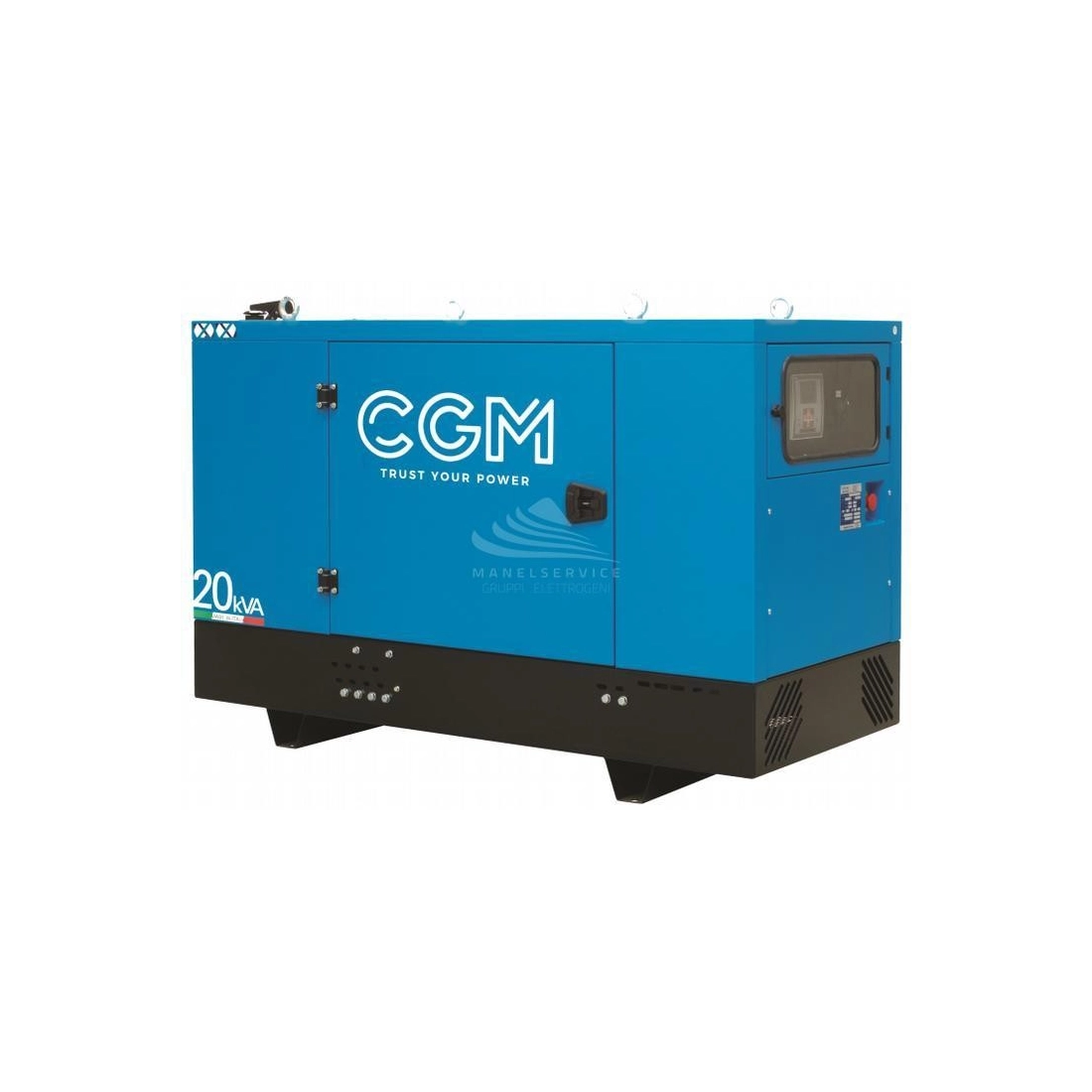

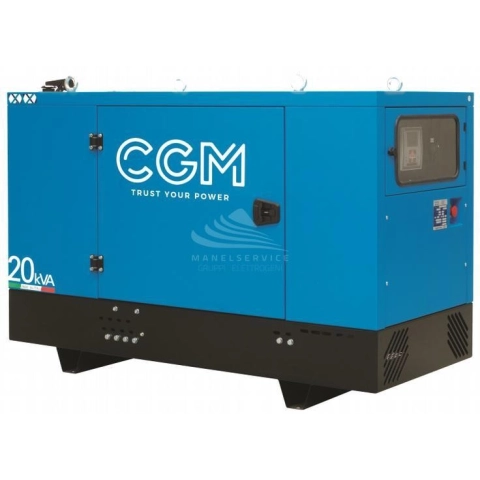

CGM v18YM Single-phase 18 KVA super-silenced generator

CGM v18YM is a single-phase 18 KVA generator set with Yanmar diesel engine. The CGM v18YM genset has an electric starter. The alternator of the CGM v18YM generator set is Linz, Mecc Alte or Stamford and is a 4-pole, single-phase, self-excited, brushless alternator with class H insulation. This alternator is equipped with an AVR voltage regulator, which allows the output voltage to be regulated, making the current "clean" and stable almost like that at home.
The CGM v18YM is built with large access doors to allow easy maintenance (air, oil, fuel filter replacement) as well as a practical drilled base. The CGM v18YM has an enclosure to reduce noise emissions, making it supersilenced.
The CGM v18YM genset with 100-litre tank has a fuel consumption of 4 litres/hour at 75% load.
The 100 litre tank allows the CGM v18YM genset to have almost up to 25 hours of autonomy!
The CGM v18YM is equipped with an automatic switchboard with INTELILITE9.

Technical characteristics of the CGM v18YM LONG RUN generator:
Single-phase maximum power: 19.8 KVA
Single-phase continuous use power: 18 KVA
Single-phase maximum power: 15.8 KW
Single-phase continuous use power: 14.4 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: YANMAR 4TNV88-BIB
Starter: Electric
Length: 1800 mm
Width: 850 mm
Height: 1275 mm
Weight: 665 Kg
AVR
Supersilenced


If you are looking for another product like the CGM v18YM generator set then you can browse our catalog for more terrestrial gensets.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
