CGM 85VO-B200 WITH MANUAL CONTROL PANEL

CGM 85VO-B200 WITH MANUAL CONTROL PANEL

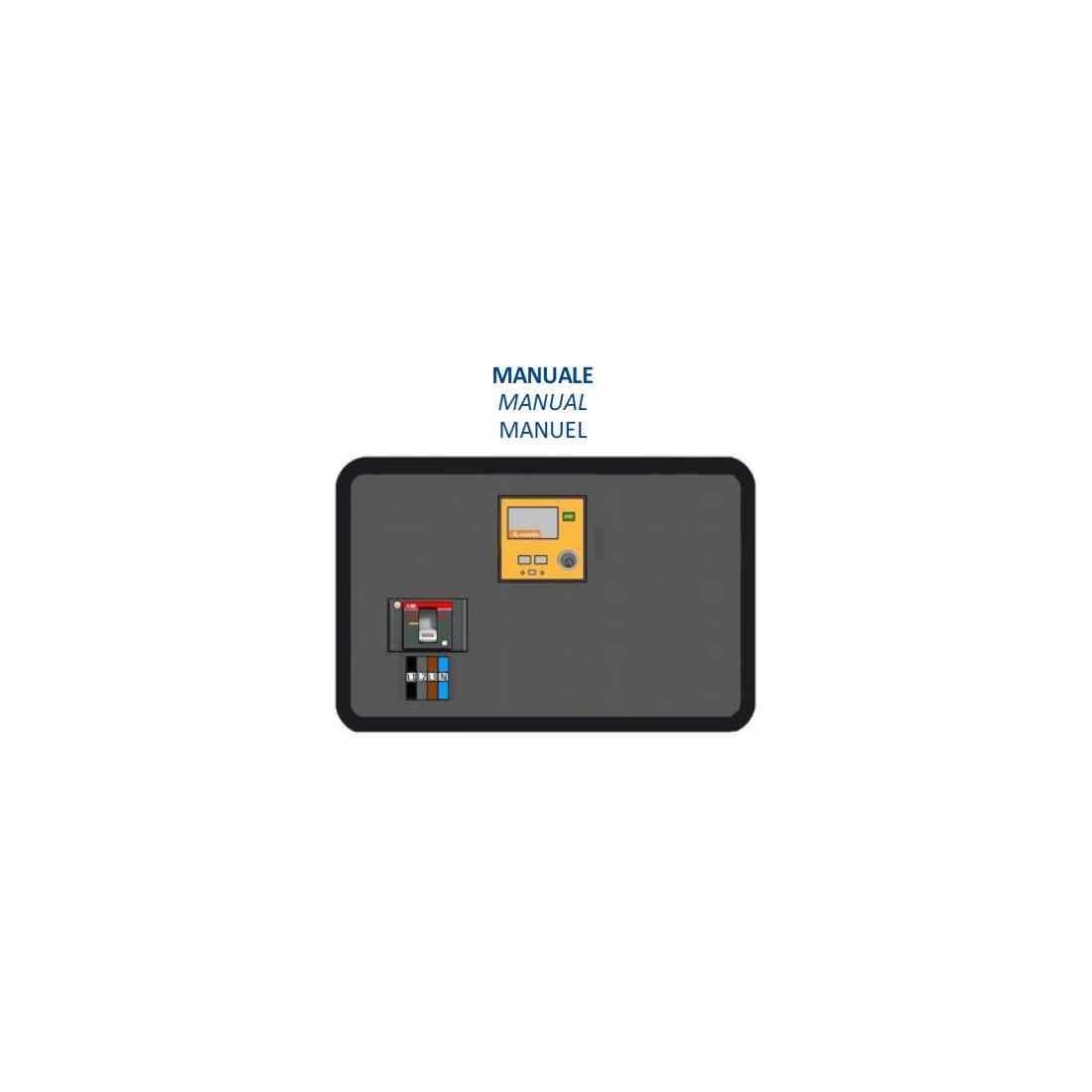

MANUAL CONTROL PANEL

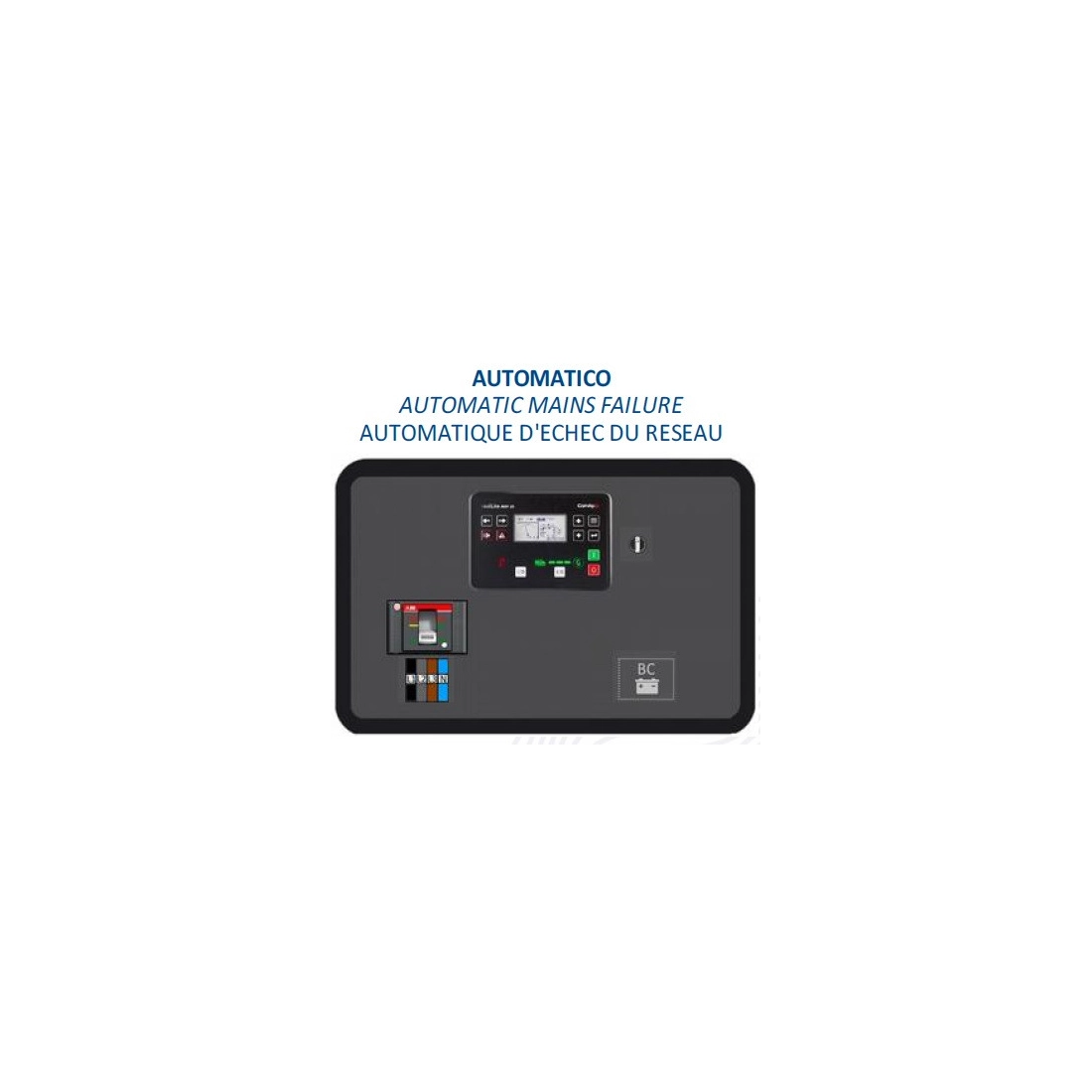

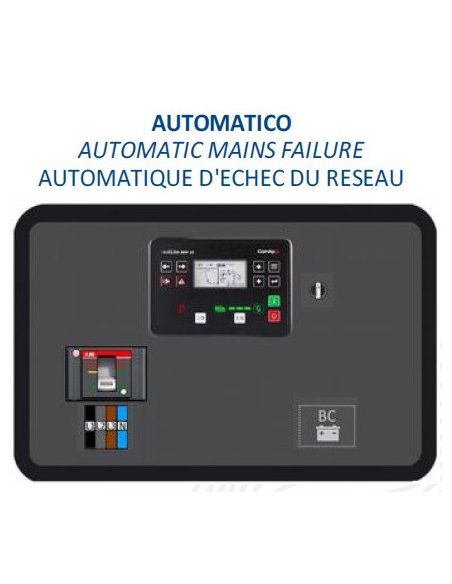

AUTOMATIC CONTROL PANEL
CGM 85VO-B200 WITH MANUAL CONTROL PANEL
MANUAL CONTROL PANEL
AUTOMATIC CONTROL PANEL
CGM 85VO-B200 MANUALE /

OUT OF PRODUCTION

Phase type: Single-phase / Three-phase
Maximum three-phase power: 75.2 KW / 94 KVA
Three-phase continuous power: 68 KW / 85 KVA
Maximum single-phase power: 25.07 KW / 31.33 KVA
Single-phase continuous use power: 22.67 KW / 28.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: VOLVO PENTA TAD 530GE
Engine speed: 1500 rpm
Starting: Electric
Consumption: 16 Lt/h at 75% load
Length: 2400 mm
Width: 1100 mm
Height: 2000 mm
Weight: 1380 Kg
AVR

Download Technical data CGM 85VO

Phase
Single phase / Three phase
Protection degree
IP44
Height (mm)
2000
Length (mm)
2400
Starting system
Electric
Width (mm)
1100
Engine manufacturer
Volvo
Engine
VOLVO PENTA TAD530GE
Poles
4
Sockets configuration
Terminal box
Cooling
Water
Maximum power single phase (KW)
25.07
Continuous power single phase (KW)
22.67
Maximum power single phase (KVA)
31.33
Continuous power single phase (KVA)
28.33
Maximum power three phase (KW)
75.2
Continuous power three phase (KW)
68
Maximum power three phase (KVA)
94
Continuous power three phase (KVA)
85
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stage 2
Engine rpm (rpm)
1500
Speed governor
Mechanical
Engine capacity (cm³)
4760
Number cylinders
4
Alternator
Brushless
Bore x stroke (mm)
108 x 130
Fuel tank capacity (L)
120
Consumption (L/h)
16
Running time (h)
7.5
Dry weight (Kg)
1380
AVR
Yes
Silenced
No
Super silenced
No
Product type
Generator
ATS Switch device
No ATS
Voltage regulator
AVR
Brand

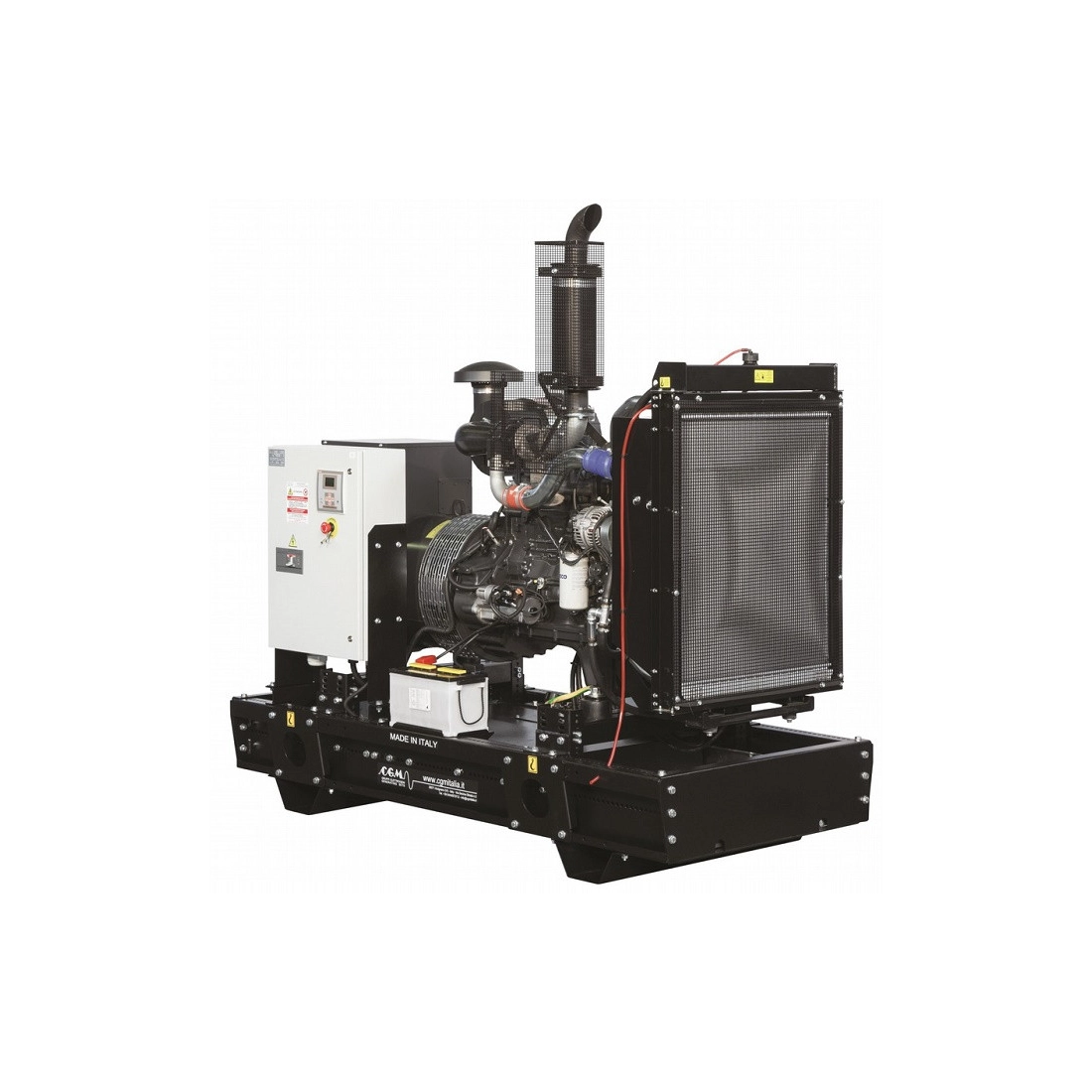

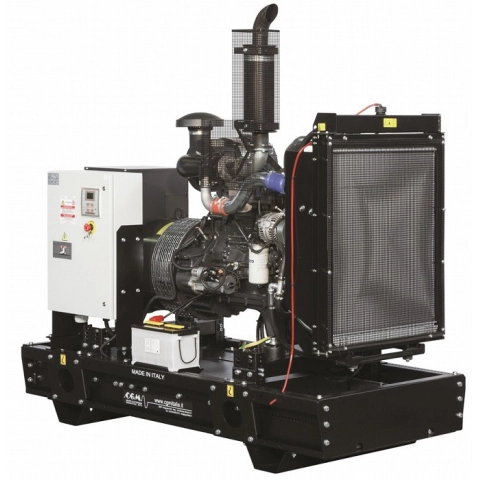

CGM 85VO-B200 Single/three-phase 85KVA generator with manual control panel

The CGM 85VO-B200 is a single/three phase 85KVA generator with a 1500 rpm Volvo diesel engine, compact and easy to use, mounted on a fixed base. This CGM 85VO-B200 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 85VO-B200 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 85VO-B200 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 16 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 85VO-B200 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 85VO-B200 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 75.2 KW / 94 KVA
Three-phase continuous power: 68 KW / 85 KVA
Maximum single-phase power: 25.07 KW / 31.33 KVA
Single-phase continuous use power: 22.67 KW / 28.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: VOLVO PENTA TAD 530GE
Engine speed: 1500 rpm
Starting: Electric
Consumption: 16 Lt/h at 75% load
Length: 2400 mm
Width: 1100 mm
Height: 2000 mm
Weight: 1380 Kg
AVR

If you are looking for a product like the CGM 85VO-B200 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
