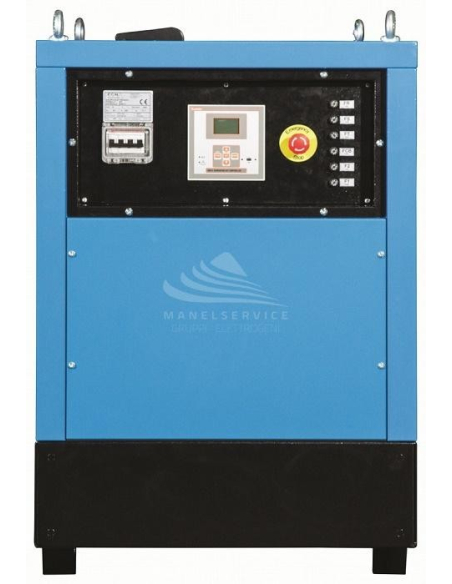

CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE

CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 25NG GAS METANO - APERTO CON CENTRALINA MANUALE
CGM 30DW COFANATO MANUALE /

Download Technical data CGM 30DW

Phase
Single phase / Three phase
Height (mm)
1050
Length (mm)
1600
Starting system
Electric
Width (mm)
700
Engine manufacturer
Lombardini
Engine
Lombardini LDW2204
Poles
2
Sockets configuration
1 x 400V 63A 5P CEE - 1 x 230V 16A 3P CEE
Cooling
Water
Maximum power three phase (KW)
26.4
Continuous power three phase (KW)
24
Maximum power three phase (KVA)
33
Continuous power three phase (KVA)
30
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Emissions Regulations
Stationary Use
Engine rpm (rpm)
3000
Speed governor
Electronic
Engine capacity (cm³)
2199
Number cylinders
4
Cylinders' position
In line
Alternator
Linz, with brushes
Bore x stroke (mm)
88 x 90.4
Fuel tank capacity (L)
50
Consumption (L/h)
8
Running time (h)
6.3
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
500
Silenced
Yes
Super silenced
Yes
ATS Switch device
No ATS
Voltage regulator
Compound
Brand

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
