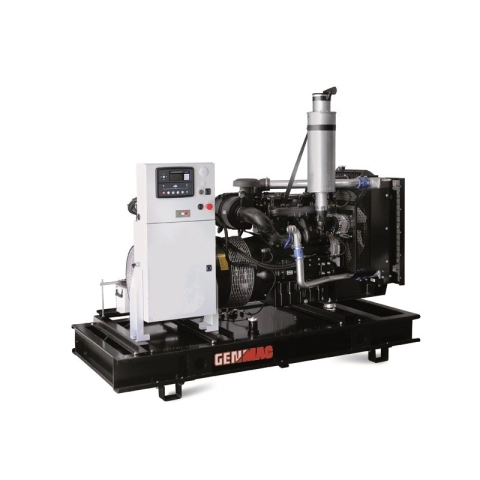

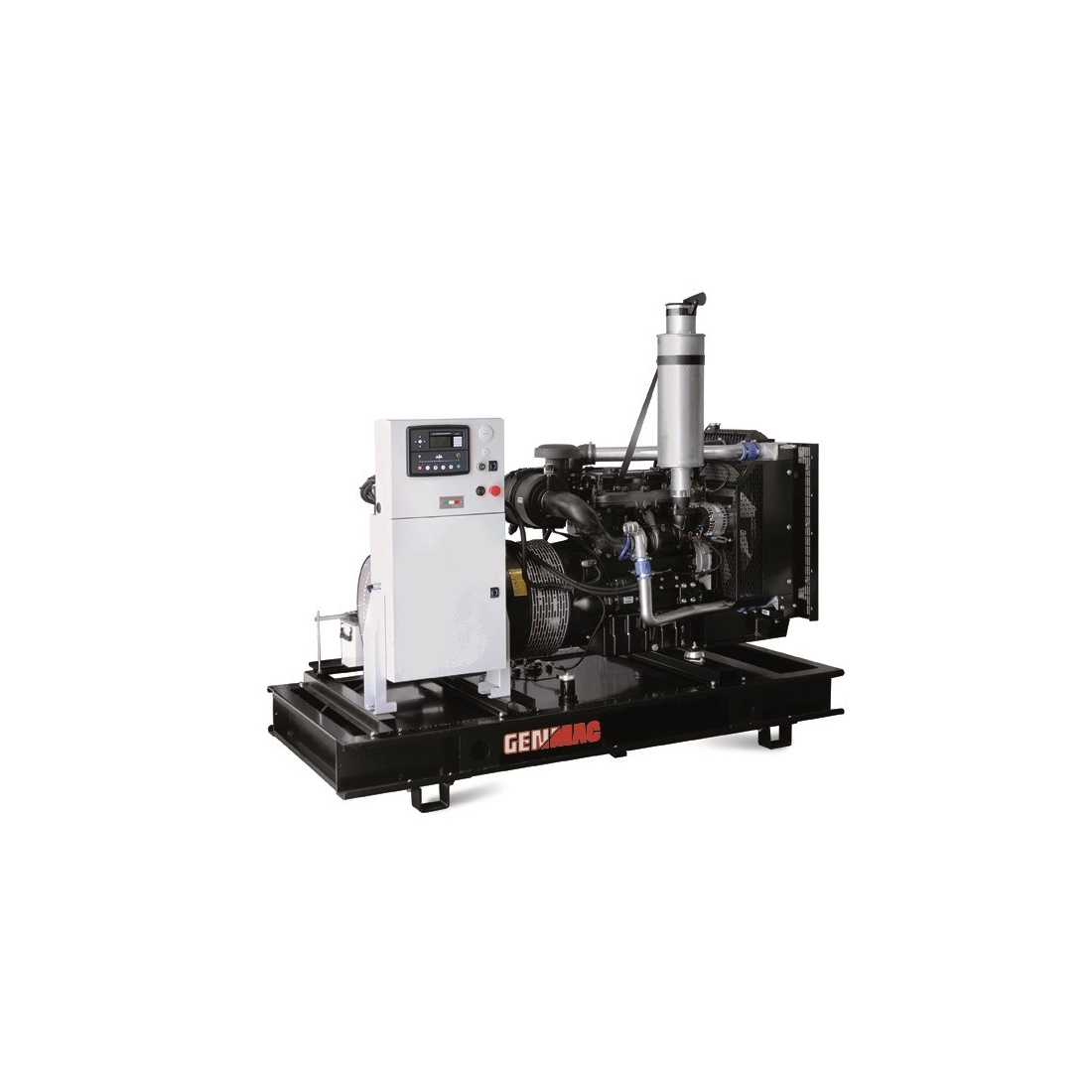

GENMAC GAMMA G100I0

Name: GENMAC GAMMA G100I0
Brand: Manelservice
SKU: GENMAC GAMMA G100I0

Reference GAMMA G100I0

Fuel: Diesel
Phase Type: Three-phase
Maximum power (L.P.T.): 110 KVA - 88 KW
Continuous power (P.R.P.): 100 KVA - 80 KW
ISO8528-1
Voltage: 400 V
Frequency: 50 Hz
Cosphs: 0.8
Cooling: Liquid
Radiator: Tropicalized
Iveco engine NEF45-TM2A
1500 RPM
Number of cylinders: 4
Cubic Capacity: 4500 cm3
Tank: 270 Lt.
Autonomy: 18 h at 75% of load
Consumption: 15 Lt. per hour at 57% of the load
Dimensions: 2250x1020x1161 mm
Weight: 1330 Kg
Panel: QT2A-4520 AMF IP65
Thermal-magnetic circuit breaker
Emergency stop button and siren
Terminal block for connection Automatic Framework ATS-C or ATS-M
Door Reading Can Bus
Battery Charger
On/Off switch
Automatic control unit DSE4520 AMF (see data sheet for further details)

Download Technical Data G100I0

Product Details
Description

Phase: Three phase
Maximum power three phase (KW): 88
Continuous power three phase (KW): 80
Maximum power three phase (KVA): 110
Continuous power three phase (KVA): 100
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: NEF45TM2A
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 4500
Number cylinders: 4
Oil capacity (L): 12.8
Cooling: Water
Alternator: Synchronous, self-excited
Poles: 4
Fuel tank capacity (L): 270
Consumption (L/h): 15 at 75% of the load
Running time (h): 18 at 75% of the load / 13.5 at 100% of the load
Length (mm): 2250
Width (mm): 1020
Height (mm): 1611
Dry weight (Kg): 1330
Silenced: No
Control unit: Automatica AMF DSE4520
ATS Switch device: Optional ATS
Type of alternator: Constant Speed
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Brand

OUT OF PRODUCTION

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
