PRAMAC LIFTER HAND PALLET TRUCK GS25S4 1500x525 DOUBLE ROLLER

Name: PRAMAC LIFTER HAND PALLET TRUCK GS25S4 1500x525 DOUBLE ROLLER
Brand: LIFTER
SKU: TEB91AVY100
Price: 1004.3 EUR
Availability: InStock

Reference TEB91AVY100

PRAMAC GS25S4 - Hand pallet truck with a start and exit roller and with a load capacity up to 2500 Kg

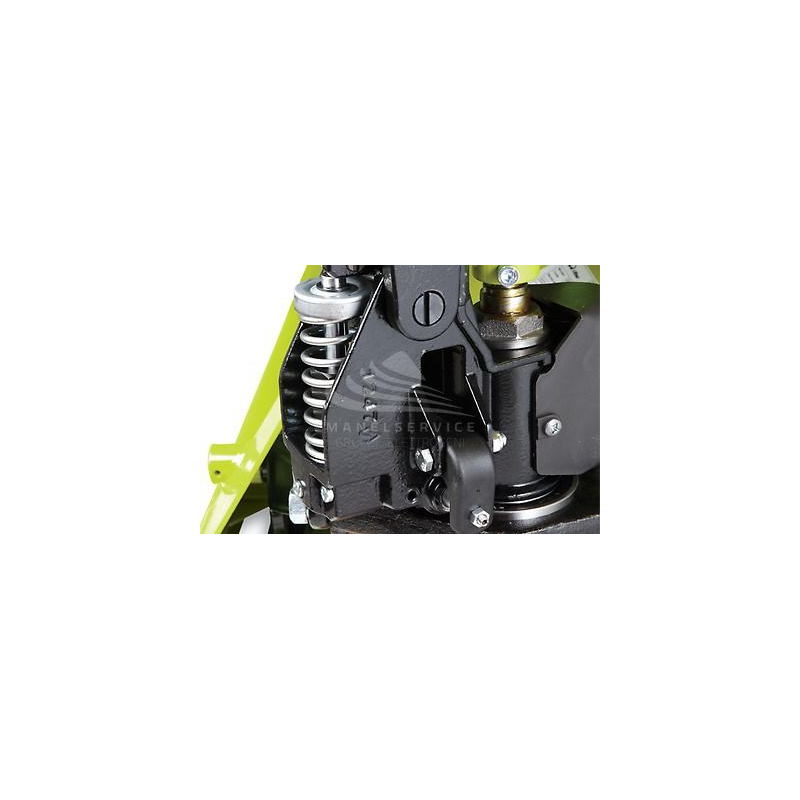

PRAMAC GS25S4 - The maximum pressure valve automatically stops the forks when is exceeded maximum load capacity

PRAMAC GS25S4 - Technical drawing with top view

Drive: Manual
Operator type: Pedestrian
Load capacity: 2500 Kg
Quantity rear wheels: 4
Lift height: 115 mm
Overall lenght: 1900 mm
Overall width: 525 mm
Width fork: 150 mm
Lenght fork: 1500 mm
Distance between fork arms: 525 mm
Aisle width: 2135 mm
Turning radius: 1717 mm

List price

1,434.72 € tax incl.

1,176.00 € tax excl.

Discounted Price

1,004.30 € tax incl.

823.20 € tax excl.

Shipping from 61.00 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference TEB91AVY100

Data sheet

Drive: Manual
Operator type: Pedestrian
Load capacity (Kg): 2500
Load centre distance (mm): 750
Load axle to end forks (mm): 1282
Wheel base (mm): 1542
Service weight (Kg): 113
Axle load, laden rear (Kg): 1685
Axle load, laden front (Kg): 928
Axle load, unladen front (Kg): 65
Axle load, unladen rear (Kg): 48
Tyres: front wheels: POLY.I. / NYLON
Tyres: rear wheels: NYLON
Diameter steering wheels (mm): 200
Width steering wheels (mm): 55
Diameter load rollers (mm): 82
Width load rollers (mm): 60
Quantity rear wheels: 4
Rear balancing axle: No
Tread front (mm): 155
Tread rear (mm): 375
Lift height (mm): 115
Height of tiller in drive position max (mm): 1160
Height lowered (mm): 85
Overall lenght (mm): 1900
Lenght to face of forks (mm): 400
Overall width (mm): 525
Thickness fork (mm): 50
Width fork (mm): 150
Lenght fork (mm): 1500
Distance between fork arms (mm): 525
Ground clearance at centre of wheelbase (mm): 35
Aisle width (mm): 2135
Turning radius (mm): 1717
Lifting speed laden (strokes): 13
Lifting speed unladen (strokes): 13
Weigher: No

Specific References

Condition New

GS series is a suitable practical solution meeting all the needs of manual handling.
The GS PRO pallet truck is equipped as a standard with a start and exit roller and a more ergonomic handle.

Maximum pressure valve
When the maximum load capacity is exceeded, oil pressure exceeds its maximum limit and the valve automatically locks the forks. Thus possible structural damage is avoided.

Varnishing
Following an appropriate conditioning operation the frame is varnished with polyester powder at a temperature of 250° to guarantee maximum resistance to wear and atmospheric agents.

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
