      Type of propulsion: Manual
      Lifting: Manual
      Drive system: Accompaniment
      Front tires: POLY.I./NYLON
      Rear tires: POLY.I.
      Scale type: DFW 06 XPCA
      Autonomy: 50 h
      Full scale accuracy: 0.05%
      Battery voltage: 6 V
      Nominal battery capacity: 4 Ah
      Track width Front: 155 mm
      Rear track: 375 mm
      Lift height: 115 mm
      Drawbar height in driving position max: 1185 mm
      Drawbar height in driving position min : 710 mm
      Fork height lowered: 90 mm
      Overall length: 1596 mm
      Drive unit length: 411mm
      Overall width: 555 mm
      Fork dimensions - Thickness: 60 mm
      Fork dimensions - Width: 180 mm
      Fork length: 1185 mm
      Fork width: 555 mm
      Clearance at mid-step: 30 mm
      Storage aisle for pallet 800x1200: 2085 mm
      Turning radius: 1426 mm
      Capacity: 2500 kg
      Mass in service with battery: 117 Kg

      List price
      1,903.20 € tax incl.
      1,560.00 € tax excl.
      Discounted Price
      1,903.20 € tax incl.
      1,560.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: PRAMAC LIFTER GS/P 25 Digital Weigh Pallet Truck 1185x555

      PERSONAL DATA


      Ask a question
      Product: PRAMAC LIFTER GS/P 25 Digital Weigh Pallet Truck 1185x555
      Offer on letterhead
      Product: PRAMAC LIFTER GS/P 25 Digital Weigh Pallet Truck 1185x555
      LIFTER
      TJB530VY100

      Data sheet

      Drive
      Manual
      Operator type
      Pedestrian
      Load capacity (Kg)
      2500
      Load centre distance (mm)
      600
      Load axle to end forks (mm)
      975
      Wheel base (mm)
      1250
      Service weight (Kg)
      117
      Axle load, laden rear (Kg)
      1836
      Axle load, laden front (Kg)
      781
      Axle load, unladen front (Kg)
      71
      Axle load, unladen rear (Kg)
      46
      Tyres: front wheels
      POLY.I. / NYLON
      Tyres: rear wheels
      POLY.I.
      Diameter steering wheels (mm)
      200
      Width steering wheels (mm)
      55
      Diameter load rollers (mm)
      82
      Width load rollers (mm)
      60
      Quantity rear wheels
      2
      Rear balancing axle
      No
      Tread front (mm)
      155
      Tread rear (mm)
      375
      Lift height (mm)
      115
      Height of tiller in drive position max (mm)
      1185
      Height lowered (mm)
      90
      Overall lenght (mm)
      1596
      Lenght to face of forks (mm)
      411
      Overall width (mm)
      555
      Thickness fork (mm)
      60
      Width fork (mm)
      180
      Lenght fork (mm)
      1185
      Distance between fork arms (mm)
      555
      Ground clearance at centre of wheelbase (mm)
      30
      Aisle width (mm)
      2085
      Turning radius (mm)
      1426
      Lifting speed laden (strokes)
      12
      Lifting speed unladen (strokes)
      12
      Weigher
      Yes

      Specific References

      New

      PRAMAC LIFTER GS/P 25 PALLET TRUCK 1185x555 WITH DIGITAL WEIGH

      The PRAMAC LIFTER GS/P 25 Digital Weigh Pallet Truck 1185x555 is an innovative and sturdy solution for simultaneously weighing and transporting your goods, streamlining storage and shipping tasks to be faster, simpler, and more efficient. This PRAMAC LIFTER GS/P 25 can be outfitted with additional features like a printer or USB interface. Thanks to its four load cells, it achieves exceptional precision and functionality, making it perfect for verifying incoming merchandise, preventing overloads, and calculating shipping weights.

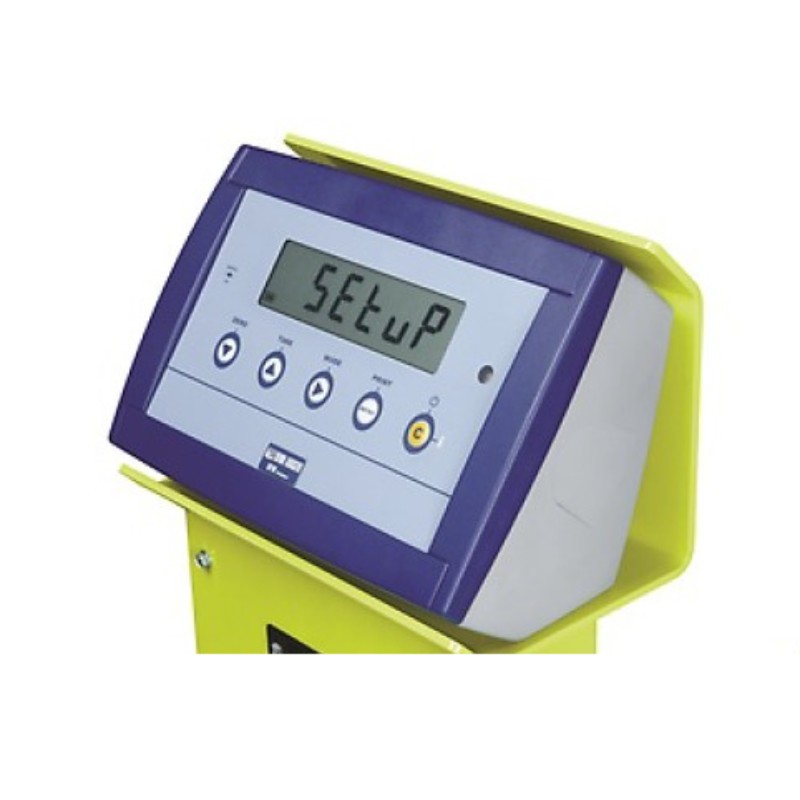

      Featuring a large 6-digit LCD display, it delivers accurate and precise weight measurements in both kilograms and pounds. The software supports net, gross, tare weighing, unit counting, and the summation and counting of multiple loads. Weight readings are presented in 1 kg/lb increments with an accuracy of 0.05%.

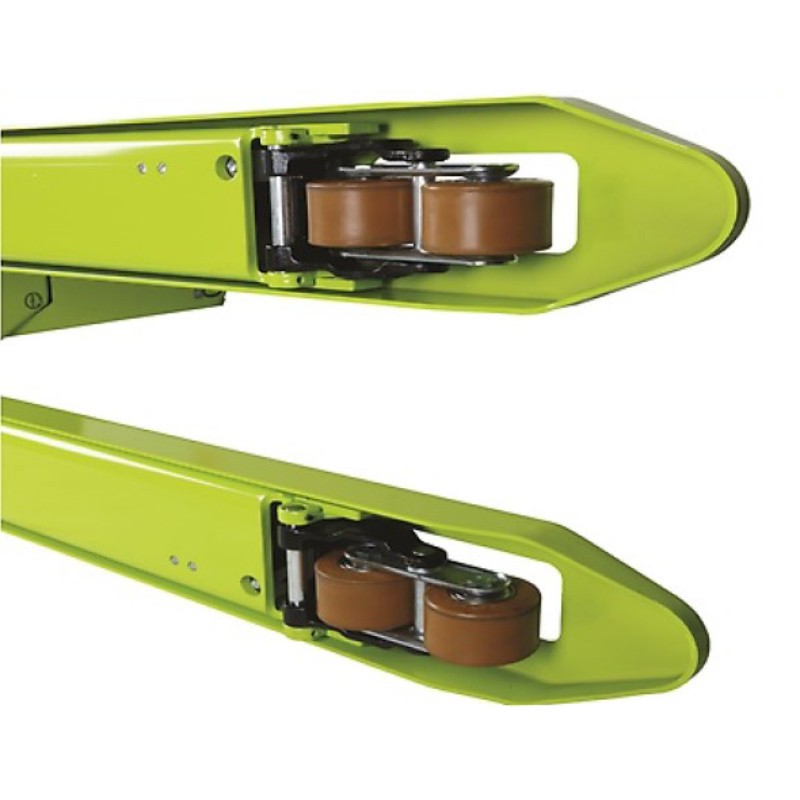

      Designed with a robust double frame, it includes a lower fork and an overlying counter fork, each housing two load cells. This design ensures even load distribution and maintains high accuracy in weight measurement, even when facing impacts or unbalanced loads.

      The PRAMAC LIFTER GS/P 25 pallet truck comes complete with a rechargeable battery and charger, offering up to 50 hours of operational autonomy.

      Technical Features of the PRAMAC LIFTER GS/P 25:

      Propulsion Type: Manual
      Lifting Mechanism: Manual
      Drive System: Push Assistance
      Front Tires: POLY.I./NYLON
      Rear Tires: POLY.I.
      Scale Model: DFW 06 XPCA
      Battery Life: 50 hours
      Scale Accuracy: 0.05%
      Battery Voltage: 6 V
      Battery Capacity: 4 Ah
      Front Track Width: 155 mm
      Rear Track Width: 375 mm
      Lift Height: 115 mm
      Drawbar Height (max): 1185 mm
      Drawbar Height (min): 710 mm
      Fork Height (lowered): 90 mm
      Overall Length: 1596 mm
      Drive Unit Length: 411 mm
      Overall Width: 555 mm
      Fork Dimensions (Thickness): 60 mm
      Fork Dimensions (Width): 180 mm
      Fork Length: 1185 mm
      Fork Width: 555 mm
      Mid-Step Clearance: 30 mm
      Pallet Storage Aisle (800x1200): 2085 mm
      Turning Radius: 1426 mm
      Capacity: 2500 kg
      Service Weight with Battery: 117 Kg


      This comprehensive design and technical specification highlight the PRAMAC LIFTER GS/P 25 PALLET TRUCK 1185x555 is capability to meet industrial needs for precise and efficient material handling and weighing.


      Are you looking for a pallet truck with different technical characteristics? HERE you can find the area dedicated to PRAMAC LIFTER pallet trucks or other specialized brands.

      Pictures and technical data are not binding.


      ""
