PRAMAC LIFTER SCALE TRUCK PX25

Name: PRAMAC LIFTER SCALE TRUCK PX25
Brand: LIFTER
SKU: G6B330UV100
Price: 1310 EUR
Availability: InStock

Reference G6B330UV100

Drive: Manual
Operator type: Pedestrian
Load capacity: 2000 Kg
Quantity rear wheels: 4
Quantity front wheels: 2
Lift height: 115 mm
Overall lenght: 1596 mm
Overall width: 555 mm
Width fork: 180 mm
Lenght fork: 1185 mm
Distance between fork arms: 555 mm
Aisle width: 1851 mm
Turning radius: 1426 mm

List price

2,577.86 € tax incl.

2,113.00 € tax excl.

Discounted Price

1,598.20 € tax incl.

1,310.00 € tax excl.

Shipping from 135.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: PRAMAC LIFTER SCALE TRUCK PX25

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: PRAMAC LIFTER SCALE TRUCK PX25

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: PRAMAC LIFTER SCALE TRUCK PX25

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference G6B330UV100

Data sheet

Drive: Manual
Operator type: Pedestrian
Load capacity (Kg): 2500
Load centre distance (mm): 600
Load axle to end forks (mm): 975
Wheel base (mm): 1250
Service weight (Kg): 113
Axle load, laden rear (Kg): 1830
Axle load, laden front (Kg): 783
Axle load, unladen front (Kg): 71
Axle load, unladen rear (Kg): 42
Tyres: front wheels: POLY.C
Tyres: rear wheels: POLY.I.
Diameter steering wheels (mm): 200
Width steering wheels (mm): 55
Diameter load rollers (mm): 82
Width load rollers (mm): 60
Quantity rear wheels: 4
Quantity front wheels: 2
Rear balancing axle: No
Tread front (mm): 155
Tread rear (mm): 375
Lift height (mm): 115
Height of tiller in drive position max (mm): 1160
Height of tiller in drive position min (mm): 690
Height lowered (mm): 90
Overall lenght (mm): 1596
Lenght to face of forks (mm): 411
Overall width (mm): 555
Thickness fork (mm): 60
Width fork (mm): 180
Lenght fork (mm): 1185
Distance between fork arms (mm): 555
Ground clearance at centre of wheelbase (mm): 30
Aisle width (mm): 1851
Turning radius (mm): 1426
Lifting speed laden (strokes): 13
Lifting speed unladen (strokes): 13
Lowering speed laden (m/s): 0.05
Lowering speed unladen (m/s): 0.02
Weigher: Yes

Specific References

Condition New

The scale trucks range are equipped with a functional and precise weighing device with several operating options, suitable for lifting heavy loads.

Display

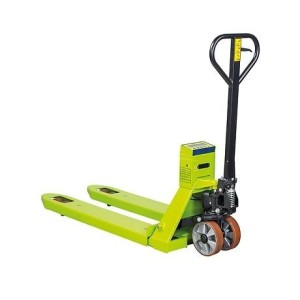

The PX20 pallet truck is a simple, economical and robust tool to be used for the weighing of transported loads. Its large-sized LCD display allows for easy reading of weight and the setting of tare simply and immediately.

Frame structure
The structure is made up of a double frame and a lower fork on which a counter fork is placed; both forks house four load cells that allow for a uniform load distribution, thus keeping weighing precision even in case of collision and unbalanced load.

The images are purely indicative.
