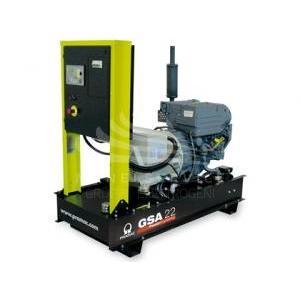

PRAMAC GSA42D

Reference SG400TDAY00 /

OUT OF PRODUCTION

Potenza Consumo uso continuativo: 41 kva
Tipo carburante: Diesel
Capacità serbatoio carburante: 91 LT
Autonomia: 12.5 h al 75% del carico
Dimensioni: L 180 cm x L 75 cm x A 171 cm
Peso a secco: 776 Kg

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SG400TDAY00 /

Data sheet

Phase: Three phase
Maximum power three phase (KW): 33.66
Continuous power three phase (KW): 32.78
Maximum power three phase (KVA): 42.08
Continuous power three phase (KVA): 40.98
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: Deutz AG F4L912, naturally aspirated
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3110
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 11
Cooling: Air
Alternator: Mecc Alte ECO/P32-3S/4, brushless
Poles: 4
Fuel tank capacity (L): 91
Consumption (L/h): 7.3 at 75% of the load / 10 at 100% of the load
Running time (h): 12.5 at 75% of the load / 9.1 at 100% of the load
Length (mm): 1800
Width (mm): 750
Height (mm): 1710
Dry weight (Kg): 776
Inverter: No
AVR: Yes
Compound: No
Silenced: No
Super silenced: No

Specific References

Condition New

Motore Diesel. Raffreddamento ad aria. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
