TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA
      TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA
      TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA
      TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA

      TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA

      LD 7500 TELX - COMP

      Maximum three-phase power: 5.9 KW
      Maximum three-phase power: 7.3 KVA
      Fuel: Diesel
      Voltage: 400V
      Engine: Kohler 15LD440
      Start: Electric
      Length: 750 mm
      Width: 560 mm
      Height: 620 mm
      Weight: 121 Kg

      STANDARD EQUIPMENT

      Protection frame

      Lifting eye

      Exhaust gas silencer

      Air filter

      Fuel tank 20 lt

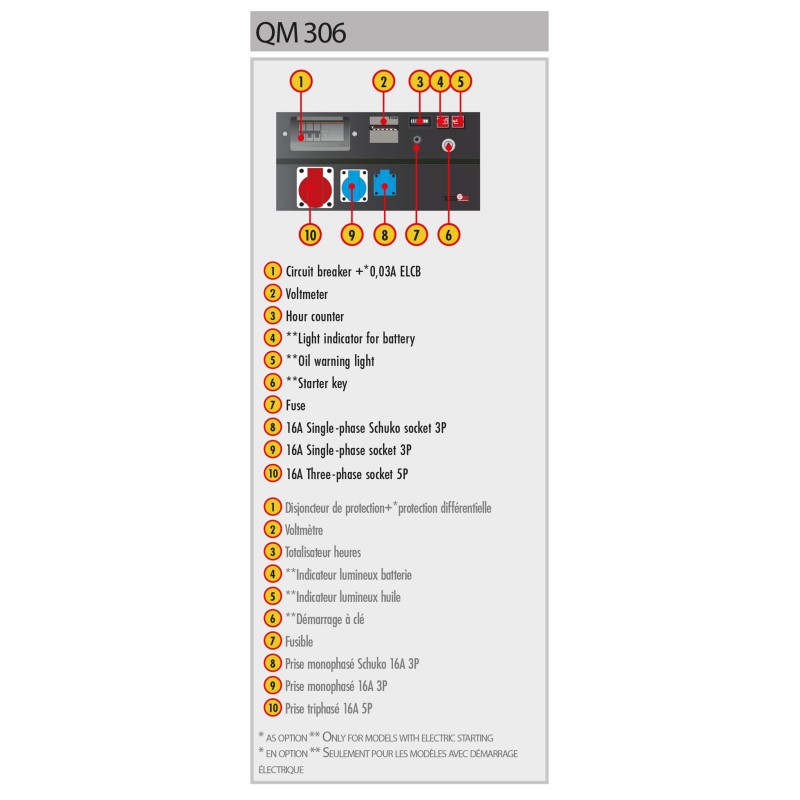

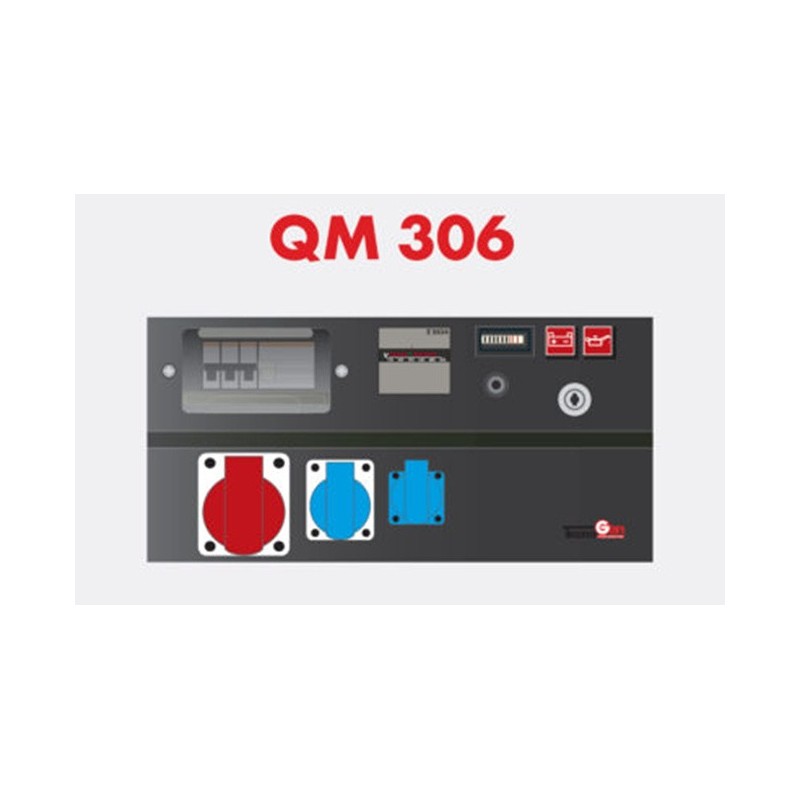

      Distribution panel with output sockets with circuit breaker, 0,03 A ELCB optional

      12V Battery on electric started models

      List price
      5,636.40 € tax incl.
      4,620.00 € tax excl.
      Discounted Price
      3,325.72 € tax incl.
      2,726.00 € tax excl.
      Shipping from 50.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA

      PERSONAL DATA


      Ask a question
      Product: TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA
      Offer on letterhead
      Product: TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA
      TECNOGEN
      LD 7500 TELX - COMP

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      3.1
      Maximum power single phase (KVA)
      3.8
      Maximum power three phase (KW)
      5.9
      Maximum power three phase (KVA)
      7.3
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine
      Kohler 15LD440
      Engine rpm (rpm)
      3000
      Starting system
      Elettrico
      Engine capacity (cm³)
      442
      Number cylinders
      1
      Cooling
      Air
      Fuel tank capacity (L)
      20
      Consumption (L/h)
      1.6 al 75% del carico
      Running time (h)
      12.5
      Length (mm)
      750
      Width (mm)
      560
      Height (mm)
      620
      Dry weight (Kg)
      121
      Silenced
      No
      Super silenced
      No
      ATS Switch device
      Optional
      Voltage regulator
      Compound / AVR (optional)
      Engine manufacturer
      Kohler

      Specific References

      New

      TECNOGEN LD7500TELX GENERATOR SET THREE-PHASE 7.3KVA

      TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA with Kohler engine running at 3000 RPM and powered by diesel. The TECNOGEN LD7500TELX Generator is easy to use, compact, handy, and easy to maintain. It is equipped with an electric start. This TECNOGEN LD7500TELX Three-Phase 7.3KVA generator is perfect for both hobby and professional use, thanks to its reliable Kohler diesel engine and high-quality components.

      Main Features of the TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA:
      Maximum three-phase power: 5.8 KW
      Maximum three-phase power: 7.3 KVA
      Fuel: Diesel
      Voltage: 400 - 230 V
      Engine: Kohler 15LD440
      Start: Electric
      Length: 750 mm
      Width: 560 mm
      Height: 620 mm
      Weight: 121 Kg

      Why buy a TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA?
      First of all, it solves power outage problems in various environments, from homes to businesses. The TECNOGEN LD7500TELX generator is also used to provide electricity on construction sites and for hobby applications.
      The TECNOGEN LD7500TELX Three-Phase 7.3KVA can be equipped with lifting hooks, making it easy to move using an overhead crane or a small hoist.

      The complete TECNOGEN range:
      TECNOGEN generators are available in both single-phase and three-phase versions, with power outputs ranging from 2.3 to 21 KVA MAX, equipped with petrol or diesel engines, air-cooled, running at 3000 RPM, with electric and/or manual recoil start. Compact, simplified, and economical, TECNOGEN generators offer an excellent price/performance/size/weight ratio. This generator is lightweight and easy to transport, making it suitable for various applications.

      Looking for a different model of the TECNOGEN LD7500TELX Generator Set Three-Phase 7.3KVA? Visit the dedicated section for power generators.
      Images and technical data are for reference only and subject to possible manufacturer revisions.
