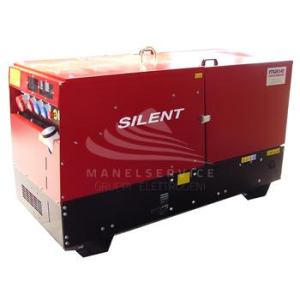

MASE MPV 44 BA

Reference 007858

OUT OF PRODUCTION

Three-phase maximum power: 35.2 KW
Three-phase continuous use power: 32 KW
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Deutz BF4M2011
Starting: Electric
Consumption: 5.61 Lt / h at 75% of the load
Length: 1980 mm
Width: 860 mm
Height: 1090 mm
Weight: 915 Kg
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 007858

Data sheet

Phase: Three phase
Maximum power three phase (KW): 35.2
Continuous power three phase (KW): 32
Maximum power three phase (KVA): 44
Continuous power three phase (KVA): 40
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 2 x 230V 16A CE
Engine: Deutz BF4M2011, 4 stroke
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 3108
Number cylinders: 4
Oil capacity (L): 10
Cooling: Oil
Inyección: Direct
Alternator: Synchronous self-excited, brushless
Poles: 4
Lubrication: Forced
Fuel tank capacity (L): 50
Consumption (L/h): 5.61 at 75% of the load
Running time (h): 8.9 at 75% of the load
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 1980
Width (mm): 860
Height (mm): 1090
Dry weight (Kg): 915
Silenced: Yes
Super silenced: Yes
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Deutz

Specific References

Condition New

OUT OF PRODUCTION

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
