MASE PD 7.4 S GENERATOR 6,3KVA SINGLE-PHASE / THREE-PHASE STAGE V

MASE PD 7.4 S GENERATOR 6,3KVA SINGLE-PHASE / THREE-PHASE STAGE V

Name: MASE PD 7.4 S GENERATOR 6,3KVA SINGLE-PHASE / THREE-PHASE STAGE V
Brand: MASE
SKU: 002318 MA
Price: 4650 EUR
Availability: InStock

Type of phase: Single-phase / Three-phase
Continuous singlephase power: 1.8 KVA / 1.4 KW
Maximum singlephase power: 2.1 KVA / 1.7 KW
Continuous threephase power: 5.5 KVA / 4.4 KW
Threephase maximum power: 6.3 KVA / 5 KW
VAC voltage: 230/400 V
Frequency (Hz): 50
Voltage regulator: Compound (AVR Optional)
Starting panel: Electric
Engine: Yanmar L100V
Emissions standard: Stage V
Rpm: 3000 rpm
Power supply: Diesel

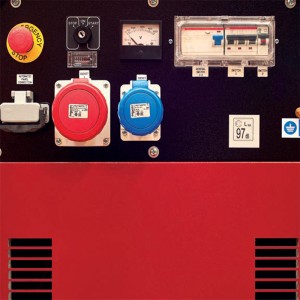

Socket panel : 1 x CEE 16A 230V / 1 x CEE 16A 400V
Tank capacity: 10.5 l
Autonomy: 7 h at 75% of the load
Consumption: 1.5 l / h at 75% of the load
Acoustic pressure: 72 dB (A) @ 7 m
Length: 815 mm
Width: 560 mm
Height: 730 mm
Net weight: 150 Kg

List price

5,673.00 € tax incl.

4,650.00 € tax excl.

Discounted Price

5,673.00 € tax incl.

4,650.00 € tax excl.

Shipping Free to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: MASE PD 7.4 S GENERATOR 6,3KVA SINGLE-PHASE / THREE-PHASE STAGE V

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: MASE PD 7.4 S GENERATOR 6,3KVA SINGLE-PHASE / THREE-PHASE STAGE V

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: MASE PD 7.4 S GENERATOR 6,3KVA SINGLE-PHASE / THREE-PHASE STAGE V

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 002318

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 1.7
Continuous power single phase (KW): 1.4
Maximum power single phase (KVA): 2.1
Continuous power single phase (KVA): 1.8
Maximum power three phase (KW): 5
Continuous power three phase (KW): 4.4
Maximum power three phase (KVA): 6.3
Continuous power three phase (KVA): 5.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 16A 3P+N+T CE - 1 x 230V 16A 2P+T CE
Engine: Yanmar L100AE, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 435
Number cylinders: 1
Cooling: Air
Alternator: Synchronous
Fuel tank capacity (L): 10.5
Consumption (L/h): 1.5 to 75 % of load
Running time (h): 7 at 75% of the load
Acoustic power: 97 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Length (mm): 815
Width (mm): 560
Height (mm): 730
Dry weight (Kg): 150
Silenced: Yes
Super silenced: No
ATS Switch device: Optional
Voltage regulator: Compound / AVR (optional)
Engine manufacturer: Yanmar

Specific References

Condition New

MASE PD 7.4 S GENERATOR 6,3KVA SINGLE / THREE-PHASE STAGEV

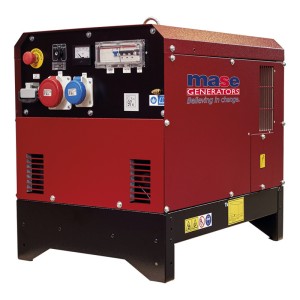

MASE PD 7,4 S is a single / three-phase generator equipped with a diesel-powered Yanmar L100V StageV engine, complete with capacitor voltage regulator ( AVR optional ).

The generator is equipped with electric start and low fuel consumption, in fact it consumes only 1.5 liters / hour at 75% of the load for an autonomy of up to 7 hours of operation. The generator unit guarantees efficient and silent operation thanks to the Yanmar L100V StageV engine, which allows it to deliver maximum 6.3KVA.

The MASE PD 7.4 S is equipped with a soundproofed cabin, made of bent and electro-welded steel, with protection class IP23 and which can be opened in two sections. This cabin allows an incredible reduction of noise pollution, up to obtaining an acoustic pressure of only 72 dB (A) recorded at a distance of 7 meters.

STAGEV EMISSIONS REGULATION

The MASE PD 7.4 S is equipped with a "mobile" STAGEV motorization, as required by the 2016/1628 European Regulation. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the genset into the environment, and ensure a reduction in the environmental impact of 200% compared to standard engines.

TECHNICAL CHARACTERISTICS OF MASE PD 7.4 S

Type of phase: Single-phase / Three-phase
Continuous singlephase power: 1.8 KVA / 1.4 KW
Maximum singlephase power: 2.1 KVA / 1.7 KW
Continuous threephase power: 5.5 KVA / 4.4 KW
Threephase maximum power: 6.3 KVA / 5 KW
VAC voltage: 230/400 V
Frequency (Hz): 50
Voltage regulator: Compound (AVR Optional)
Starting panel: Electric
Engine: Yanmar L100V
Emissions standard: Stage V
Rpm: 3000 rpm
Fuel: Diesel
Socket panel : 1 x CEE 16A 230V / 1 x CEE 16A 400V
Tank capacity: 10.5 l
Autonomy: 7 h at 75% of the load
Consumption: 1.5 l / h at 75% of the load
Acoustic pressure: 72 dB (A) @ 7 m
Length: 815 mm
Width: 560 mm
Height: 730 mm
Net weight: 150 Kg

Are you looking for a product with different technical characteristics? HERE you can find the area dedicated to MASE generators and other specialized brands.

Non-binding images and technical data.
