Data sheet

Phase

Single phase / Three phase

Maximum power single phase (KW)

2.6

Maximum power single phase (KVA)

3.3

Maximum power three phase (KW)

8

Maximum power three phase (KVA)

10

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

230 / 400

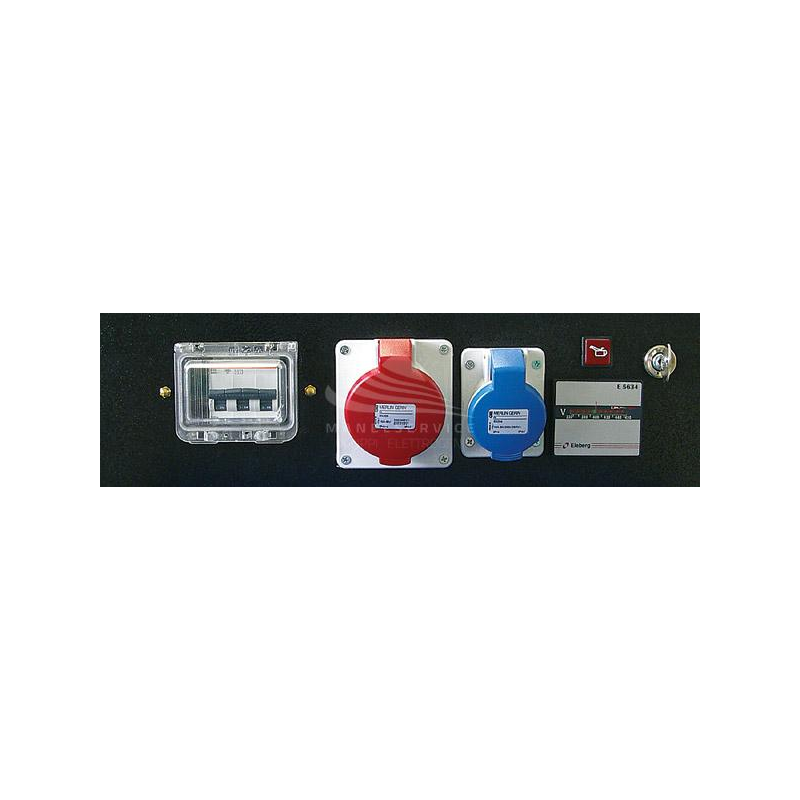

Sockets configuration

1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE

Engine

Lombardini 25LD425

Engine rpm (rpm)

3000

Starting system

Electric

Engine capacity (cm³)

851

Number cylinders

2

Oil capacity (L)

1.8

Cooling

Air

Fuel tank capacity (L)

4.5

Consumption (L/h)

3 at 100% of the load

Running time (h)

1.5 at 100% of the load

Acoustic power

105 dB(A)

Acoustic pressure

80 dB(A) at 7 m

Length (mm)

920

Width (mm)

520

Height (mm)

660

Dry weight (Kg)

140

Silenced

No

Super silenced

No

ATS Switch device

No

Voltage regulator

No

Engine manufacturer

Lombardini
