WFM 14000-MTHE

Name: WFM 14000-MTHE
Brand: WFM
SKU: 09243
Price: 3412.34 EUR
Availability: InStock

Reference 09243

Maximum power single phase: 3.2 kW
Maximum power single phase: 4 kVA
Maximum power three phase: 9.6 kW
Maximum power three phase: 12 kVA
Fuel: Petrol
Voltage: 230 V / 400 V
Frequency: 50 Hz
Engine: Honda GX690R
Starting: Electric
Consumption: 4.6 Lt at 100% load
Length: 990 mm
Width: 550 mm
Height: 670 mm
Weight: 140 kg

Prezzo

2,797.00 € tax excl.

3,412.34 € tax incl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 09243

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 3.2
Maximum power single phase (KVA): 4
Maximum power three phase (KW): 9.6
Maximum power three phase (KVA): 12
Fuel: Gasoline
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 230V 16A 3P CEE - 1 x 230V 32A 3P CEE
Engine: Honda GX690R
Engine rpm (rpm): 3000
Starting system: Electric
Engine capacity (cm³): 688
Number cylinders: 2
Oil capacity (L): 1.9
Cooling: Air
Fuel tank capacity (L): 20
Consumption (L/h): 4.6 at 100% of the load
Running time (h): 4.34 at 100% of the load
Acoustic power: 100 dB(A)
Acoustic pressure: 75 dB(A) at 7 m
Length (mm): 990
Width (mm): 550
Height (mm): 670
Dry weight (Kg): 140
Silenced: No
Super silenced: No
ATS Switch device: Optional
Voltage regulator: No
Engine manufacturer: Honda

Specific References

Condition New

BOXER P Series

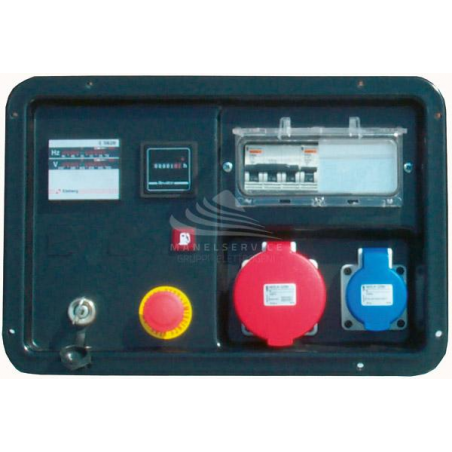

Generating sets with original HONDA twin-cylinder petrol engine in a sturdy semi-casing frame with power from 10 to 12 KVA, single-phase or three-phase/single-phase, 3000 rpm, air cooling, key start including battery and electrical panel with sockets and protection as standard. Can be combined with various accessories for professional use and use in the event of a blackout.
Complete with a 20-litre tank for long operating autonomy.
Not intended for outdoor use.
Noise level does not comply with Directive 2000/14/EC.

Main features:
- protective frame with semi-enveloping upper hood
- original Honda engine compliant with low CO2 emissions
- low oil level protection
- silencer
- primary Italian brand alternator
- oversized 20-litre petrol tank for long operating autonomy
- electric start with 12V battery supplied with acid
- full load test with test certificate
- user manual compliant with safety standards

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
