GENERATOR SINGLE-PHASE / THREE-PHASE 20KVA STAGE V

GENERATOR SINGLE-PHASE / THREE-PHASE 250KVA with manual control panel

Single/three phase 20KVA generator with a 1500 rpm Yanmar diesel engine, compact and easy to use, mounted on a fixed base. The is equipped with a weatherproof, structural steel sheet soundproof cabin and an interior cladding of high noise reduction material, making the supersilenced.
The generator consists of a self-excited, brushless alternator with AVR voltage regulator. Thanks to its 50-litre tank, the generator has an autonomy of up to 14 hours of work.
This generator is perfect for use outdoors, such as on construction sites.
The generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the generator:
Phase Type: Single-Phase / Three-Phase
Single-Phase Continuous Power: 6.3KVA / 5.0KW
Single-Phase Maximum Power: 6.6KVA / 5.3KW
Three-Phase Continuous Power: 19.0KVA / 15.0KW
Three-Phase Maximum Power: 20.0KVA / 16.0KW
Motor: Yanmar 4TNV88-BIECS
Emissions Standard: Stage V
Starting: Electric
Power supply: Diesel

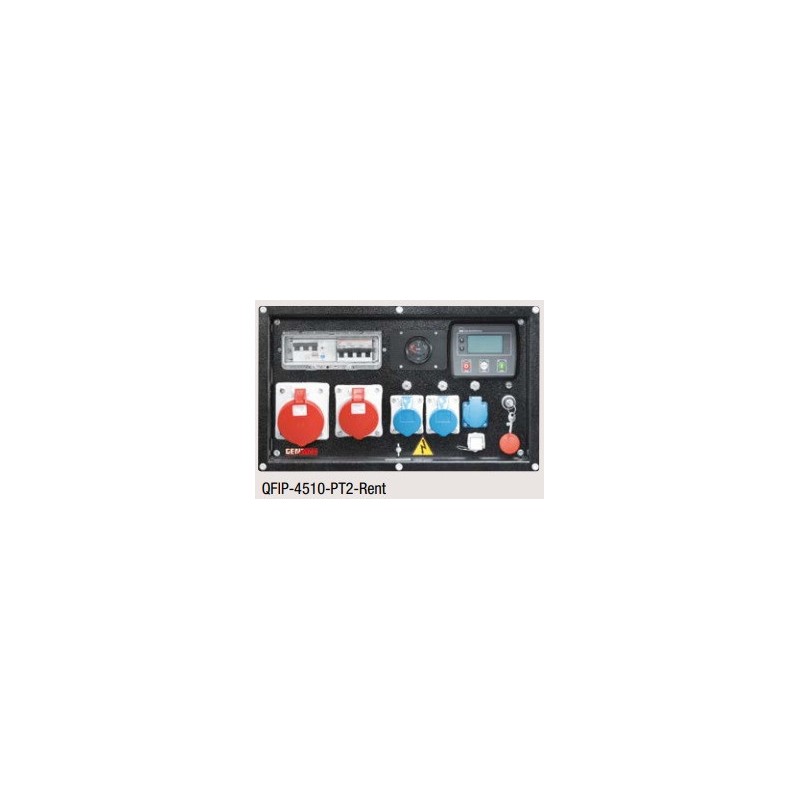

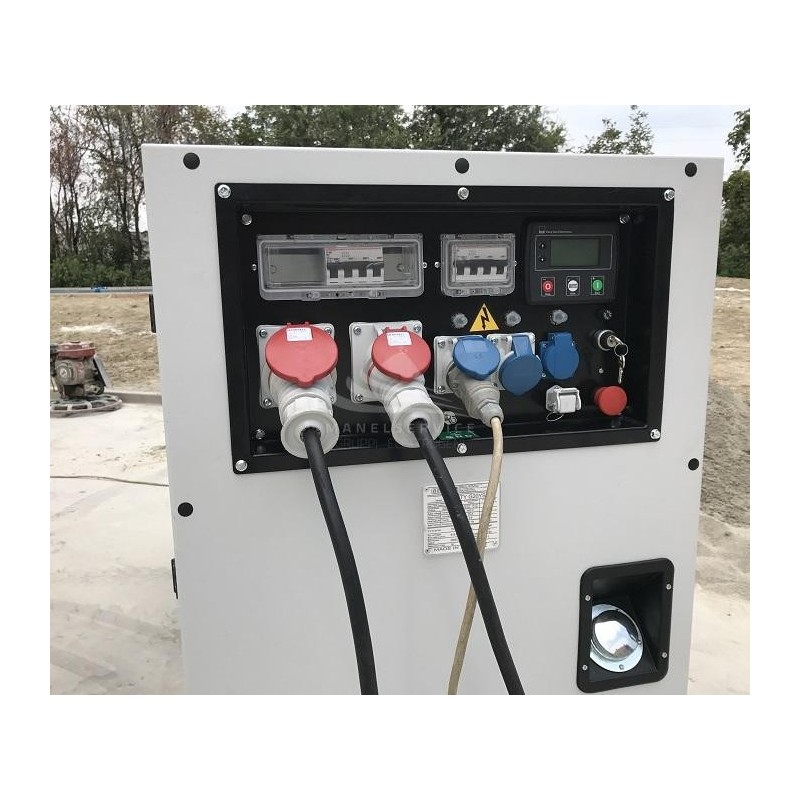

Receptacle panel: 1 x Schuko 16A 230V - 2 x 16A 230V - 1 x 16A 400V - 1 x 32A 400V
Voltage: 230 / 400 V
Frequency: 50 Hz
Engine RPM: 1500 rpm
Tank capacity: 50 l
Autonomy @ 75%: 14 h fixed revolutions
Voltage regulator: AVR
Sound pressure @7m: 65 dBa
Length (mm): 1802
Width (mm): 752
Height (mm): 1130
Dry weight (Kg): 646

If you are looking for a product like the then you can browse the full range of generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
