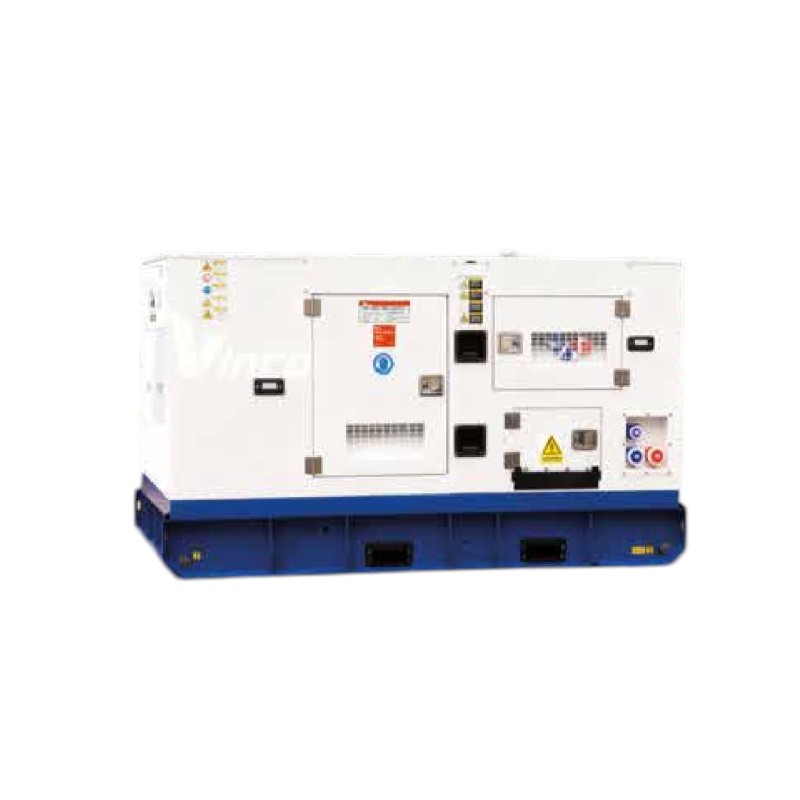

VINCO Three-Phase Generator 100 kW/125 kVA Stage II

Discover the VINCO LG100YTO silenced three-phase generator, a powerful solution for professional power supply with a three-phase nominal power of 100 kW / 125 kVA and a maximum of 110 kW / 138 kVA. Ideal for construction sites, events and industrial backup, this 1500 rpm diesel generator guarantees reliability with a YTO LR4M3L-D88 engine, 4 cylinders, 4500 cc, liquid cooling (16 L) and Stage 2 emissions.

Main Technical Specifications

Phase type: Three-phase, with single-phase power 100 kW / 125 kW

Voltage / Frequency: 230/400 V - 50 Hz

Fuel: Diesel, 165 L tank, consumption 26.1 / 19.6 / 13.0 L/h (100/75/50% load), autonomy 50-80 hours

Noise level: 75 dBA at 7 m (silenced), dry weight 1710 kg

Protections: IP23, max altitude 1000 m, lubrication 14 L, ATS predisposition (without integrated ATS switchboard)

Technical Features:

Three-phase rated power: 100 kW / 125 kVA​

Maximum three-phase power: 110 kW / 138 kVA​

Single-phase power: 100 kW / 125 kW​

Voltage: 230/400 V - 50 Hz​

Amperage: 180 A​

Noise level: 75 dBA measured at 7 m​

Protection level: IP23​

Maximum altitude: 1000 m a.s.l.​

Brand and Model: YTO LR4M3L-D88​

Number of cylinders: 4​

Displacement: 4750 cc​

Engine speed: 1500 min⁻¹​

Lubrication system: 14 L​

Cooling system: Liquid, capacity 16 L​

Emissions: STAGE II​

Fuel type: Diesel​

Tank capacity: 165 L​

Consumption (100/75/50% load): 26.1 / 19.6 / 13.0 L/h​

Alternator and Control

Alternator model: LK274ES​

Type: Brushless, self-excitation​

Control module: DeepSea DSE6120​

Main functions: Low oil pressure, high engine temperature, overspeed, emergency stop, fault signaling​

Predisposition: ATS

Dimensions: 277 x 108 x 140 cm​

Weight: 1710 kg
