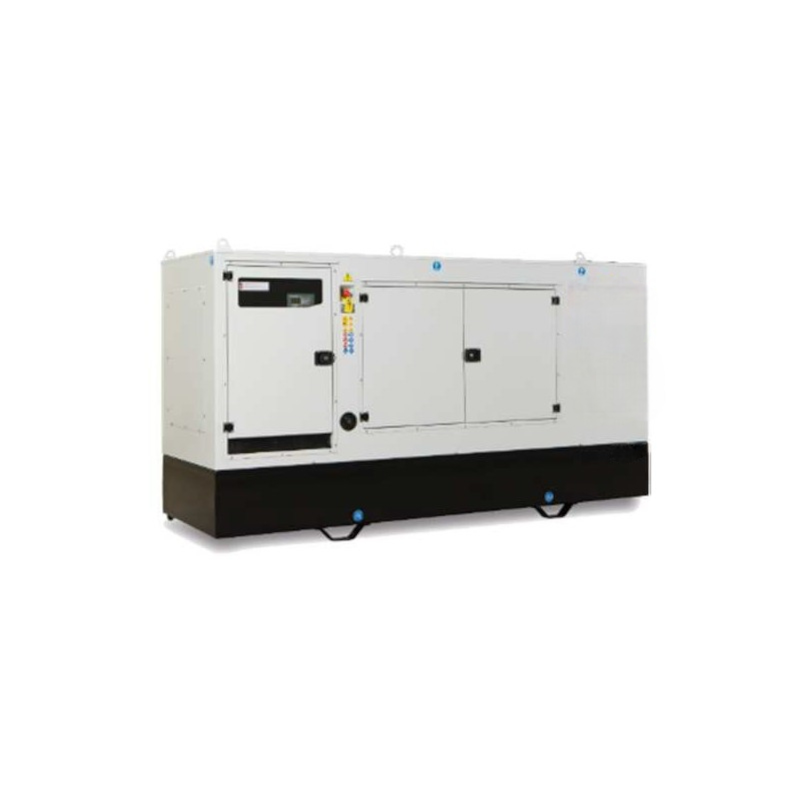

Generator Set Silenced Non-Emission 250KVA

Name: Generator Set Silenced Non-Emission 250KVA
Brand: NO BRAND
SKU: GESSNE250
Price: 39345 EUR
Availability: InStock

Reference GESSNE250

Maximum three-phase power: 250 KVA
Maximum three-phase power: 200 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Perkins 1206A-E70TTAG2
Start: Electric
Length: 3300 mm
Width: 1100 mm
Height: 1770 mm
Weight: 2450 Kg

List price

66,685.20 € tax incl.

54,660.00 € tax excl.

Discounted Price

39,345.00 € tax incl.

32,250.00 € tax excl.

Shipping from 841.80 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GESSNE250

Data sheet

Phase: Three phase
Maximum power three phase (KW): 200
Continuous power three phase (KW): 180
Maximum power three phase (KVA): 250
Continuous power three phase (KVA): 225
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Engine: Perkins 1206A-E70TTAG2
Engine rpm (rpm): 1500
Speed governor: Electronic
Starting system: Elettrico
Engine capacity (cm³): 7010
Number cylinders: 6
Cylinders' position: In line
Cooling: Water
Alternator: LEROY SOMER
Poles: 4
Protection degree: IP23
Fuel tank capacity (L): 170
Consumption (L/h): 35.7 Lt/h al 75% del carico
Acoustic pressure: 70 dB(A)
Width (mm): 1100
Height (mm): 1770
Dry weight (Kg): 2450
Silenced: Yes
Super silenced: Yes

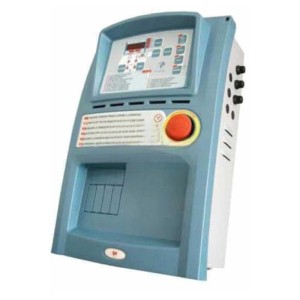

ATS Switch device: Optional
Voltage regulator: AVR

Specific References

Silent, Non-Emitting Generator Set 250KVA

This generator delivers a maximum three-phase power of 200 kW (250 kVA) and a continuous power of 180 kW (225 kVA).
It operates at a frequency of 50 Hz and provides a standard voltage of 230 / 400 V, suitable for most industrial and commercial applications.
Voltage stability is ensured by an AVR voltage regulator, which protects sensitive connected electronic equipment.

The generator is equipped with a Perkins 1206A-E70TTAG2 engine, a 6-cylinder in-line diesel unit with a displacement of 7035 cm³ and water cooling.
The engine operates at 1500 rpm, a feature that ensures greater durability and lower noise during use. extended.
The alternator is a Mecc Alte ECO38-3S/4 synchronous model, known for its reliability. The starter is electric and the engine speed is managed electronically for greater precision.

Technical Features:

Maximum three-phase power: 250 KVA
Maximum three-phase power: 200 KW
Fuel: Diesel
Voltage: 230/400 V
Engine: Perkins 1206A-E70TTAG2
Starter: Electric
Length: 3300 mm
Width: 1100 mm
Height: 1770 mm
Weight: 2450 kg

If you are looking for a similar product but with different characteristics CLICK HERE.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
