CGM E150F-C200 GENERATOR SET WITH AUTOMATIC PANEL 165kVA STAGE IIIA

The CGM E150F-C200 WITH AUTOMATIC PANEL 165kVA STAGE IIIA is a high-performance three-phase generator set, designed to ensure reliability and energy continuity in industrial, building and emergency applications. It is equipped with a FPT Iveco NEF N67TE1PV engine, compliant with Stage IIIA emissions regulations, ideal for use in professional environments subject to environmental regulations.

This diesel generator offers a continuous power of 150 kVA (120 kW) and a maximum power of 165 kVA (132 kW) with 50 Hz frequency and 400 V voltage, regulated by AVR (Automatic Voltage Regulator) to ensure a stable and safe supply. The electronic speed governor and the self-excited brushless alternator help maintain high performance and low maintenance costs.

Equipped with a 250 litre tank, it guarantees an autonomy of approximately 9.3 hours at 75% load, with an average consumption of 27 litres/hour. The silenced and super silenced structure ensures a low noise level of just 69 dB(A) at 7 metres, making it suitable even for urban and noise-sensitive contexts.

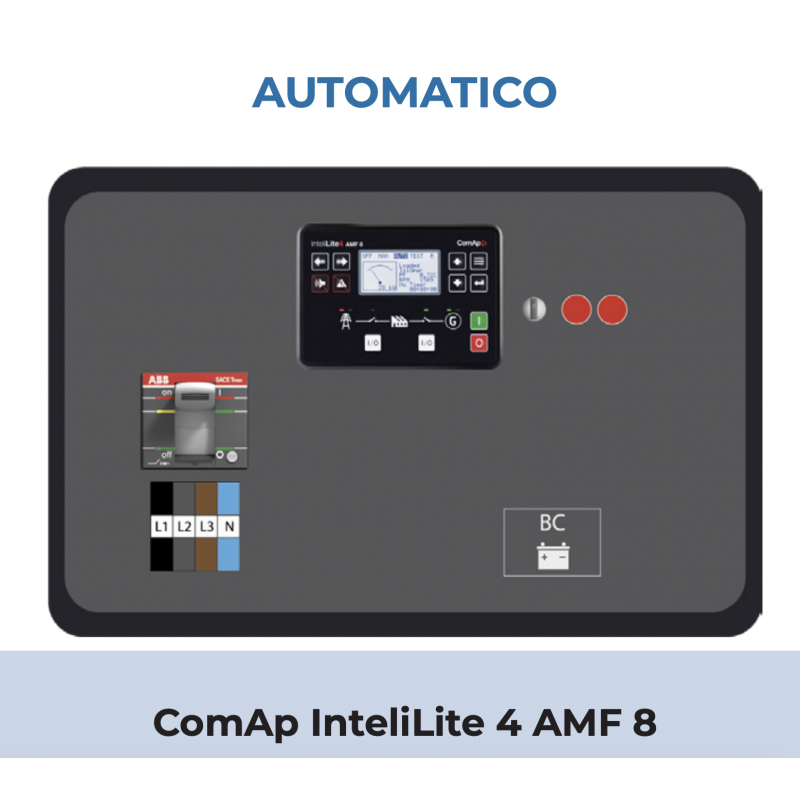

The compact and robust cabin has dimensions of 3200 x 1135 x 2100 mm, with a dry weight of 1940 kg and protection rating IP44. The automatic panel is available as an optional, for automatic start-up in the event of a blackout (ATS).

Technical Features:

Phase type: Three-phase

Continuous use power (kW): 120

Continuous use power (kVA): 150

Maximum power (kW): 132

Maximum power (kVA): 165

Fuel: Diesel

Frequency: 50 Hz

Voltage: 400 V

Engine: FPT NEF N67TE1PV

Engine speed: 1500 rpm

Speed ​​governor: Electronic

Displacement: 6700 cm³

Number of cylinders: 6

Cooling: Water

Alternator: Self-excited, brushless

Number poles: 4

Voltage regulator: AVR

Consumption: 27 L/h at 75% load

Autonomy: 9.3 h at 75% load

Tank capacity: 250 L

Sound pressure: 69 dB(A) at 7 m

Bore x stroke: 104 x 132 mm

Protection rating: IP44

Dimensions (L x W x H): 3200 x 1135 x 2100 mm

Dry weight: 1940 kg

Silenced: Yes

Super silenced: Yes

Product type: Generator set

ATS panel: Optional

Engine brand: FPT Iveco

Emissions standard: Stage IIIA

If you are looking for a product like the CGM E150F-C200 then you can check out the full range of generator  from CGM or other types of products in our catalog to find the one that best suits your needs.

Images and technical data are not binding. Please always consult the technical data sheet issued by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
