Voltage:230/400 V
Single/three-phase
Three-phase continuous use power: 15 KVA
Nominal Power: 4/12 Kw
Max. power MF/TF: 4.5/13.5 Kw
Frequency: 50 Hz
Amperage: 22 A
Noise level: 75 DB (at 7m)
IP Degree of Protection: IP23
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: Fawde
Displacement: 2270 cc
Type of Injection: Direct
No. Cylinders: 4
Engine rpm: 1500/min
Emissions: Stage II
Consumption 100%/75%/50% of load: 2.4/1.8/1.2 l/h
Fuel: Diesel
Tank capacity: 40 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 7.8 L
Cap. Tot. cooling system 6 L
Alternator Model: Lk164D
Exciter: Brushless - Auto - Excitation
Dimensions L x W x H: 1600 * 740 * 825 mm
Weight: 560 kg
Preparation: ATS
Data sheet
Specific References
GENERATOR HYUNDAI SILENCED THREE-PHASE 12KW/15KVA STAGEII
Generator Hyundai three-phase StageII represents the ultimate expression and reliability in a single solution.
Designed to meet the needs of individuals, businesses and construction sites, this Hyundai generator offers a range of unbeatable benefits
By choosing the Hyundai Three-Phase Silent StageII Generator, you are making a safe and long-lasting investment.
Highest quality LK164D alternator: Rugged, reliable and designed to provide a pure sine wave,
it ensures a stable and safe supply for all your devices, without the risk of damage.
High performance:
2270 cc Fawde engine: reliable and StageII compliant
Direct injection system: efficiency and low consumption
LK164D alternator: robust and reliable, delivers a pure sine wave
Quiet operation:
Noise level below 75 dB (at 7m): ideal for residential and office environments
Safety and reliability:

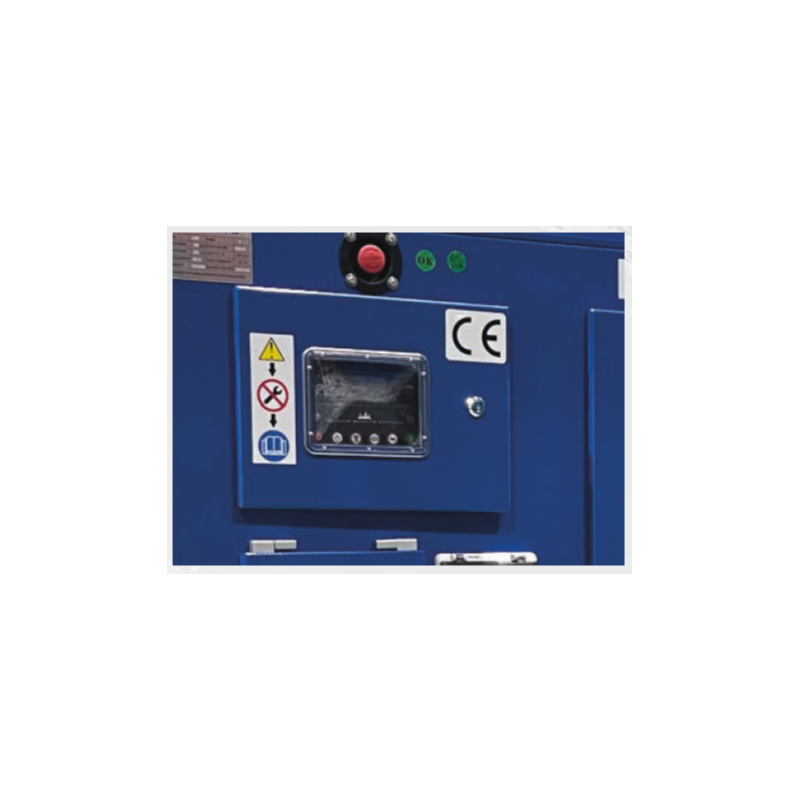

Waterproof' control panel: intuitive monitoring and control
Emergency button: Immediate stop in case of need
Waterproof miniature circuit breaker: overload and short-circuit protection
IP23 degree of protection: water and dust resistant
Autonomy and durability:
Large autonomy: 40-litre tank for extended operation
Liquid cooling system: optimal temperatures even in harsh conditions
Advanced control and management:
Deepsea DSE6120 control unit
Ready for ATS: automatic connection in the event of a failure.
The Hyundai StageII Generator is the ideal choice for:
Private homes: backup and powering high equipment
Companies: business continuity in the event of outages
Construction sites: power tools and machinery
The Hyundai StageII Three-Phase Silent Generator is the ideal solution
for anyone looking reliable and silent Hyundai generator.
With its three-phase and single-phase, the Hyundai 3-phase Silent StageII Generator
is capable of powering a wide range of equipment.
The Hyundai 3-phase Silenced StageII Generator
features a direct injection system for efficiency and low fuel consumption.
The Hyundai three-phase Silent StageII Generator is a safe and reliable product,
thanks to its "Waterproof" control panel, emergency button and IP23 protection rating.
Disarmingly easy to use for everyone: The intuitive control panel and electric start-up make
this generator easy to use for anyone, even the less experienced,
ensuring an uncomplicated user experience.
Technical characteristics Hyundai Three-Phase StageII generator:
Voltage:230/400 V
Single/three-phase
Three-phase continuous use power: 15 KVA
Nominal Power: 4/12 Kw
Max. power MF/TF: 4.5/13.5 Kw
Frequency: 50 Hz
Amperage: 22 A
Noise level: 75 DB (at 7m)
IP Degree of Protection: IP23
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: Fawde
Displacement: 2270 cc
Type of Injection: Direct
No. Cylinders: 4
Engine rpm: 1500/min
Emissions: Stage II
Consumption 100%/75%/50% of load: 2.4/1.8/1.2 l/h
Fuel: Diesel
Tank capacity: 40 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 7.8 L
Cap. Tot. cooling system 6 L
Alternator Model: Lk164D
Exciter: Brushless - Auto - Excitation
Dimensions L x W x H: 1600 * 740 * 825 mm
Weight: 560 kg
Preparation: ATS
If you are looking for a product similar to Hyundai Three Phase Generator click HERE.
The image is purely indicative.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
