GENSET MG23ISY Generator Group StageV 1000lt 22KVA

Reference MG 23 I-SY StageV 1000

Maximum three-phase power: 22 KVA
Maximum three-phase power: 17.6 KVA
Maximum single-phase power: 7.3 KVA
Single-phase maximum power: 5.84 KW
Fuel: Diesel
Voltage: 230/400 V
Frequency: 50 Hz
Acoustic power: 93 (68 dB at 7 m)
Engine: Yanmar 4TNV88
Emission standard: StageV
No. Cylinders: 4
Power: 24.1 HP (18 kWm)
Displacement: 2190 cm3
Cooling: Coolant
Tank capacity: 1000lt
Starter: Electric
Fuel consumption @80%: 3,5 lt/h
Degree of protection: IP23
Length: 1650 mm
Width: 815 mm
Height: 2274 mm
Weight: 930 kg
Silenced

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference MG 23 I-SY StageV 1000

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 5.84
Maximum power single phase (KVA): 7.3
Maximum power three phase (KW): 17.6
Maximum power three phase (KVA): 22
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 32A CEE - 1 x 230V 32A CEE
Engine: Yanmar 4TNV88, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 2190
Number cylinders: 4
Cooling: Coolant Liquid
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 1000
Consumption (L/h): 3.5
Running time (h): 57
Acoustic power: 93 dB(A)
Acoustic pressure: 68 dB(A) at 7 m
Length (mm): 1650
Width (mm): 815
Height (mm): 2274
Dry weight (Kg): 930
Silenced: Yes
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR (optional)
Engine manufacturer: Yanmar

Specific References

Condition New

GENSET MG23ISY GENERATOR GROUP STAGEV 1000lt 22KVA

The GENSET MG23ISY Generator Group StageV 1000lt 22KVA is a high-quality, silent generator designed to
deliver superior performance and reliability under various operating conditions. As part of GENSET's
renowned Smart series, the GENSET MG23ISY StageV 1000lt stands out for its compactness and robustness,
making it ideal for frequent use and easy handling.

Key Features of the GENSET MG23ISY Generator Group StageV 1000lt:

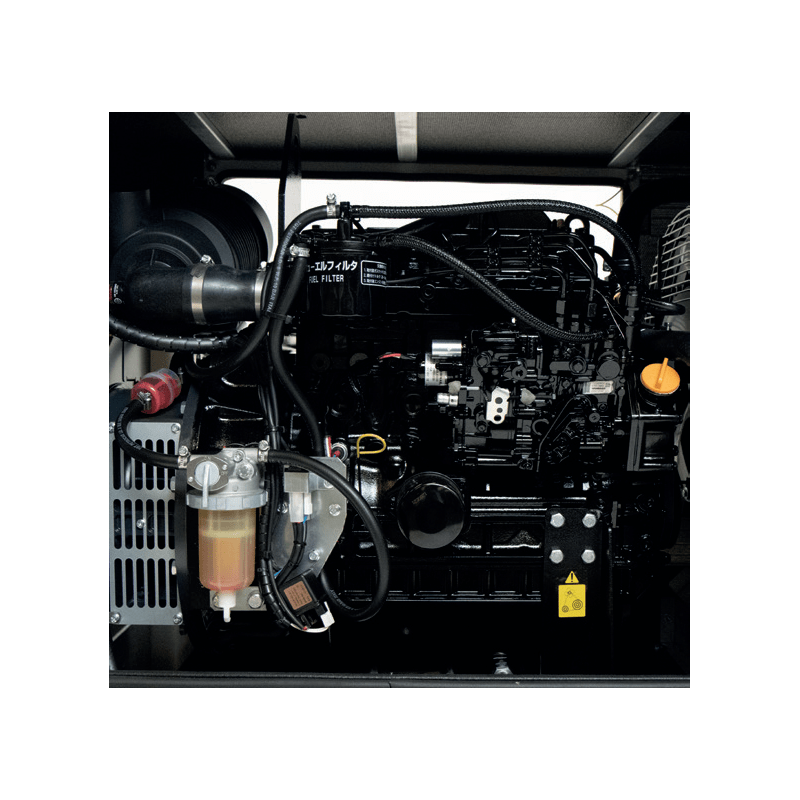

Yanmar Engine at 1500 RPM: The Yanmar diesel engine provides 24.1 HP (18 kWm), ensuring efficient and
durable operation.
Fuel Tank Capacity: Equipped with a 1000-liter tank, this generator allows for long operating sessions
without the need for frequent refueling.
Stage V Certification: Compliant with StageV regulations, this generator significantly reduces emissions for
a cleaner environment.
Automatic Shutdown System: Includes a safety system that shuts down the engine in case of anomalies
such as low fuel level, low oil pressure, or high coolant temperature.
Ease of Maintenance: Designed to simplify maintenance operations, ensuring long-lasting durability and
continuous operation without interruptions.

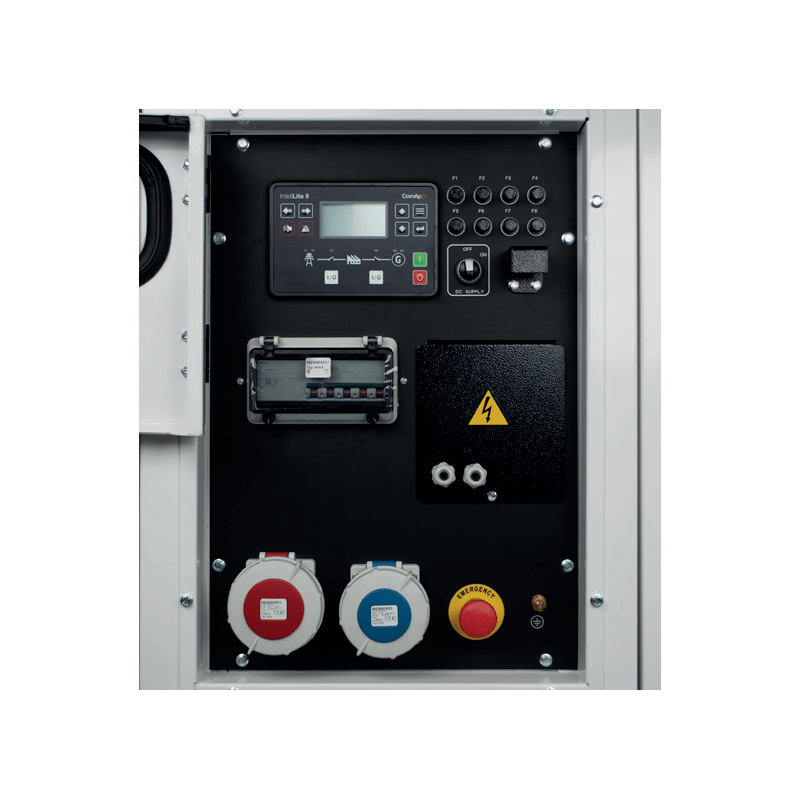

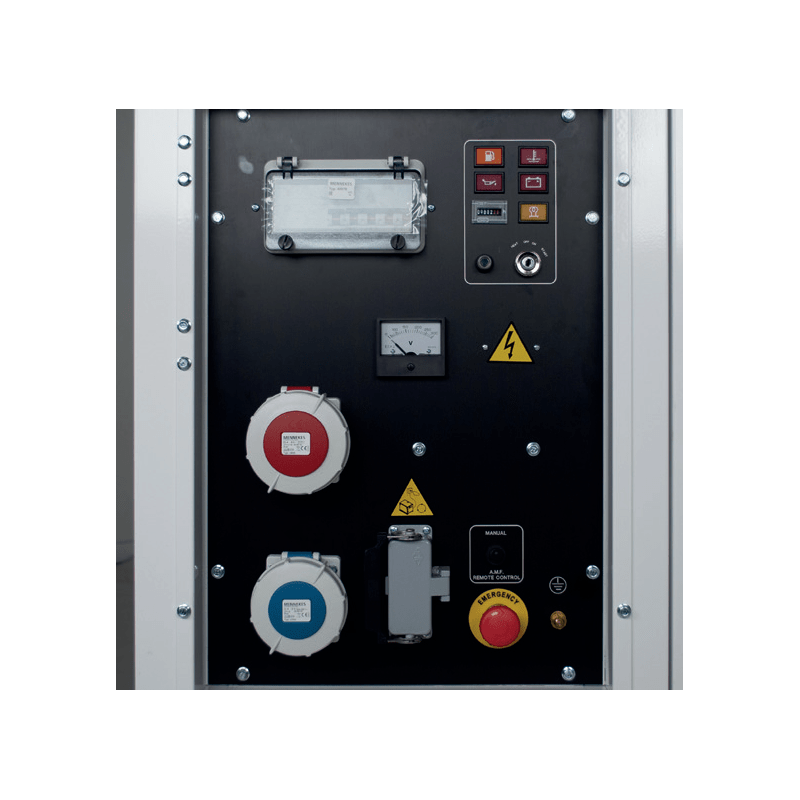

Control Panel and Sockets: Features a control panel with multiple sockets for single-phase and three-phase
connections, providing versatility in use.

Technical Specifications GENSET MG23ISY StageV:

Maximum Power: 22 kVA (three-phase) and 7.3 kVA (single-phase) with a power factor of cos φ 0.8.
Fuel Consumption: 3.5 liters/hour at 80% load.
Noise Level: 93 dB (68 dB at 7 meters), ensuring relatively quiet operation.
Dimensions: 1650 x 815 x 2274 mm, perfect for tight spaces.
Weight: 930 kg, facilitating transportation and handling.

Standard Equipment GENSET MG23ISY StageV:

Hour meter and voltmeter
Emergency stop button
Fuel level indicator
Output power protections and differential switch
Connector for AMF-ATS panel and remote control
Forklift pockets and lifting hook

The GENSET MG23ISY StageV 1000lt is the perfect choice for those seeking a powerful and
reliable generator with low emissions and easy maintenance. This model represents an advanced and
eco-friendly solution, ideal for a wide range of industrial and commercial applications. Thanks to its
advanced technical features and standard equipment, the GENSET MG23ISY is synonymous with
quality and performance in the generator sector.

Looking for a power generator with different characteristics? HERE you can find the full range of products from GENSET or other brands specializing in the field

Images and technical data are not binding and may be subject to revision by the supplier.
