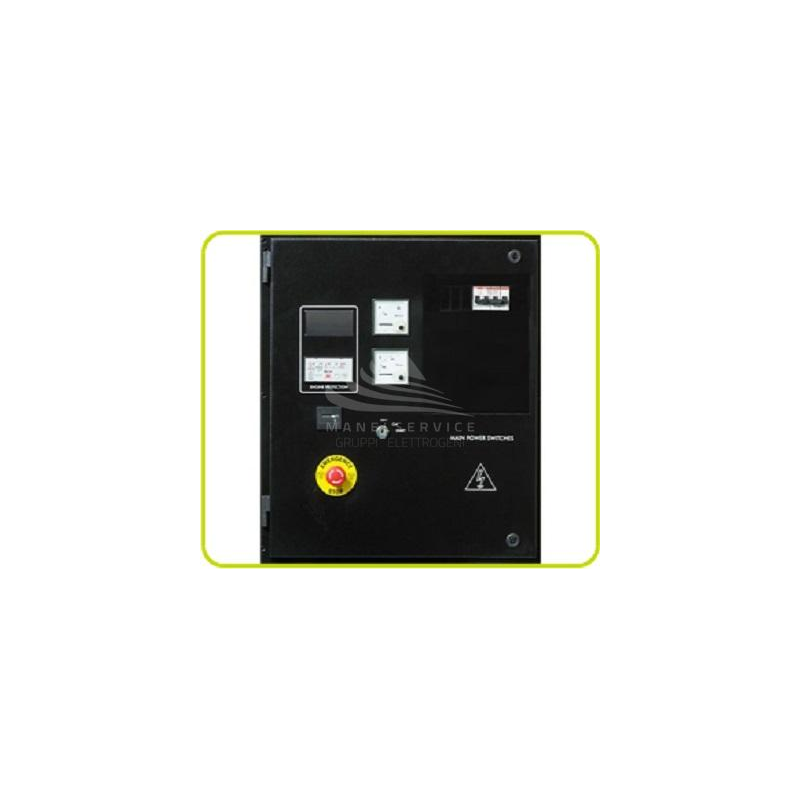

PRAMAC GSW110I APERTO CON QUADRO COMANDO MANUALE

Reference SG101TCAX00 /

OUT OF PRODUCTION

Maximum power Three-phase: 88.7 KW
Three-phase continuous use power: 80.67 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: FPT NEF45TM2A
Starting: Electric
Consumption: 22.1 Lt/h at 100% of load
Length: 2200 mm
Width: 1000 mm
Height: 1743 mm
Weight: 1310 Kg
AVR

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SG101TCAX00 /

Data sheet

Phase: Three phase
Maximum power three phase (KW): 88.7
Continuous power three phase (KW): 80.67
Maximum power three phase (KVA): 110.87
Continuous power three phase (KVA): 100.84
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Engine: FPT NEF45TM2A, turbo aftercooler
Emissions Regulations: Stage 2
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 4500
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 12.8
Cooling: Water
Alternator: Mecc Alte ECP34-2S/4, brushless
Poles: 4
Fuel tank capacity (L): 240
Consumption (L/h): 16.3 at 75% of the load / 22.1 at 100% of the load
Running time (h): 14.7 at 75% of the load / 10.9 at 100% of the load
Length (mm): 2200
Width (mm): 1000
Height (mm): 1743
Dry weight (Kg): 1310
Silenced: No
Super silenced: No
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Specific References

Condition New

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
