    GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR
    GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR
    GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR
    GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR
    GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR

    GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR

    Maximum three-phase power: 33 KVA
    Maximum three-phase power: 26.40 KW
    Maximum single-phase power: 11 KVA
    Single-phase maximum power: 8.8 KW
    Fuel: Diesel
    Voltage: 230/400 V
    Frequency: 50 Hz
    Acoustic power: 96 (71 dB at 7 m)
    Engine: Yanmar 4TNV98
    Emission standard: STAGE 0
    No. of cylinders: 4
    Power: 46.1 HP (34.4 kWm)
    Displacement: 3319 cm3
    Cooling: Coolant
    Starter: Electric
    Tank capacity: 1000lt
    Fuel consumption @80%: 6.4 Lt/h
    Degree of protection: IP23
    Length: 1910 mm
    Width: 915 mm
    Height: 2274 mm
    Weight: 1370 Kg
    Silenced
    AVR4

    Custom Quote
    Product: GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR

    PERSONAL DATA


    Ask a question
    Product: GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR
    Offer on letterhead
    Product: GENSET MG33ISY Generator Group Stage0 1000lt 33KVA AVR
    GENSET
    MG 33 I-SY Stage0 1000

    Data sheet

    Phase
    Single phase / Three phase
    Maximum power single phase (KW)
    8.8
    Maximum power single phase (KVA)
    11
    Maximum power three phase (KW)
    26.4
    Maximum power three phase (KVA)
    33
    Fuel
    Diesel
    Frequency (Hz)
    50
    Voltage (V)
    230 / 400
    Sockets configuration
    1 x 400V 63A CEE - 1 x 400V 32A CEE - 1 x 230V 32A CEE - 1 x 230V 16A CEE
    Engine
    Yanmar 4TNV98, 4 stroke
    Emissions Regulations
    Stage 0
    Engine rpm (rpm)
    1500
    Starting system
    Electric
    Engine capacity (cm³)
    3319
    Number cylinders
    4
    Cooling
    Coolant Liquid
    Alternator
    Synchronous
    Protection degree
    IP23
    Motor insulation class
    H
    Fuel tank capacity (L)
    1000
    Consumption (L/h)
    6.4
    Running time (h)
    39.06
    Acoustic power
    96 dB(A)
    Acoustic pressure
    71 dB(A) at 7 m
    Length (mm)
    1910
    Width (mm)
    915
    Height (mm)
    2274
    Dry weight (Kg)
    1370
    Silenced
    Yes
    Product type
    Generator
    ATS Switch device
    Optional
    Voltage regulator
    AVR
    Engine manufacturer
    Yanmar

    Specific References

    New

    GENSET MG33ISY GENERATOR GROUP STAGE0 1000LT 33KVA AVR

    The GENSET MG33ISY Generator Group Stage0 1000lt  is a high-quality silenced generator, designed to deliver
    superior performance and reliability across various operating conditions. As part of the GENSET Smart series,
    this model is valued for its sturdiness and compactness, making it ideal for intensive use and easy mobility.

    The GENSET MG33ISY Generator Group Stage0 stands out for its robust and compact design, perfect for
    applications requiring frequent relocation. Its durable structure ensures a long lifespan even in challenging
    environments, while the Yanmar engine operating at 1500 RPM provides reliable and efficient performance.
    With its advanced features, the GENSET MG33ISY model is equipped for automatic start-up, offering ease of
    use and operational convenience.

    Key Features of the GENSET MG33ISY Generator Group Stage0 1000lt:

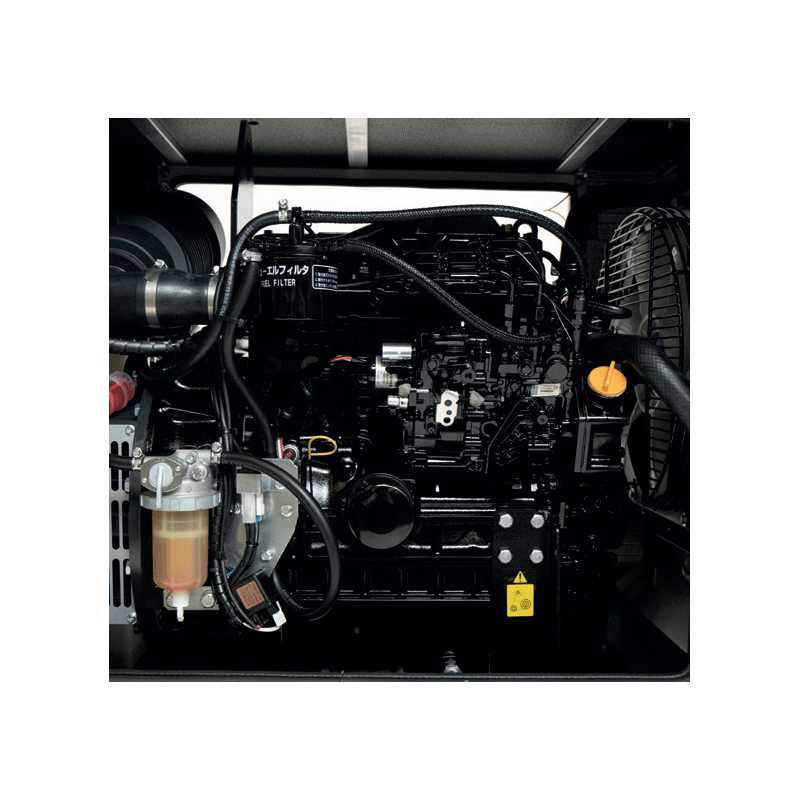

    Yanmar Engine at 1500 RPM: This diesel engine delivers 46.1 HP (34.4 kWm), ensuring efficient and
    long-lasting operation.
    Tank Capacity: The 1000-liter tank allows for extended operation periods without frequent refueling.
    Stage 0 Certification: Compliant with Stage0 regulations, the generator provides reliable performance
    without additional complications.
    Automatic Shutdown System: Equipped with a safety system that shuts down the engine in case of
    anomalies, such as low fuel level, insufficient oil pressure, or high coolant temperature.
    Ease of Maintenance: Designed for easy access during maintenance, ensuring a long operational life
    and uninterrupted performance.

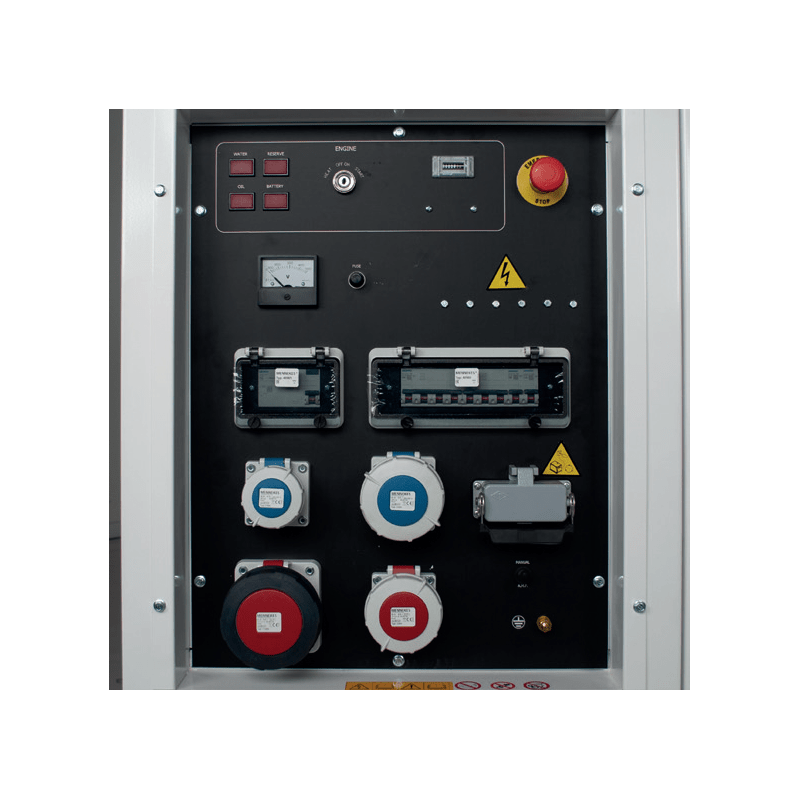

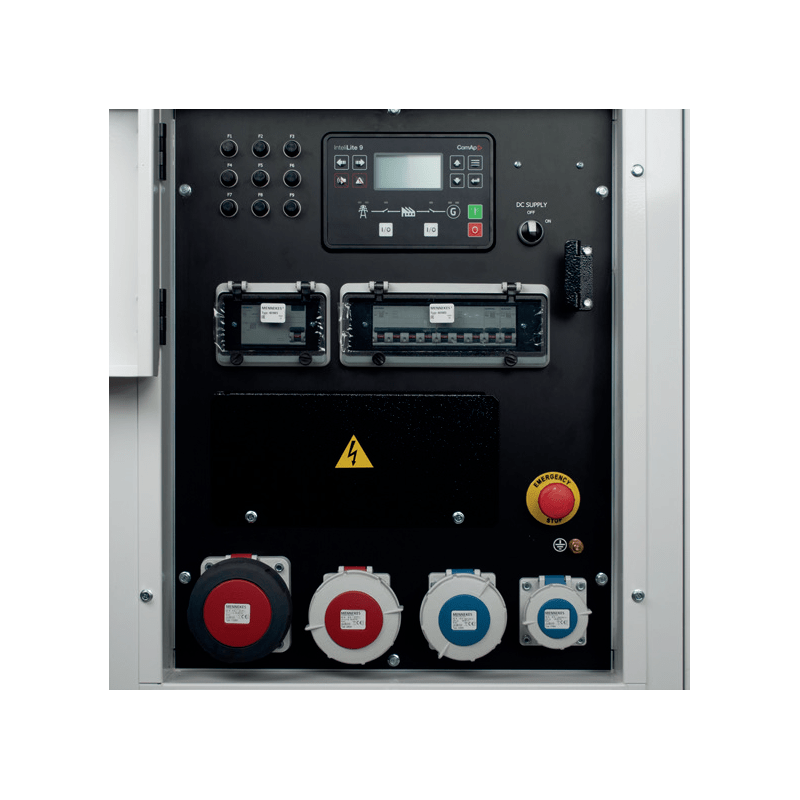

    Control Panel and Outlets: Equipped with a control panel featuring multiple outlets for both
    single-phase and three-phase connections, offering great versatility.

    Technical Specifications of the GENSET MG33ISY Stage0 1000lt:

    Maximum Power: 33 kVA (three-phase) and 11 kVA (single-phase) with a power factor of cos φ 0.8.
    Fuel Consumption: 6.4 liters/hour at 80% load.
    Noise Level: 96 dB (71 dB at 7 meters), ensuring relatively quiet operation.
    Dimensions: 1910x915x2274 mm, suitable for confined spaces.
    Weight: 1370 kg, making transportation and handling easier.

    Standard Equipment:

    Hour counter and voltmeter
    Emergency stop button
    Fuel level indicator
    Power outlet protections and differential switch
    Connector for AMF-ATS panel and remote control
    Forklifting tubes and lifting hook

    Liquid collection basin

    The GENSET MG33ISY Stage0 1000lt is an excellent choice for those seeking a powerful and
    reliable generator with simple maintenance and long-term operation capabilities.
    This model represents an advanced and versatile solution, ideal for a wide range of industrial and
    commercial applications. With its technical specifications and standard equipment,
    the GENSET MG33ISY Generator Group Stage0 is synonymous with quality and performance in the
    generator industry.

    Looking for a power generator with different characteristics? HERE you can find the full range of products from GENSET or other brands specializing in the field

    Images and technical data are not binding and may be subject to revision by the supplier.
