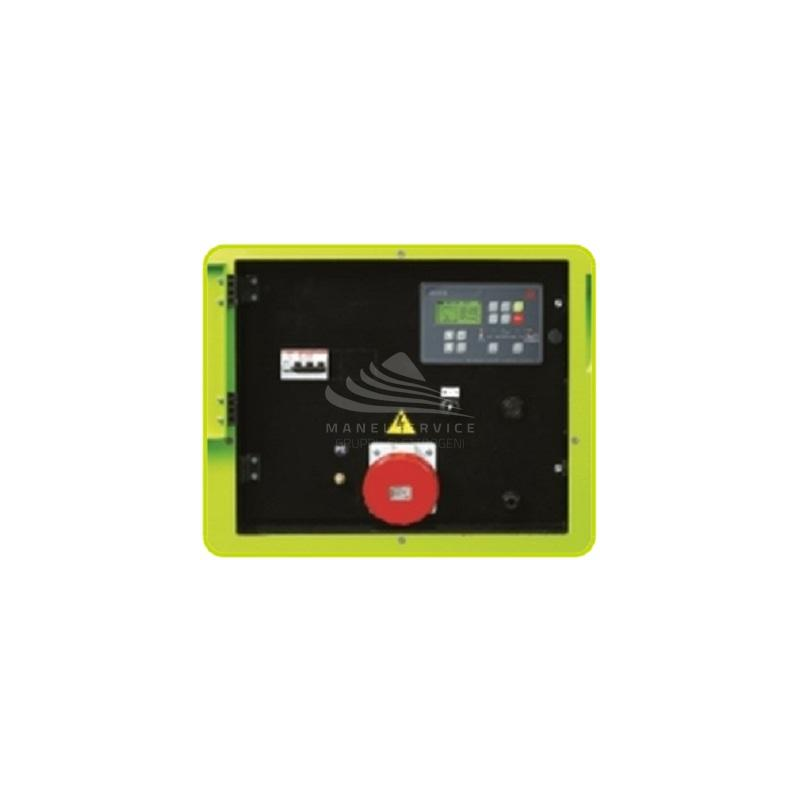

PRAMAC GSL42D COFANATO CON QUADRO COMANDO AUTOMATICO

PRAMAC GSL42D
search
  • PRAMAC GSL42D
  • PRAMAC GSL42D
PRAMAC
SU390TDAP02 /
New product

OUT OF PRODUCTION

Maximum power Three-phase: 35.62 KW
Power continuous use Three-phase: 33.85 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Deutz AG BF4M2011
Starting: Electric
Consumption: 11.2 Lt/h at 100% of the load
Length: 2000 mm
Width: 920 mm
Height: 1310 mm
Weight: 824 Kg
AVR

Technical features
Phase
Three phase
Maximum power three phase (KW)
35.62
Continuous power three phase (KW)
33.85
Maximum power three phase (KVA)
44.52
Continuous power three phase (KVA)
42.31
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
400
Sockets configuration
1 x 400V 63A 3P+N+T CEE
Engine
Deutz AG BF4M2011, turbo
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
3110
Number cylinders
4
Cylinders' position
In line
Oil capacity (L)
10
Cooling
Oil
Alternator
Mecc Alte ECO/P32-3S/4, brushless
Poles
4
Fuel tank capacity (L)
68
Consumption (L/h)
8.1 at 75% of the load / 11.2 at 100% of the load
Running time (h)
8.4 at 75% of the load / 6 at 100% of the load
Acoustic power
89 dB(A)
Acoustic pressure
60 dB(A) at 7 m
Length (mm)
2000
Width (mm)
920
Height (mm)
1310
Dry weight (Kg)
824
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
Optional
Voltage regulator
AVR
Engine manufacturer
Deutz
Details

Motore Diesel. Predisposto per Biodiesel. Raffreddamento ad olio con radiatore. Silenziatore industriale. Base forcabile con carrelli. Liquidi motore e batteria carica

Technical Sheet / Manuals

Scheda tecnica GSL42D COFANATO

(879.1k)

Technical data GSL42D COVERED

(878.26k)

Disegno installazione GSL42D

(415.36k)

Disegno installazione GSL42D EFT

(428.28k)
