CGM v15LW-C20 WITH MANUAL CONTROL PANEL

  • New
CGM v15LW-C20 WITH MANUAL CONTROL PANEL
search
  • CGM v15LW-C20 WITH MANUAL CONTROL PANEL

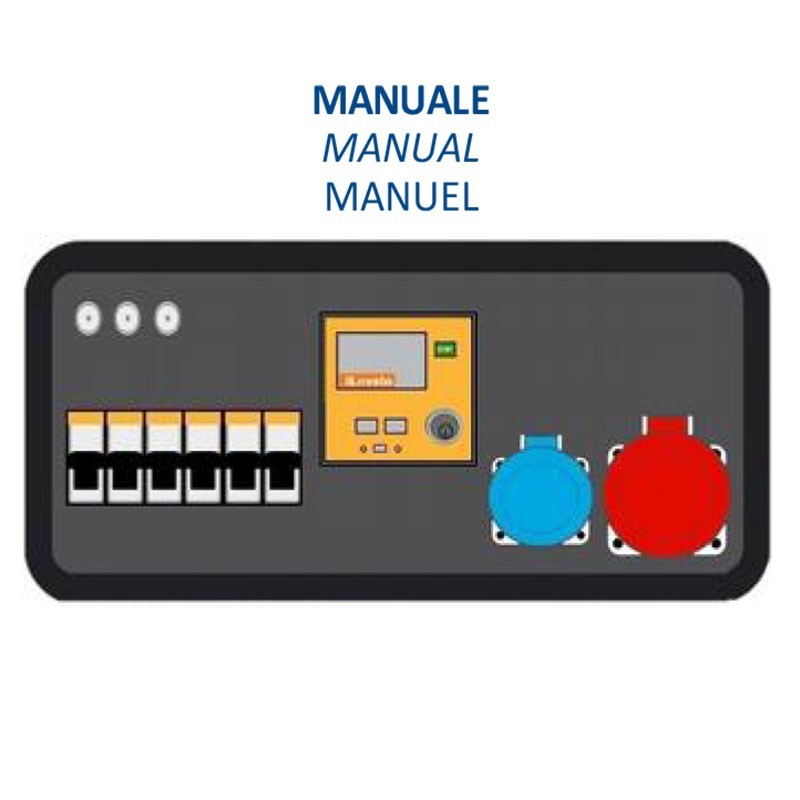

  • MANUAL CONTROL PANEL

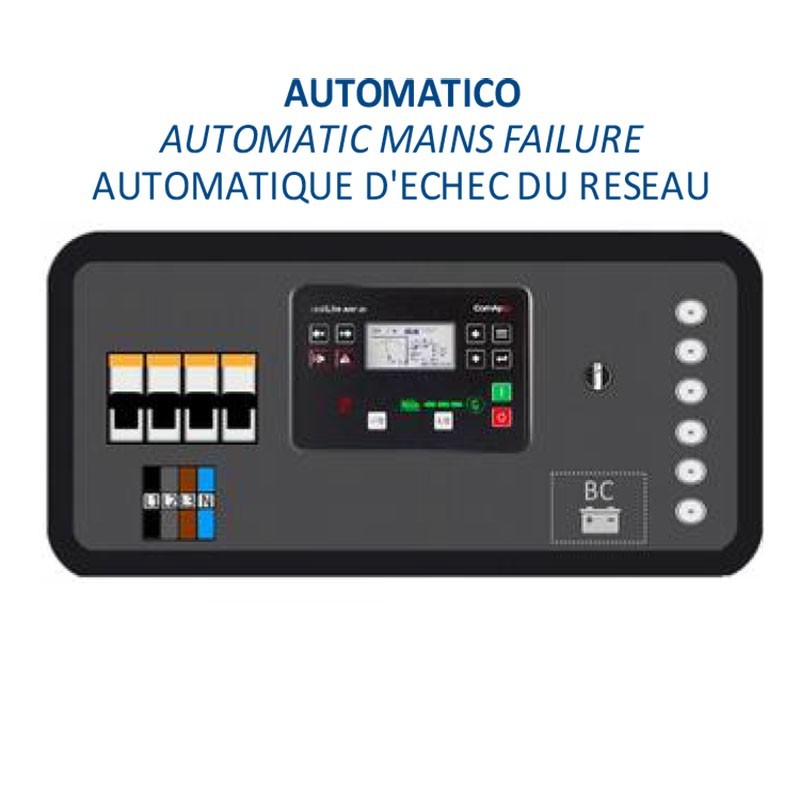

  • AUTOMATIC CONTROL PANEL
CGM
CGM v15LW-C20 MANUALE /
New product

OUT OF PRODUCTION

Phase type: Single-phase / Three-phase
Maximum three-phase power: 13.2 KW / 16.5 KVA
Three-phase continuous power: 12 KW / 15 KVA
Maximum single-phase power: 4.4 KW / 5.5 KVA
Single-phase continuous use power: 4 KW / 5 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: KOHLER KDW1603
Engine speed: 1500 rpm
Starting: Electric
Consumption: 3.7 Lt/h at 75% load
Length: 1580 mm
Width: 700 mm
Height: 1050 mm
Weight: 500 Kg
Super-silenced
AVR

Technical features
Phase
Single phase / Three phase
Maximum power single phase (KW)
4.4
Continuous power single phase (KW)
4
Maximum power single phase (KVA)
5.5
Continuous power single phase (KVA)
5
Maximum power three phase (KW)
13.2
Continuous power three phase (KW)
12
Maximum power three phase (KVA)
16.5
Continuous power three phase (KVA)
15
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE
Engine
Kohler KDW1603
Emissions Regulations
Stage 5
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric
Engine capacity (cm³)
1649
Number cylinders
3
Cooling
Water
Alternator
Brushless
Poles
4
Protection degree
IP44
Bore x stroke (mm)
88 x 90.4
Fuel tank capacity (L)
55
Consumption (L/h)
3..7
Running time (h)
14.9
Acoustic pressure
68 dB(A) at 7 m
Length (mm)
1580
Width (mm)
700
Height (mm)
1050
Dry weight (Kg)
500
AVR
Yes
Silenced
Yes
Super silenced
Yes
Product type
Generator
ATS Switch device
No
Voltage regulator
AVR
Engine manufacturer
Kohler
Details

CGM v15LW-C20 Single/three-phase 15KVA generator super-silenced with manual control panel

The CGM v15LW-C20 is a single/three phase 15KVA generator with a 1500 rpm Kohler diesel engine, compact and easy to use, mounted on a fixed base. This generator is equipped with a soundproofed cabin made of structural steel plate, weatherproofing and an interior lining of soundproofing material with high noise reduction, which makes the CGM v15LW-C20 super-silenced.
The CGM v15LW-C20 generator consists of a Linz, Stamford or Mecc Alte, self-excited, brushless alternator with AVR voltage regulator. The CGM v15LW-C20 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 3,7 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
This generator is perfect for use outdoors, such as on construction sites.
The CGM v15LW-C20 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM v15LW-C20 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 13.2 KW / 16.5 KVA
Three-phase continuous power: 12 KW / 15 KVA
Maximum single-phase power: 4.4 KW / 5.5 KVA
Single-phase continuous use power: 4 KW / 5 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: KOHLER KDW1603
Engine speed: 1500 rpm
Starting: Electric
Consumption: 3.7 Lt/h at 75% load
Length: 1580 mm
Width: 700 mm
Height: 1050 mm
Weight: 500 Kg
Super-silenced
AVR

If you are looking for a product like the CGM v15LW-C20 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
