Data sheet

Phase

Three phase

Maximum power three phase (KW)

25.55

Continuous power three phase (KW)

24.31

Maximum power three phase (KVA)

31.94

Continuous power three phase (KVA)

30.39

Fuel

Diesel

Frequency (Hz)

50

Voltage (V)

400

Sockets configuration

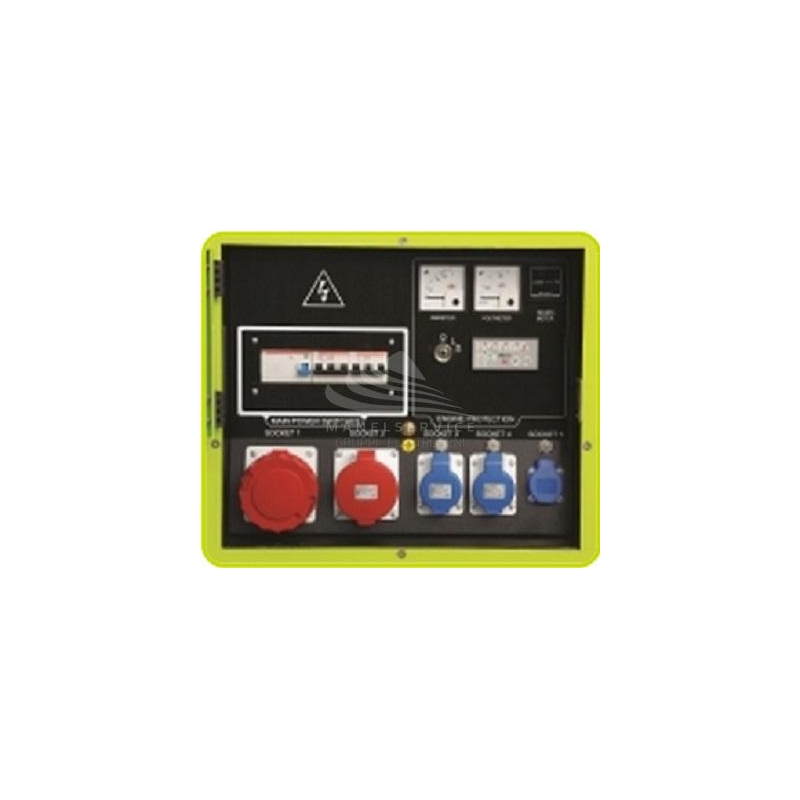

1 x 400V 63A 3P+N+T - 1 x 400V 32A 3P+N+T CEE - 2 x 230V 16A 2P+T CEE - 1 x 230V 16A SCHUKO

Engine

Deutz AG F4M2011, naturally aspirated

Speed governor

Mechanical

Starting system

Electric

Engine capacity (cm³)

3110

Number cylinders

4

Cylinders' position

In line

Oil capacity (L)

10

Cooling

Oil

Alternator

Mecc Alte ECP28-VL/4, brushless

Poles

4

Fuel tank capacity (L)

68

Consumption (L/h)

5.7 at 75% of the load / 8 at 100% of the load

Running time (h)

11.9 at 75% of the load / 8.4 at 100% of the load

Acoustic power

89 dB(A)

Acoustic pressure

60 dB(A) at 7 m

Length (mm)

2005

Width (mm)

948

Height (mm)

1308

Dry weight (Kg)

760

Silenced

Yes

Super silenced

Yes

Product type

Generator

ATS Switch device

No

Voltage regulator

AVR

Engine manufacturer

Deutz
