GENERATOR 10 KVA SUPER SILENCED SINGLE PHASE STAGEV

Name: GENERATOR 10 KVA SUPER SILENCED SINGLE PHASE STAGEV
Brand: NO BRAND
SKU: GD10KVAM
Price: 7856.8 EUR
Availability: InStock

Reference GD10KVAM

Phase Type: Single-Phase
Maximum Single-Phase Power: 10 KVA / 8 KW
Continuous Single-Phase Power: 9 KVA / 7.2 KW
VAC Voltage: 230 V
Frequency (Hz): 50
Starting Frame: Electric
Engine: Kubota D1105
Emissions Standard: STAGE V
RPM: 1500
Power supply: Diesel
Fuel tank capacity: 40 l
Consumption @ 75 % load: 2 l/h
Autonomy @ 75 % load: 20 h
Acoustic pressure: 95 dB(A)
Length: 1357 mm
Width: 707 mm
Height: 942 mm
Net weight: 350 Kg

List price

13,725.00 € tax incl.

11,250.00 € tax excl.

Discounted Price

7,856.80 € tax incl.

6,440.00 € tax excl.

Shipping from 129.32 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference GD10KVAM

Data sheet

Phase: Single phase
Maximum power single phase (KW): 8
Continuous power single phase (KW): 7.2
Maximum power single phase (KVA): 10
Continuous power single phase (KVA): 9
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 32A
Engine: Kubota D1105
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1123
Number cylinders: 3
Cooling: Water
Alternator: Synchronous
Protection degree: IP23
Motor insulation class: H
Fuel tank capacity (L): 40
Consumption (L/h): 2 at 75% of the load
Running time (h): 20 at 75% of the load
Acoustic power: 95 dB(A)
Acoustic pressure: 70 dB(A) at 7 m
Length (mm): 1357
Width (mm): 707
Height (mm): 942
Dry weight (Kg): 350
Silenced: Yes
Super silenced: Yes
Product type: Generator
Voltage regulator: Capacitor
Engine manufacturer: Kubota

Specific References

Condition New

GENERATOR 10 KVA SUPERSILENCED SINGLE PHASE STAGEV

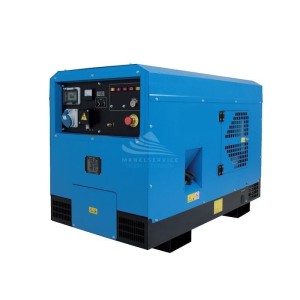

The Generator single phase is equipped with Kubota D1105 STAGEV engine with Diesel power supply, able to deliver a power of 10 KVA.

This generator is equipped with electric start, with 12 V battery and enclosure that lowers noise emissions and makes it supersilenced.

The group is equipped with a soundproof cabin, thanks to which there is a drastic reduction of noise pollution up to 70 dB recorded at a distance of 7 meters, thanks to these features the group can be considered super silenced.

The generator guarantees efficient and silent operation thanks to the Kubota D1105 engine, which can deliver a maximum power of 10KVA.

The generator includes:

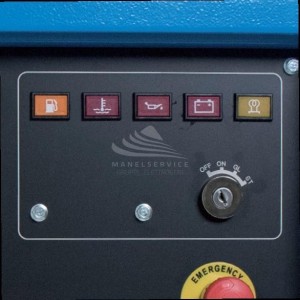

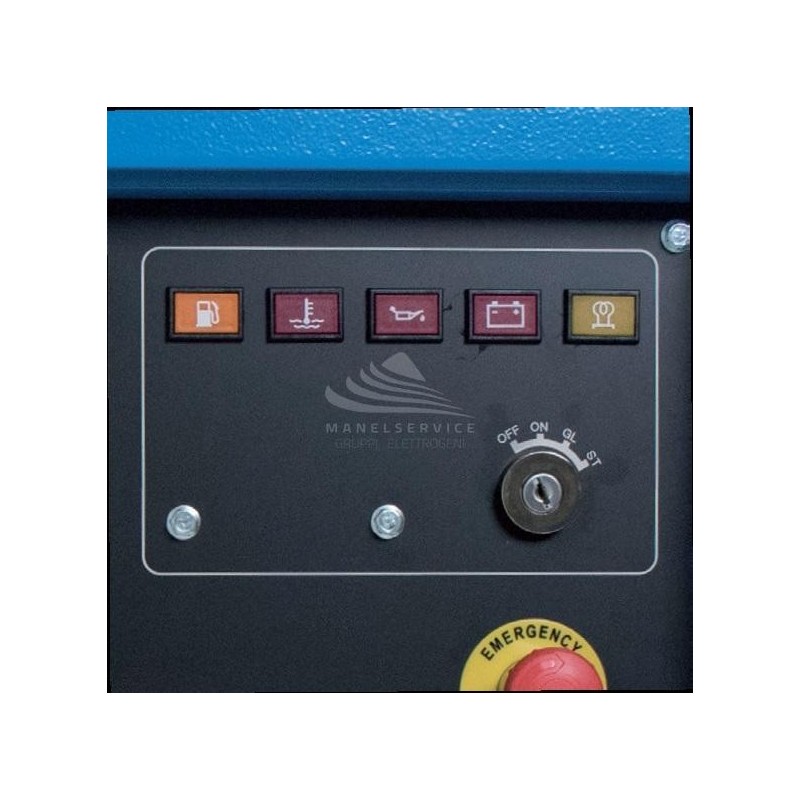

• Automatic engine stop device with warning lights for:
- battery charge failure
- high water temperature
- low fuel level
- low oil pressure
• 1 single-phase EEC 230V - 32A socket
• 1 single-phase 230V socket
• 12 V battery
• Power output protections
• Differential switch
• Voltmeter
• Hour meter

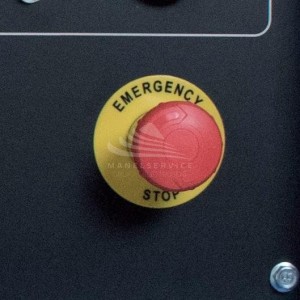

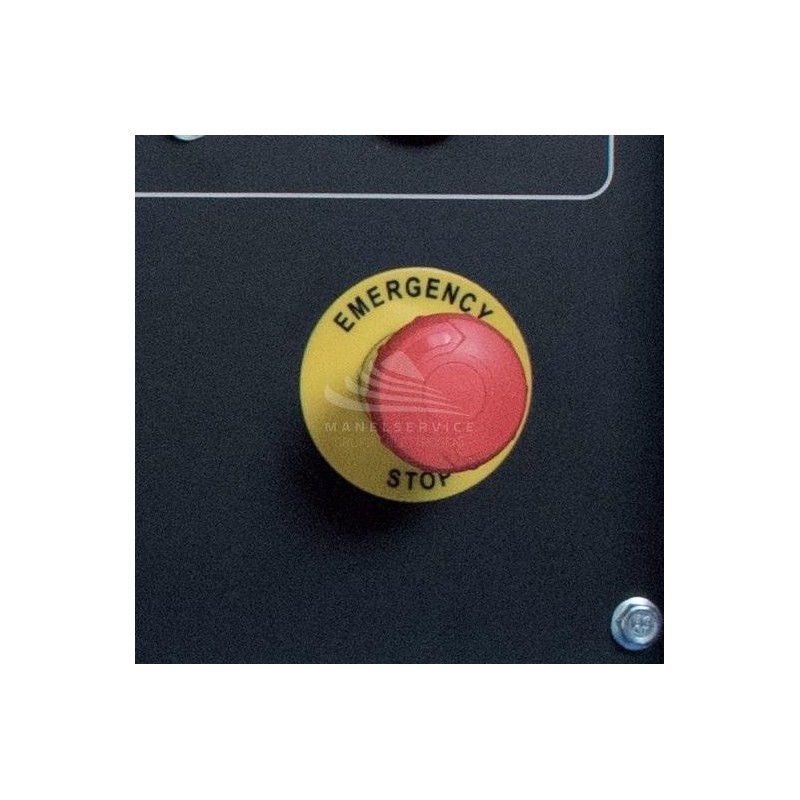

• Emergency stop button
• Fork passage

STAGEV EMISSION STANDARDS

This Generator is equipped with STAGEV "mobile" motorization, as required by the European Regulation 2016/1628. These new motorizations allow to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction in environmental impact of 200% compared to standard motorizations.

TECHNICAL FEATURES

Are you looking for a generating set with different technical characteristics? HERE you can find the area dedicated to generating sets of specialized brands.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
