MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR

      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR

      Type of phase: Single-phase / Three-phase
      Continuous single-phase power: 10 KVA / 8 KW
      Maximum single-phase power: 11 KVA / 8.8 KW
      Continuous three-phase power: 30 KVA / 24 KW
      Three-phase maximum power: 33 KVA / 26.4 KW
      VAC voltage: 230 / 400V
      Frequency (Hz): 50
      Voltage regulator: AVR
      Starting panel: Electric
      Engine: Yanmar 4TNV98
      Emissions standard: Not emitted
      Revolutions per minute: 1500 rpm
      Power supply: Diesel
      Sockets panel: 2xCEE 16A 230V / 1xCEE 16A 400V / 1xCEE 63A 400V
      Tank capacity: 40 l
      Running time: 6.25 h at 75% load
      Consumption: 6.4 l / h at 75% load
      Acoustic pressure: 72 dB (A) @ 7 m
      Length: 1640 mm
      Width: 770 mm
      Height: 1076 mm
      Net weight: 690 Kg

      List price
      15,372.00 € tax incl.
      12,600.00 € tax excl.
      Discounted Price
      15,372.00 € tax incl.
      12,600.00 € tax excl.
      Shipping Free to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR

      PERSONAL DATA


      Ask a question
      Product: MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      Offer on letterhead
      Product: MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR
      MASE
      008831MA

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      8.8
      Continuous power single phase (KW)
      8
      Maximum power single phase (KVA)
      11
      Continuous power single phase (KVA)
      10
      Maximum power three phase (KW)
      26.4
      Continuous power three phase (KW)
      24
      Maximum power three phase (KVA)
      33
      Continuous power three phase (KVA)
      30
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1 x 400V 63A 3P+N+T - 1 x 400V 16A 3P+T - 2 x 230V 16A 2P+T
      Engine
      Yanmar 4TNV98, 4 stroke
      Emissions Regulations
      Not Emitted
      Engine rpm (rpm)
      1500
      Speed governor
      Mechanical
      Starting system
      Electric
      Engine capacity (cm³)
      3319
      Number cylinders
      4
      Oil capacity (L)
      10
      Cooling
      Water
      Inyección
      Direct
      Alternator
      Synchronous self-excited, brushless
      Poles
      4
      Lubrication
      Forced
      Fuel tank capacity (L)
      40
      Consumption (L/h)
      6.4 at 75% load
      Running time (h)
      6.25 at 75% of the load
      Acoustic power
      97 dB(A)
      Acoustic pressure
      72 dB(A) at 7 m
      Length (mm)
      1640
      Width (mm)
      770
      Height (mm)
      1076
      Dry weight (Kg)
      690
      Silenced
      Yes
      Super silenced
      Yes
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Yanmar

      Specific References

      New

      MASE MPF 33 BA GENERATOR 33KVA SINGLE-PHASE / THREE-PHASE AVR

      The MASE MPF 33 BA single/three-phase generator is equipped with a Yanmar 4TNV98 diesel engine, capable of delivering a power of 33 KVA.

      This generator is equipped with electric start with 12 V battery, and a low fuel consumption operation, in fact it consumes only 6.4 liters / hour at 75% of the load, combined with a large 40 l tank of maximum capacity, it will give you an autonomy of about 6 hours.

      The MASE MPF 33 BA is equipped with a soundproofed cabin, folded and electro-welded, with protection class IP23. This cabin allows an incredible reduction of noise pollution, up to obtaining an acoustic pressure of only 72 dB (A) recorded at a distance of 7 meters.

      AVR VOLTAGE REGULATOR

      The MASE MPF 33 BA generator is supplied complete with voltage regulator. The AVR is a device that allows you to keep the output more constant and less dependent on the load . Thanks to the AVR there are fewer current drops or peaks and this makes the use of the various connected devices safer, improving their performance and duration.

      ATS AUTOMATIC START-UP PANEL PREPARATION

      Thanks to this panel and to your MASE MPF 33 BA with automatic start panel you will no longer have to worry about blackouts since, in the event of a power failure, the group will automatically switch on and allow you to continue your business normally.

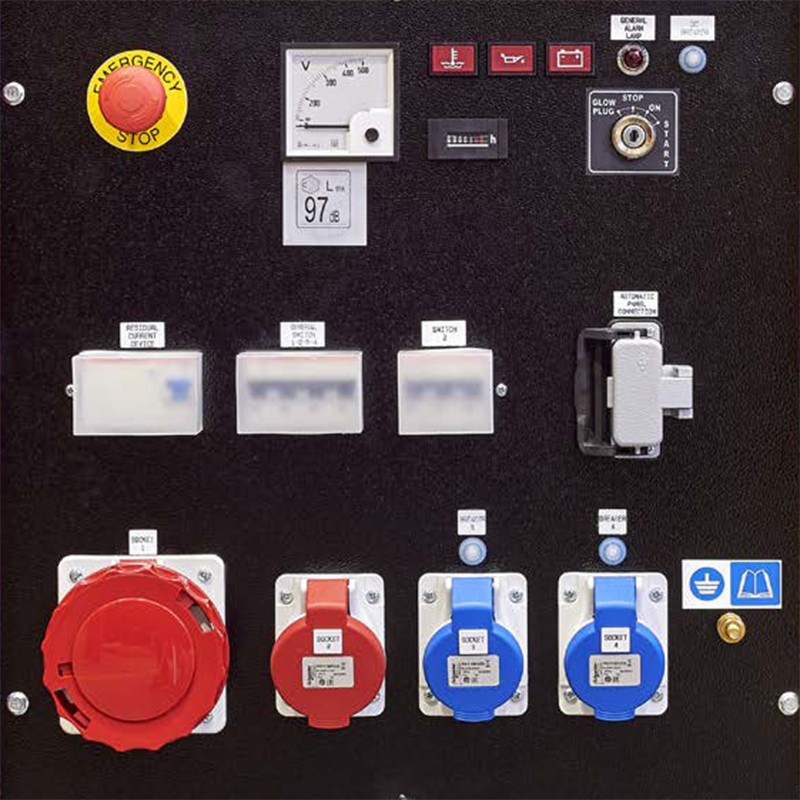

      The control panel of the MASE MPF 33 BA is made up of:

      - low oil pressure and high water temperature warning lights
      - Voltmeter
      - Hour counter
      - Differential magnetothermic switch
      - Emergency stop button
      - 1 CEE 63A, 400V - 50 Hz three-phase socket
      - 1 CEE 16A, 400V - 50 Hz three-phase socket
      - 2 CEE 16A, 230V - 50 Hz single-phase sockets
      - Terminal block for AMF operation / ATS

      TECHNICAL CHARACTERISTICS OF MASE MPF 33 BA

      Type of phase: Single/Three-phase
      Continuous singlephase power: 10 KVA / 8 KW
      Maximum singlephase power: 11 KVA / 8.8 KW
      Continuous threephase power: 30 KVA / 24 KW
      Threephase maximum power: 33 KVA / 26.4 KW
      VAC voltage: 230 / 400V
      Frequency (Hz): 50
      Voltage regulator: AVR
      Starting panel: Electric
      Engine: Yanmar 4TNV98
      Emissions standard: Not emitted
      Revolutions per minute: 1500 rpm
      Fuel: Diesel
      Sockets panel: 2xCEE 16A 230V / 1xCEE 16A 400V / 1xCEE 63A 400V
      Tank capacity: 40 l
      Running time: 6.25 h at 75% load
      Consumption: 6.4 l / h at 75% load
      Acoustic pressure: 72 dB (A) @ 7 m

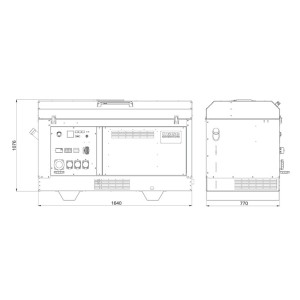

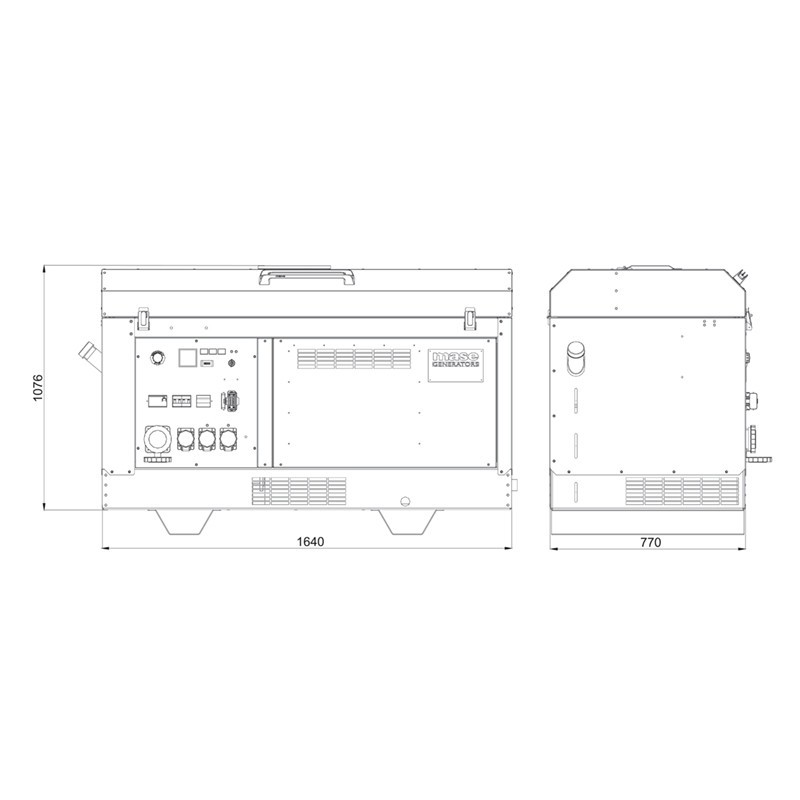

      Length: 1640 mm
      Width: 770 mm
      Height: 1076 mm
      Net weight: 690 Kg

      Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to MASE generators or other specialized brands.

      Non-binding images and technical data.

      GASOLINE TANK 20 LT | Manel ServiceGASOLINE TANK 20 LT
          ACCESSORIES / SPARE PARTS
          Metal approved 20 lt gasoline jerry can
          46.00 €Price
          KIT MESSA A TERRA 10 METRI
              ACCESSORIES / SPARE PARTS
              GROUNDING KIT 10 METRES
              90.00 €Price
              KIT MESSA A TERRA 25 METRI
                  ACCESSORIES / SPARE PARTS
                  GROUNDING KIT 25 METRES
                  103.00 €Price
                  KIT MESSA A TERRA 35 METRI
                      ACCESSORIES / SPARE PARTS
                      GROUNDING KIT 35 METRES
                      107.00 €Price
                      MASE CARRELLO 63599
                          FOR GENERATING SETS
                          MASE REMOTE CONTROL
                          375.00 €Price
                          MASE CARRELLO 63599
                              FOR GENERATING SETS

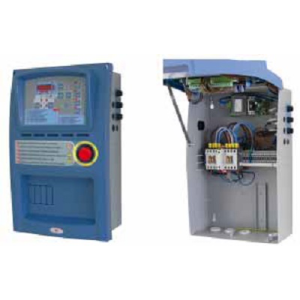

                              MASE AUTOMATIC PANEL AMF + ATS
