GENERATOR SUPER SILENCED THREE-PHASE 88 KVA AVR

GT88KVAT
      GENERATOR SUPER SILENCED THREE-PHASE 88 KVA AVR
      GENERATOR SUPER SILENCED THREE-PHASE 88 KVA AVR
      GENERATOR SUPER SILENCED THREE-PHASE 88 KVA AVR

      Phase type: Three-phase
      Maximum power: 88 KVA / 70.4 KW
      Continuous use power: 80 KVA / 64 KW
      Voltage: 400 V
      Frequency: 50 Hz
      Engine: BAUDOUIN 4M10G88/5
      Fuel: Diesel
      Starting: Electric / Automatic
      Socket panel: Terminal board
      Emissions standard: Not emitted
      Voltage regulator: AVR
      Tank capacity: 145 l
      Consumption: 13.5 Lt / h at 75% load
      Autonomy: 10.7 h at 75% load
      Length: 2620 mm
      Width: 1100 mm
      Height: 1480 mm
      Dry weight: 1380 Kg

      List price
      28,676.10 € tax incl.
      23,505.00 € tax excl.
      Discounted Price
      14,653.42 € tax incl.
      12,011.00 € tax excl.
      Shipping from 518.50 € to Italy buy it today.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      NO BRAND
      GT88KVAT

      Data sheet

      Phase
      Three phase
      Maximum power three phase (KW)
      70.4
      Continuous power three phase (KW)
      64
      Maximum power three phase (KVA)
      88
      Continuous power three phase (KVA)
      80
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      400
      Sockets configuration
      Terminal box
      Engine
      BAUDOUIN 4M10G88/5
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      1500
      Speed governor
      Electronic
      Starting system
      Electric / Automatic
      Engine capacity (cm³)
      4090
      Number cylinders
      4
      Cooling
      Water
      Alternator
      STAMFORD UCI224G
      Poles
      4
      Fuel tank capacity (L)
      145
      Consumption (L/h)
      13.5
      Running time (h)
      10.7
      Length (mm)
      2620
      Width (mm)
      1100
      Height (mm)
      1480
      Dry weight (Kg)
      1380
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      Optional
      Voltage regulator
      AVR
      Engine manufacturer
      Baudouin
      Precision of voltage regulation
      ± 1%

      Specific References

      New

      GENERATOR SUPER SILENCED THREE-PHASE 88 KVA AVR

      This generator three-phase is equipped with a BAUDOUIN 4M10G88/5 engine with Diesel power supply, capable of delivering a power of 88 KVA complete with AVR voltage regulator.

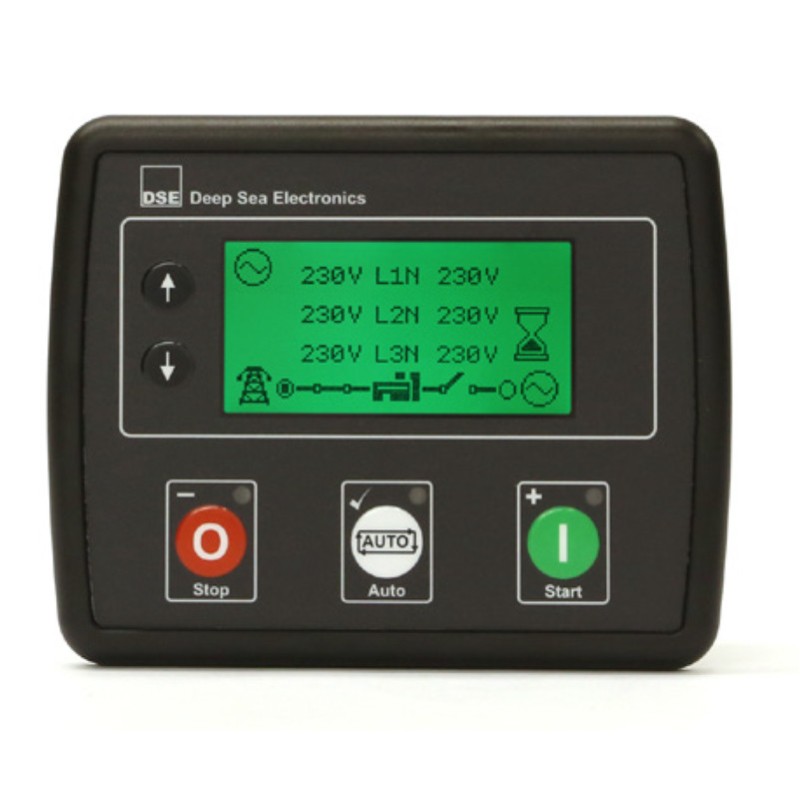

      This generator set is equipped with electric start, with 12V battery, and is equipped with DEEP SEA 4520 MKII compact control panel, that monitoring a large number of engine parameters, the module is able to display warning, shutdown and engine status information on the backlit LCD display.

      The generator is equipped with a soundproof cabin, thanks to which there is a drastic reduction of noise pollution, thanks to these features the generator can be considered super silenced.

      The genset guarantees an efficient and silent operation thanks to the BAUDOUIN 4M10G88/5 engine, which can deliver a maximum power of 88KVA. This generator, in addition, is equipped with electric or automatic start-up through ATS panel, which allows the ignition in case of blackout.

      AUTOMATIC TRANSFER SWITCH ATS

      The generator is predisposed for the use of automatic transfer switch ATS. Thanks to which you will no longer have to worry about blackouts because if the power supply fails this panel is able to automatically turn on the generator and allow you to continue your business without losing your work data.

      VOLTAGE REGULATOR AVR

      The AVR voltage regulator allows the generator to deliver stable energy and then be able to connect equipment with delicate electronics such as computers, appliances, smartphones and tablets: the generator is therefore ideal for use at home, camping, for hobbies and leisure, but also for construction sites and craftsmen.

      Control panel composition:

      1 - On/Off key;
      2 - Emergency stop button;
      3 - DEEP SEA® 4520 MKII control unit;
      4 - Main switch of primary brand.

      TECHNICAL CHARACTERISTICS

      Phase type: Three-phase
      Maximum power: 88 KVA / 70.4 KW
      Continuous use power: 80 KVA / 64 KW
      Voltage: 400 V
      Frequency: 50 Hz
      Engine: BAUDOUIN 4M10G88/5
      Fuel: Diesel
      Starting: Electric / Automatic
      Socket panel: Terminal board
      Emissions standard: Not emitted
      Voltage regulator: AVR
      Tank capacity: 145 l
      Consumption: 13.5 Lt / h at 75% load
      Autonomy: 10.7 h at 75% load
      Length: 2620 mm
      Width: 1100 mm
      Height: 1480 mm
      Dry weight: 1380 Kg

      Are you looking for a generator with different technical characteristics? HERE you can find the area dedicated to generator of specialized brands.

      Images and technical data are not binding

      amet metus hendrerit, congue tortor vitae, aliquet nisi. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Mauris sit amet maximus diam, non dapibus arcu. Ut eu consequat tellus. Phasellus tincidunt dignissim nulla lobortis scelerisque. Quisque non fermentum augue, quis placerat orci. Maecenas finibus nunc mattis, porta lorem in, placerat orci. Fusce dictum dolor sit amet ante molestie, ut viverra nunc elementum. Nulla laoreet cursus est, in

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
