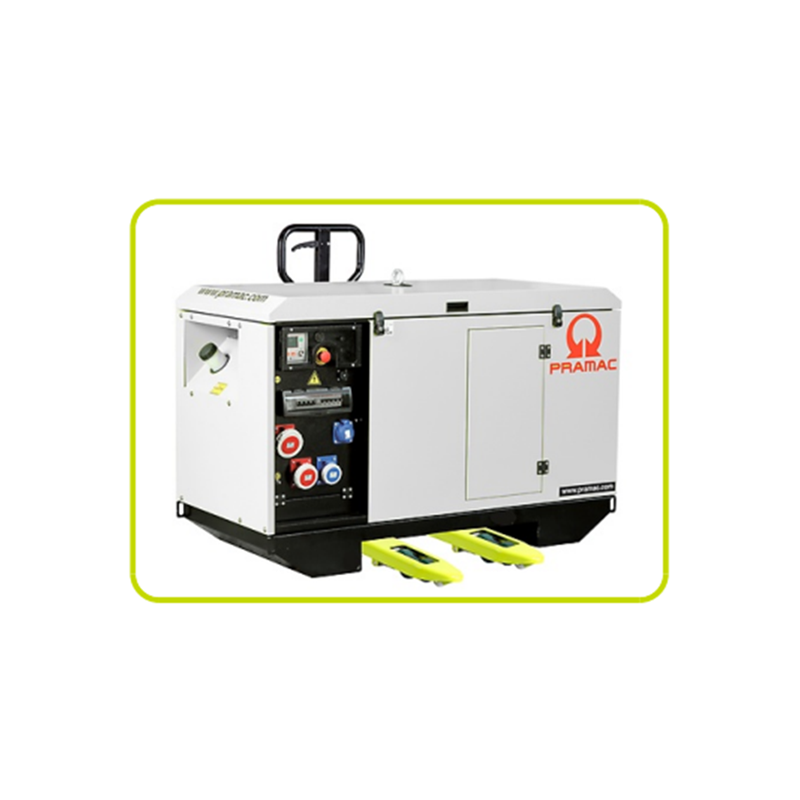

PRAMAC P15000 GENERATOR 14KVA SINGLE-PHASE - THREE-PHASE STAGE V
The PRAMAC P15000 single-phase/three-phase generator is equipped with a Stage V Honda GX690 petrol engine, capable of delivering a power output of 14 kVA.
The PRAMAC P15000 can be supplied with or without AVR.
The PRAMAC P15000 generator is a powerful device designed to provide a reliable source of energy, both in single-phase and three-phase modes, with a capacity of 14 kVA. This generator is known for its ease of installation and operation, making starting and stopping extremely simple thanks to clear and intuitive controls. In addition, it is equipped with an automatic shutdown function in case of low oil level, ensuring engine protection.
One of the distinctive strengths of this generator is the high quality of its components, which guarantees reliable and long-lasting performance. Despite its power, the generator is surprisingly lightweight and compact, making it extremely practical to use and transport under any circumstances. Its modern design adds an aesthetic touch to efficiency.
With a 40-litre tank, the PRAMAC P15000 generator has an incredible fuel consumption of only 6 litres per hour, ensuring an autonomy of around 6 continuous operating hours. This fuel efficiency makes it an economical and sustainable choice for providing power in emergency situations or in places without a stable electricity supply.
The generator is equipped with electric start, which further simplifies its use. In addition, it is fitted with a digital control unit and an advanced protection system to ensure safe operation and safeguard the genset. These features make it ideal for a wide range of applications, including construction sites, outdoor events, and emergency situations.
CONTROL SECTION
• CONTROL UNIT with 3-position key: OFF, ON local start, REM remote start
• 2-wire remote start/stop (REM)
• Connector for RSS panel (available as an accessory)
• Alarm buzzer

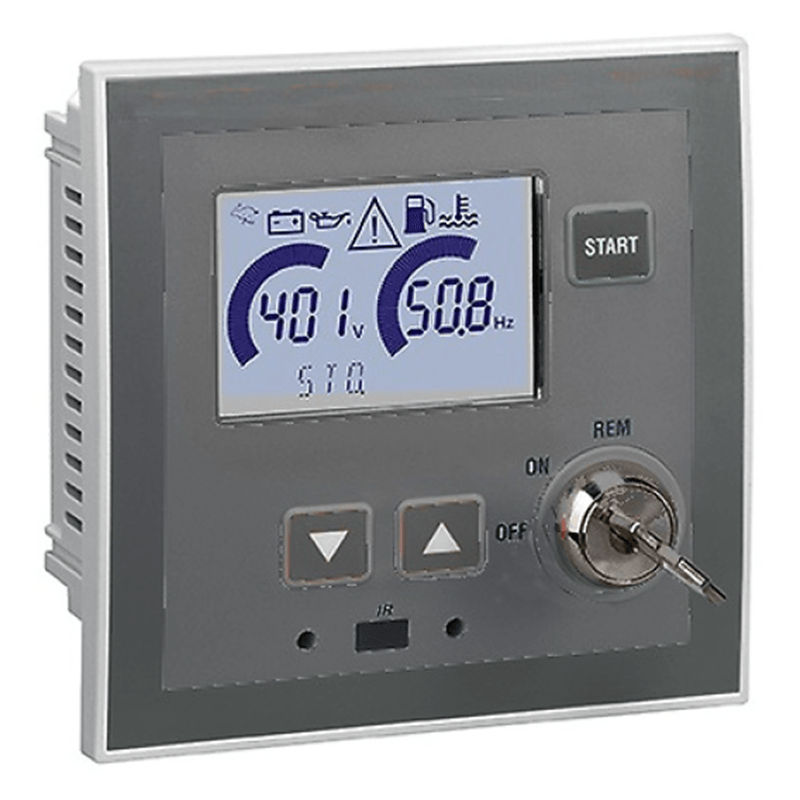

CONTROL PANEL
• Display: LCD with icons (52x35 mm)
• Group parameters: V - Hz - RPM - A (single-phase) - kVA - kWe - Fuel level (%)
• Parameter control and/or firmware transfer via NFC smart connection
STAGE V EMISSION STANDARD
The PRAMAC P15000 is equipped with a Stage V "mobile" engine, as required by European Regulation 2016/1628. These new engines significantly reduce particulate and nitrogen oxide emissions released into the environment by the generator, ensuring a 200% reduction in environmental impact compared to standard engines.
TECHNICAL SPECIFICATIONS PRAMAC P15000:
Phase Type: Single-phase / Three-phase
Continuous Power: 14 kVA / 11.2 kW
Maximum Power: 15.7 kVA / 12.6 kW
Voltage (VAC): 230/400 V
Frequency (Hz): 50
Voltage Regulator: AVR (Optional)
Starting: Electric
Engine: Honda GX690
Speed (RPM): 3000
Emission Standard: Stage V
Fuel: Gasoline

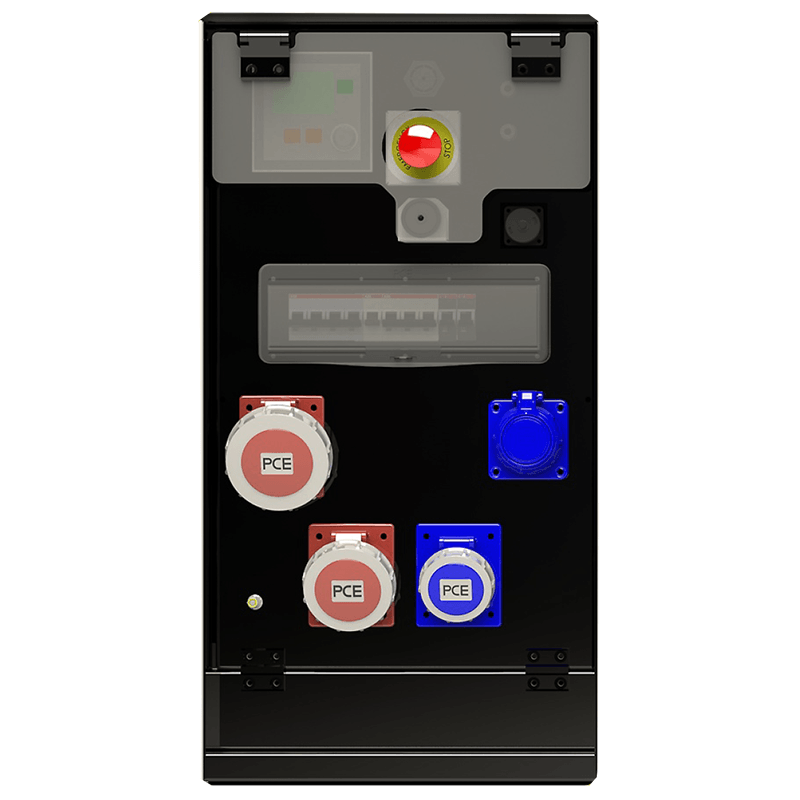

Socket Panel: 1 × Schuko 230V 16A - 1 × CEE 230V 16A 2P - 1 × CEE 400V 16A 3P - 1 × CEE 400V 32A 3P
Fuel Tank Capacity: 40 L
Fuel Consumption @ 75% Load: 5.96 L/h
Runtime @ 75% Load: 6.71 h
Sound Pressure: 64 dB(A) @ 7 m
Length: 1205 mm
Width: 754 mm
Height: 1035 mm
Net Weight: 325 kg
