CUMMINS C17D5Q GENERATOR 16,5KVA SINGLE-PHASE/THREE-PHASE SILENCED

Name: CUMMINS C17D5Q GENERATOR 16,5KVA SINGLE-PHASE/THREE-PHASE SILENCED
Brand: CUMMINS ONAN
SKU: C17D5Q
Price: 8637.6 EUR
Availability: InStock

Reference C17D5Q

Phase type: Single-phase / Three-phase
Continuous power: 15 KVA / 12 KW
Maximum power: 16.5 KVA / 13 KW
Engine: Cummins X2.5-G2
Power supply: Diesel
Engine speed: 1500 rpm
Regulation of revolutions: Mechanical
Alternator: Stamford S0L2-P1
Emissions standard: Stage ZERO
Starter: Electric / Automatic
Voltage regulator: Compound
Voltage: 230/400 V
Frequency: 50 Hz
Socket panel: Terminal box
Tank capacity: 55 l
Consumption at 75% of the load: 3.43 l/h
Autonomy at 75% of the load: 16 h
Length: 1960 mm
Width: 820 mm
Height: 1285 mm
Dry weight: 699 kg

List price

18,492.76 € tax incl.

15,158.00 € tax excl.

Discounted Price

8,637.60 € tax incl.

7,080.00 € tax excl.

Shipping from 262.30 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference C17D5Q

Data sheet

Phase: Single phase / Three phase
Maximum power three phase (KW): 13
Continuous power three phase (KW): 12
Maximum power three phase (KVA): 5.5
Continuous power three phase (KVA): 15
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Morsettiera
Engine: Cummins X2.5-G2
Emissions Regulations
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric Automatic/Manual
Number cylinders: 4
Cylinders' position: In line
Cooling: Air
Alternator: Synchronous, brushless
Poles: 4
Bore x stroke (mm): 91.4x127
Fuel tank capacity (L): 55
Consumption (L/h): 3.4 at 75% of the load
Running time (h): 16 to 75% of the load
Acoustic pressure: 96 dB(A)
Length (mm): 1960
Width (mm): 820
Height (mm): 1285
Dry weight (Kg): 699
Silenced: Yes
Super silenced: Yes
Brushes: No
Product type: Generator

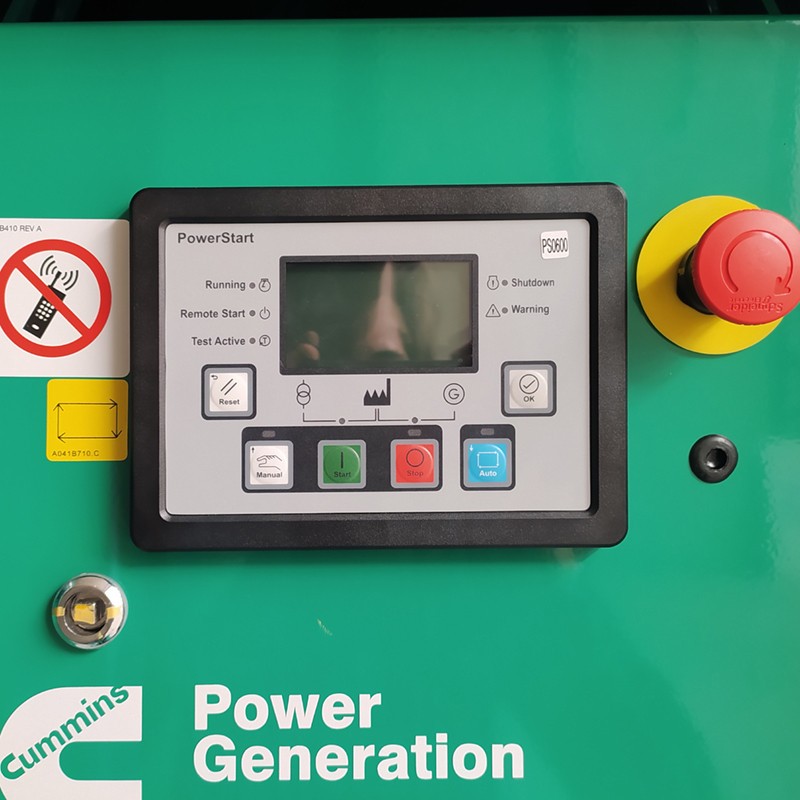

Control unit: PowerStart 600
ATS Switch device: Optional
Type of alternator: Constant Speed
Voltage regulator: Compound
Engine manufacturer: Cummins
Precision of voltage regulation: ± 2,5%

Specific References

Condition New

CUMMINS C17D5Q GENERATOR 16,5KVA SINGLE-PHASE/THREE-PHASE SILENCED

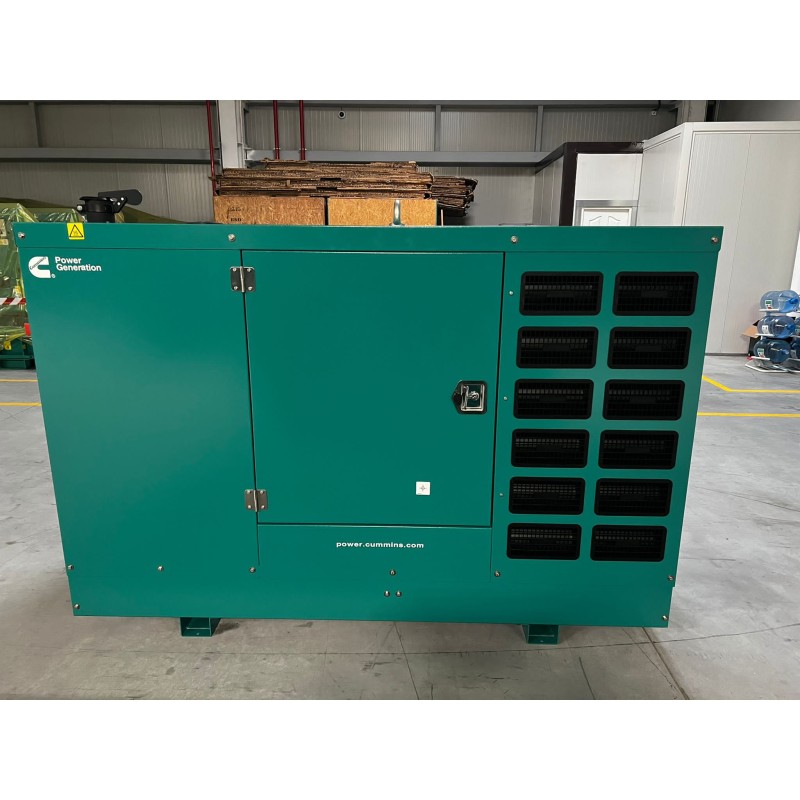

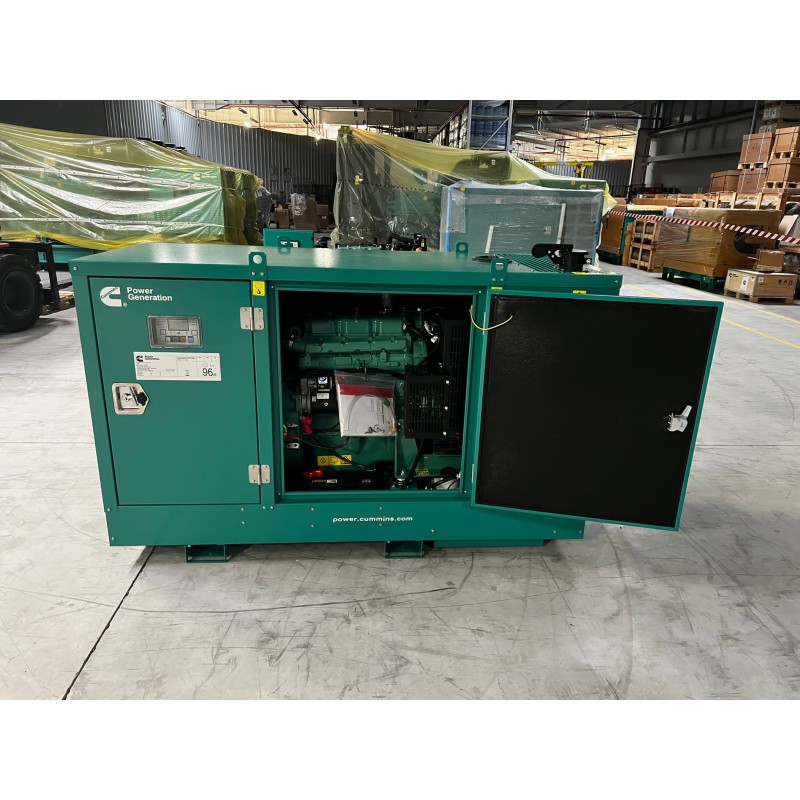

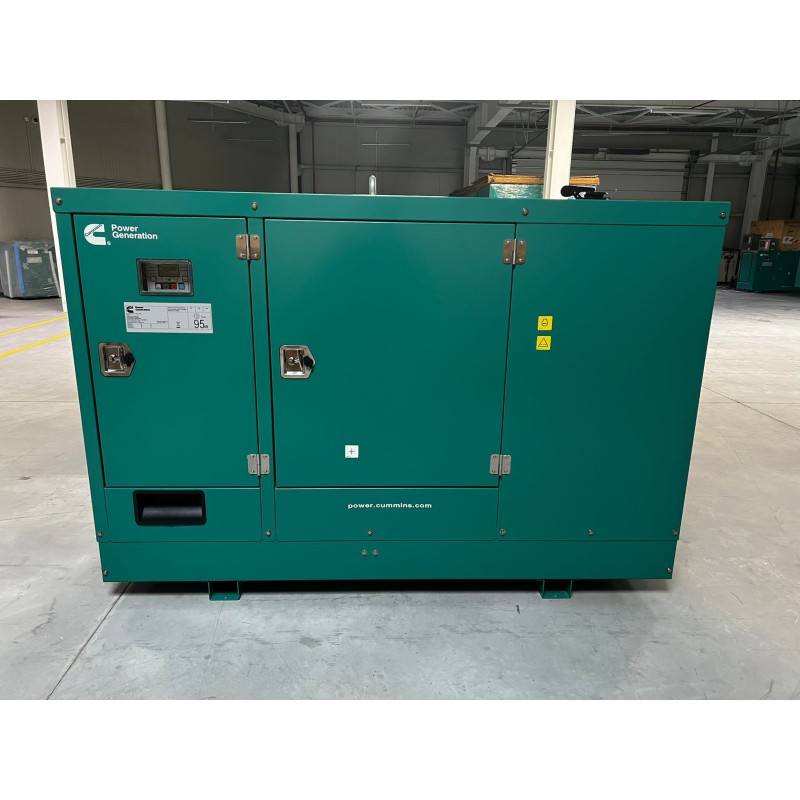

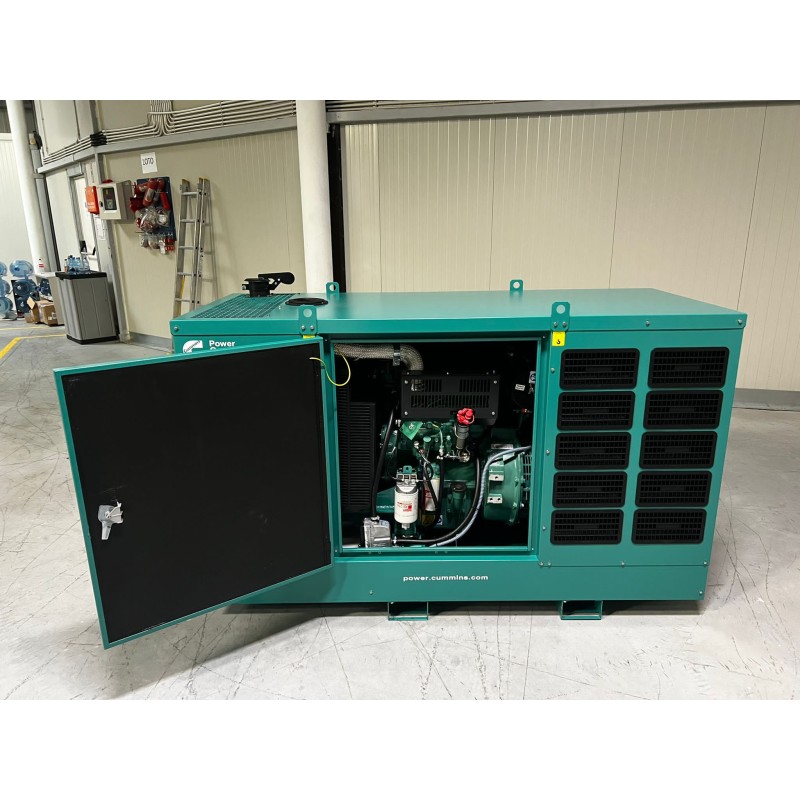

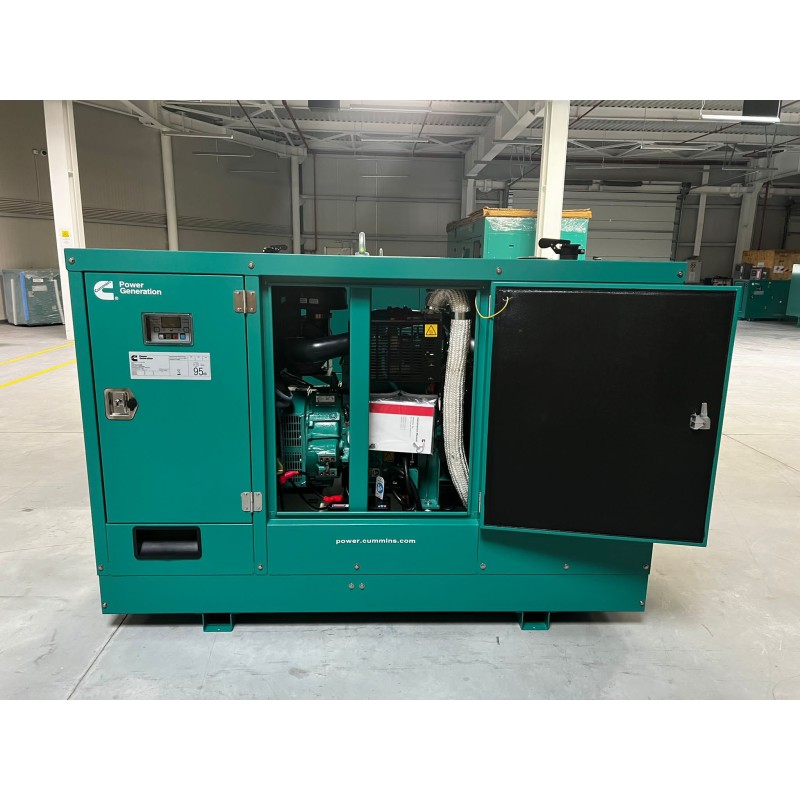

The CUMMINS C17D5Q generator is equipped with a Cummins X2.5-G2 engine powered by diesel and is capable of delivering a maximum power of 16.5KVA, complete with compound voltage regulator.

The CUMMINS C17D5Q generator is compact and easy to use, equipped with a hood with sound-absorbing panels that significantly lower acoustic emissions and make it supersilent.

The Generator is equipped with an electric start and with low fuel consumption, in fact it consumes less than 4 litres/hour at 75% of the load for an autonomy of up to 16 hours of operation. The generating set guarantees efficient and silent operation thanks to the Cummins X2.5-G2 engine, which allows for the delivery of a maximum power of 16.5KVA.
In addition, it is equipped with automatic starting via the ATS panel, which allows it to start independently in the event of a blackout.

ATS AUTOMATIC STARTER PANEL ARRANGEMENT

The CUMMINS C17D5Q generator is designed for connection to ATS automatic starter panel. Thanks to which you will no longer have to worry about blackouts, since, in the event of a power failure from the mains, this panel is able to turn on the group and will allow you to continue your business without losing your work data.

CUMMINS C17D5Q TECHNICAL SPECIFICATIONS

Are you looking for a generator with different technical characteristics? HERE you can find the full range of CUMMINS generators and other specialized brands.

Non-binding images and technical data

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
