MOSA GE 17000 HBT SINGLE-PHASE / THREE-PHASE GENERATOR 16,5KVA STAGE V
      MOSA GE 17000 HBT SINGLE-PHASE / THREE-PHASE GENERATOR 16,5KVA STAGE V

      MOSA GE 17000 HBT SINGLE-PHASE / THREE-PHASE GENERATOR 16,5KVA STAGE V

      CL4L6001

      Phase type: Single-phase / Three-phase
      Maximum Three-phase power: 16.5 KVA / 13.2 KW
      Three-phase Continuous Power: 14.5 KVA / 11.6 KW
      Single-phase Continuous Power: 7.5 KVA / 7.5 KVA
      Fuel: Petrol
      Voltage: 230 - 400 V
      Frequency: 50 Hz
      Engine: HONDA iGX 800
      Starting: Electric
      Emissions standard: Stage V
      Number of cylinders: 2
      Displacement: 779 cc
      Engine revolutions: 3000 rpm
      Sockets panel: 1x 400V 32A 3P CEE | 2x 230V 16A 2P CEE
      Voltage regulator: AVR
      Tank capacity: 18 l
      Autonomy: 3.8 h at 75% of the load
      Consumption: 4.73 l / h at 75% of the load
      Acoustic pressure: 74 dB (A) @ 7 m
      Length: 935 mm
      Width: 525 mm
      Height: 645 mm
      Weight: 155 Kg

      List price
      8,832.80 € tax incl.
      7,240.00 € tax excl.
      Discounted Price
      4,549.51 € tax incl.
      3,729.11 € tax excl.
      Shipping from 80.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote
      Product: MOSA GE 17000 HBT SINGLE-PHASE / THREE-PHASE GENERATOR 16,5KVA STAGE V

      PERSONAL DATA


      Ask a question
      Product: MOSA GE 17000 HBT SINGLE-PHASE / THREE-PHASE GENERATOR 16,5KVA STAGE V
      Offer on letterhead
      Product: MOSA GE 17000 HBT SINGLE-PHASE / THREE-PHASE GENERATOR 16,5KVA STAGE V
      MOSA
      CL4L6001

      Data sheet

      Phase
      Single phase / Three phase
      Continuous power single phase (KW)
      7.5
      Continuous power single phase (KVA)
      7.5
      Maximum power three phase (KW)
      13.2
      Continuous power three phase (KW)
      11.6
      Maximum power three phase (KVA)
      16.5
      Continuous power three phase (KVA)
      14.5
      Fuel
      Gasoline
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      1x 400V 32A 3P CEE | 2x 230V 16A 2P CEE
      Engine
      Honda iGX390, 4 stroke, OHV
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      3000
      Starting system
      Electric
      Engine capacity (cm³)
      779
      Number cylinders
      2
      Oil capacity (L)
      2
      Cooling
      Air
      Alternator
      Synchronous self-excited, self-regulated
      Fuel tank capacity (L)
      18
      Consumption (L/h)
      4.7
      Running time (h)
      3.8
      Acoustic power
      99 dB(A)
      Acoustic pressure
      74 dB(A) at 7 m
      Length (mm)
      935
      Width (mm)
      525
      Height (mm)
      645
      Dry weight (Kg)
      155
      Silenced
      No
      Super silenced
      No
      Product type
      Generator
      ATS Switch device
      No
      Voltage regulator
      AVR
      Engine manufacturer
      Honda

      Specific References

      New

      MOSA GE 17000 HBT SINGLE / THREE-PHASE GENERATOR 16,5KVA STAGE V

      MOSA GE 17000 HBT is a single / three-phase generator with HONDA iGX 800 StageV petrol-powered engine, capable of delivering a maximum power of 16.5KVA, complete with AVR voltage regulator

      MOSA GE 17000 HBT is equipped with an AVR regulator that allows connection to sensitive electronic devices (computers, smartphones, TVs) without the risk of damaging them due to surges in the supply current.

      The purpose of the AVR in a power source is to keep the output stable. And if its operation is very simple when resistive loads are supplied, the situation is more complex in the case of mainly inductive loads: the delayed phase-shifted current contrasts the inductor magnetic field, causing a voltage drop at the alternator output terminals. ; to compensate for the phenomenon, the AVR automatically intervenes by increasing the excitation current, until the output returns to the nominal value.

      STAGEV EMISSIONS REGULATION

      The generator is equipped with a "mobile" STAGEV motorization, as required by the European Regulation 2016/1628. These new engines make it possible to exponentially reduce the emissions of particulate matter and nitrogen oxides delivered by the generator into the environment, and ensure a reduction in the environmental impact of 200% compared to standard engines.

      The control panel consists of:
      - Ignition key
      - Alarm light (led) oil alert
      - Fuel tap
      - Multifunction digital instrument: Voltmeter / Frequency meter / Total hour counter / Partial hour counter (resettable)
      - Magnetothermic switch
      - Differential switch
      - Magnetothermic switch for 230V 16A sockets
      - Output sockets: 1x 400V 32A 3P + N + T CEE | 2x 230V 16A 2P + T CEE
      - Earth terminal (PE)

      Technical characteristics of MOSA GE 17000 HBT:

      Phase type: Single / Three-phase
      Maximum Threephase power: 16.5 KVA / 13.2 KW
      Threephase Continuous Power: 14.5 KVA / 11.6 KW
      Singlephase Continuous Power: 7.5 KVA / 7.5 KVA
      Fuel: Petrol
      Voltage: 230 - 400 V
      Frequency: 50 Hz
      Engine: HONDA iGX 800
      Starting: Electric
      Emissions standard: Stage V
      Number of cylinders: 2
      Displacement: 779 cc
      Engine revolutions: 3000 rpm
      Sockets panel: 1x 400V 32A 3P CEE | 2x 230V 16A 2P CEE
      Voltage regulator: AVR
      Tank capacity: 18 l
      Autonomy: 3.8 h at 75% of the load
      Consumption: 4.73 l / h at 75% of the load
      Acoustic pressure: 74 dB (A) @ 7 m
      Length: 935 mm
      Width: 525 mm
      Height: 645 mm
      Weight: 155 Kg

      Are you looking for a product with different technical characteristics? HERE you can find the full range of Mosa generators and other specialized brands.

      Images and technical data not binding.

      GASOLINE TANK 20 LT | Manel ServiceGASOLINE TANK 20 LT
          ACCESSORIES / SPARE PARTS
          Metal approved 20 lt gasoline jerry can
          46.00 €Price
          KIT MESSA A TERRA 10 METRI
              ACCESSORIES / SPARE PARTS
              GROUNDING KIT 10 METRES
              90.00 €Price
              KIT MESSA A TERRA 25 METRI
                  ACCESSORIES / SPARE PARTS
                  GROUNDING KIT 25 METRES
                  103.00 €Price
                  KIT MESSA A TERRA 35 METRI
                      ACCESSORIES / SPARE PARTS
                      GROUNDING KIT 35 METRES
                      107.00 €Price

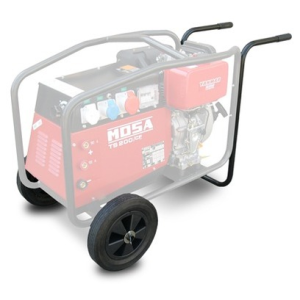

                      MOSA CTM 6/2
