CGM 100VO-B200 WITH AUTOMATIC CONTROL PANEL

Brand: CGM

Reference: CGM 100VO-B200 AUTOMATICO /

Condition: New product

OUT OF PRODUZIONE

Phase type: Single-phase / Three-phase
Maximum three-phase power: 87.2 KW / 109 KVA
Three-phase continuous power: 80 KW / 100 KVA
Maximum single-phase power: 29.07 KW / 36.33 KVA
Single-phase continuous use power: 26.67 KW / 33.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: VOLVO PENTA TAD 531GE
Engine speed: 1500 rpm
Starting: Electric
Consumption: 18.3 Lt/h at 75% load
Length: 2400 mm
Width: 1100 mm
Height: 2000 mm
Weight: 1400 Kg
AVR

Technical features

Phase: Single phase / Three phase
Maximum power single phase (KW): 29.07
Continuous power single phase (KW): 26.67
Maximum power single phase (KVA): 36.3
Continuous power single phase (KVA): 33.33
Maximum power three phase (KW): 87.2
Continuous power three phase (KW): 80
Maximum power three phase (KVA): 109
Continuous power three phase (KVA): 100
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Terminal box
Engine: VOLVO PENTA TAD531GE
Emissions Regulations: Stage 2
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 4760
Number cylinders: 4
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 108 x 130
Fuel tank capacity (L): 120
Consumption (L/h): 18.3
Running time (h): 6.6
Length (mm): 2400
Width (mm): 1100
Height (mm): 2000
Dry weight (Kg): 1400
AVR: Yes
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Volvo

Details

CGM 100VO-B200 Single/three-phase 100KVA generator with automatic control panel

The CGM 100VO-B200 is a single/three phase 100KVA generator with a 1500 rpm Volvo diesel engine, compact and easy to use, mounted on a fixed base. This CGM 100VO-B200 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.

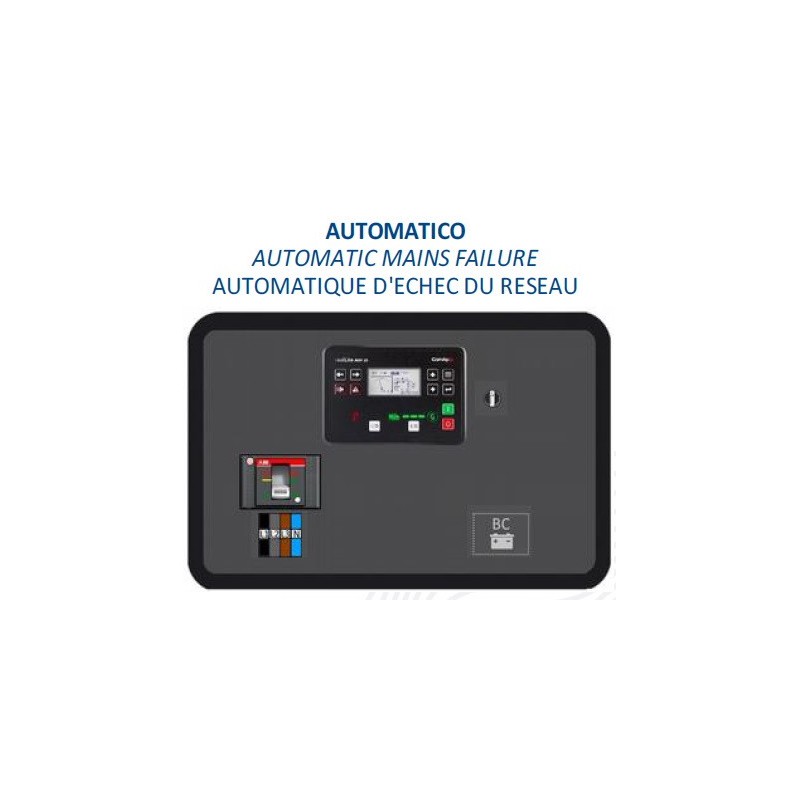

The CGM 100VO-B200 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 100VO-B200 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 18,3 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 100VO-B200 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 100VO-B200 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 87.2 KW / 109 KVA
Three-phase continuous power: 80 KW / 100 KVA
Maximum single-phase power: 29.07 KW / 36.33 KVA
Single-phase continuous use power: 26.67 KW / 33.33 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: VOLVO PENTA TAD 531GE
Engine speed: 1500 rpm
Starting: Electric
Consumption: 18.3 Lt/h at 75% load
Length: 2400 mm
Width: 1100 mm
Height: 2000 mm
Weight: 1400 Kg
AVR

If you are looking for a product like the CGM 100VO-B200 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
