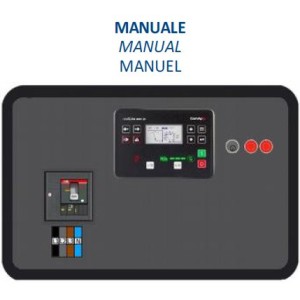

CGM 200F-C200 WITH MANUAL CONTROL PANEL
      CGM 200F-C200 WITH MANUAL CONTROL PANEL
      CGM 200F-C200 WITH MANUAL CONTROL PANEL
      CGM 200F-C200 WITH MANUAL CONTROL PANEL

      CGM 200F-C200 WITH MANUAL CONTROL PANEL

      CGM 200F-C200 MANUALE

      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 176 KW / 220 KVA
      Three-phase continuous power: 160 KW / 200 KVA
      Maximum single-phase power: 58.67 KW / 73.33 KVA
      Single-phase continuous use power: 53.33 KW / 66.67 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: FPT NEF N67TM7
      Engine speed: 1500 rpm
      Starting: Electric
      Consumption: 32 Lt/h at 75% load
      Length: 3200 mm
      Width: 1100 mm
      Height: 2090 mm
      Weight: 2050 Kg
      Super-silenced
      AVR

      List price
      51,215.60 € tax incl.
      41,980.00 € tax excl.
      Discounted Price
      32,010.36 € tax incl.
      26,238.00 € tax excl.
      Shipping from 585.00 € to Italy buy it today.
      Calculate Shipping Cost
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      CGM
      CGM 200F-C200 MANUALE

      Data sheet

      Phase
      Single phase / Three phase
      Maximum power single phase (KW)
      58.67
      Continuous power single phase (KW)
      53.33
      Maximum power single phase (KVA)
      73.3
      Continuous power single phase (KVA)
      66.67
      Maximum power three phase (KW)
      176
      Continuous power three phase (KW)
      160
      Maximum power three phase (KVA)
      220
      Continuous power three phase (KVA)
      200
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Sockets configuration
      Terminal box
      Engine
      FPT NEF N67TM7
      Emissions Regulations
      Stationary Use
      Engine rpm (rpm)
      1500
      Speed governor
      Mechanical
      Starting system
      Electric
      Engine capacity (cm³)
      6
      Number cylinders
      6
      Cooling
      Water
      Alternator
      Brushless
      Poles
      4
      Protection degree
      IP44
      Bore x stroke (mm)
      104 x 132
      Fuel tank capacity (L)
      250
      Consumption (L/h)
      32
      Running time (h)
      7.8
      Acoustic pressure
      69 dB(A) at 7 m
      Length (mm)
      3200
      Width (mm)
      1100
      Height (mm)
      2090
      Dry weight (Kg)
      2050
      AVR
      Yes
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Generator
      ATS Switch device
      No
      Voltage regulator
      AVR
      Engine manufacturer
      FPT Iveco

      Specific References

      New

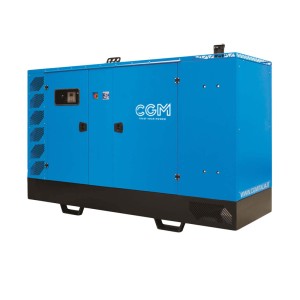

      CGM 200F-C200 Single/three-phase 200KVA generator super-silenced with manual control panel

      The CGM 200F-C200 is a single/three phase 200KVA generator with a 1500 rpm FPT diesel engine, compact and easy to use, mounted on a fixed base. This generator is equipped with a soundproofed cabin made of structural steel plate, weatherproofed and lined with sound-absorbing material with high noise reduction, which makes the CGM 200F-C200 supersilenced.
      The CGM 200F-C200 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 200F-C200 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 32 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
      This generator is perfect for use outdoors, such as on construction sites.
      The CGM 200F-C200 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

      Technical characteristics of the CGM 200F-C200 generator:
      Phase type: Single-phase / Three-phase
      Maximum three-phase power: 176 KW / 220 KVA
      Three-phase continuous power: 160 KW / 200 KVA
      Maximum single-phase power: 58.67 KW / 73.33 KVA
      Single-phase continuous use power: 53.33 KW / 66.67 KVA
      Fuel: Diesel
      Voltage: 230 V / 400 V
      Frequency: 50 Hz
      Motor: FPT NEF N67TM7
      Engine speed: 1500 rpm
      Starting: Electric
      Consumption: 32 Lt/h at 75% load
      Length: 3200 mm
      Width: 1100 mm
      Height: 2090 mm
      Weight: 2050 Kg
      Super-silenced
      AVR

      If you are looking for a product like the CGM 200F-C200 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

      Images and technical data are not binding.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
