CGM 50F-C50 WITH AUTOMATIC CONTROL PANEL

Name: CGM 50F-C50 WITH AUTOMATIC CONTROL PANEL
Brand: CGM
SKU: CGM 50F-C50 AUTOMATICO
Price: 13743.3 EUR
Availability: InStock

Reference CGM 50F-C50 AUTOMATICO

Phase type: Single-phase / Three-phase
Maximum three-phase power: 44 KW / 55 KVA
Three-phase continuous power: 40 KW / 50 KVA
Maximum single-phase power: 14.67 KW / 18.33 KVA
Single-phase continuous use power: 13.33 KW / 16.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N45AM2
Engine speed: 1500 rpm
Starting: Electric
Consumption: 9.3 Lt/h at 75% load
Length: 1650 mm
Width: 850 mm
Height: 1600 mm
Weight: 825 Kg
AVR

Tipo di fase: Monofase / Trifase
Potenza massima trifase: 44 KW / 55 KVA
Potenza uso continuo trifase: 40 KW / 50 KVA
Potenza massima monofase: 14.67 KW / 18.33 KVA
Potenza uso continuo monofase: 13.33 KW / 16.67 KVA
Carburante: Diesel
Tensione: 230 V / 400 V
Frequenza: 50 Hz
Motore: FPT NEF N45AM2
Giri motore: 1500 giri/min
Avviamento: Elettrico
Consumo: 9.3 Lt/h al 75% del carico
Lunghezza: 2000 mm
Larghezza: 850 mm
Altezza: 1275 mm
Peso: 1000 Kg
Supersilenziato
AVR

List price

18,324.40 € tax incl.

15,020.00 € tax excl.

Discounted Price

13,743.30 € tax incl.

11,265.00 € tax excl.

Shipping from 390.40 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 50F-C50 AUTOMATICO

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 14.67
Continuous power single phase (KW): 13.3
Maximum power single phase (KVA): 18.3
Continuous power single phase (KVA): 16.67
Maximum power three phase (KW): 44
Continuous power three phase (KW)
Maximum power three phase (KVA): 55
Continuous power three phase (KVA)
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Morsettiera
Engine: FPT (IVECO) NEFN45AM2
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 4500
Number cylinders: 4
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 104 x 132
Fuel tank capacity (L): 100
Consumption (L/h): 9.3
Running time (h): 10.1
Acoustic pressure: 69 dB(A) at 7 m
Length (mm): 2000
Width (mm): 850
Height (mm): 1275
Dry weight (Kg): 1000
AVR: Yes
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: FPT Iveco

Specific References

Condition New

CGM 50F-C50 Single/three-phase 50KVA generator super-silenced with automatic control panel

The CGM 50F-C50 is a single/three phase 50KVA generator with a 1500 rpm FPT diesel engine, compact and easy to use, mounted on a fixed base. This generator is equipped with a soundproofed cabin made of structural steel plate, weatherproofing and an interior lining made of soundproofing material with high noise reduction, which makes the CGM 50F-C50 supersilenced.

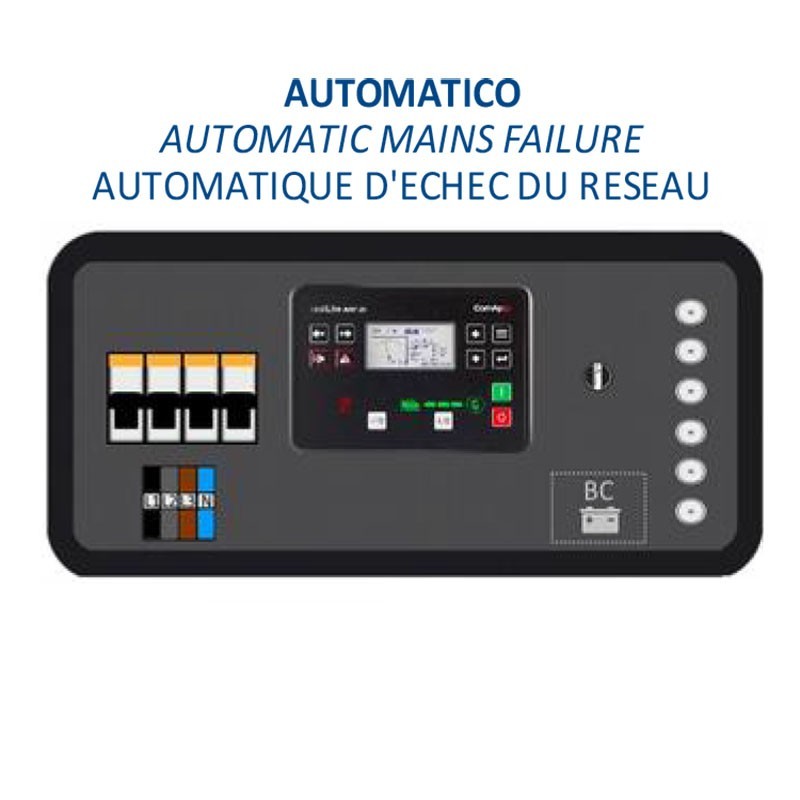

The CGM 50F-C50 generator consists of a Stamford, Mecc Alte or Marelli Motori, self-excited, brushless alternator with AVR voltage regulator. The CGM 50F-C50 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 9,3 litres per hour at 75% load. In addition, it has a control panel with automatic control unit and terminal box for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 50F-C50 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 50F-C50 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 44 KW / 55 KVA
Three-phase continuous power: 40 KW / 50 KVA
Maximum single-phase power: 14.67 KW / 18.33 KVA
Single-phase continuous use power: 13.33 KW / 16.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: FPT NEF N45AM2
Engine speed: 1500 rpm
Starting: Electric
Consumption: 9.3 Lt/h at 75% load
Length: 1650 mm
Width: 850 mm
Height: 1600 mm
Weight: 825 Kg
AVR

If you are looking for a product like the CGM 50F-C50 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
