CUMMINS C66D5EQ GENERATOR 66KVA SINGLE-PHASE/THREE-PHASE SILENCED

  • New
cummins c66d5eq generator 66kva single phasethree phase silenced
search
  • cummins c66d5eq generator 66kva single phasethree phase silenced
  • cummins c66d5eq generator 66kva single phasethree phase silenced
  • cummins c66d5eq generator 66kva single phasethree phase silenced
  • cummins c66d5eq generator 66kva single phasethree phase silenced
  • cummins c66d5eq generator 66kva single phasethree phase silenced
  • cummins c66d5eq generator 66kva single phasethree phase silenced
CUMMINS ONAN
C66D5EQ-S
New product

Phase type: Single-phase / Three-phase
Continuous power: 60 KVA / 48 KW
Maximum power: 66 KVA / 53 KW
Engine: Cummins 4BTAA3,3-G14
Fuel system: Diesel
Engine speed: 1500 rpm
Regulation of revolutions: Mechanical
Alternator: Stamford UC224F
Emissions standard: Stage III A
Starter: Electric / Automatic
Voltage regulator: Compound
Voltage: 230/400 V
Frequency: 50 Hz
Socket panel: Terminal block
Capacity: tank: 200 l
Consumption at 75% of the load: 11.11 l/h
Autonomy at 75% of the load: 18 h
Length: 2315 mm
Width: 1015 mm
Height: 1685 mm
Dry weight: 1282 kg

Technical features
Phase
Single phase / Three phase
Maximum power three phase (KW)
53
Continuous power three phase (KW)
48
Maximum power three phase (KVA)
66
Continuous power three phase (KVA)
60
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230 / 400
Sockets configuration
Terminal box
Engine
Cummins 4BTAA3.3-G14
Emissions Regulations
Stage 3A
Engine rpm (rpm)
1500
Speed governor
Mechanical
Starting system
Electric Automatic/Manual
Number cylinders
4
Cylinders' position
In line
Alternator
Synchronous, brushless
Poles
4
Fuel tank capacity (L)
200
Consumption (L/h)
11.11 at 75% load
Running time (h)
18 at 75% load
Acoustic power
90 dB(A)
Acoustic pressure
64 dB(A) at 7 m / 75 dB(A) at 1 m
Length (mm)
2315
Width (mm)
1015
Height (mm)
1685
Dry weight (Kg)
1282
Silenced
Yes
Super silenced
Yes
Brushes
No
Product type
Generator
Control unit
PowerStart 600
ATS Switch device
Optional
Type of alternator
Constant Speed
Voltage regulator
Compound
Engine manufacturer
Cummins
Precision of voltage regulation
0.5%
Details

CUMMINS C66D5EQ GENERATOR 66KVA SINGLE-PHASE/THREE-PHASE SILENCED

The CUMMINS C66D5EQ generator is equipped with a Cummins 4BTAA3,3-G14 engine powered by diesel and is capable of delivering a maximum power of 66KVA, complete with compound voltage regulator.

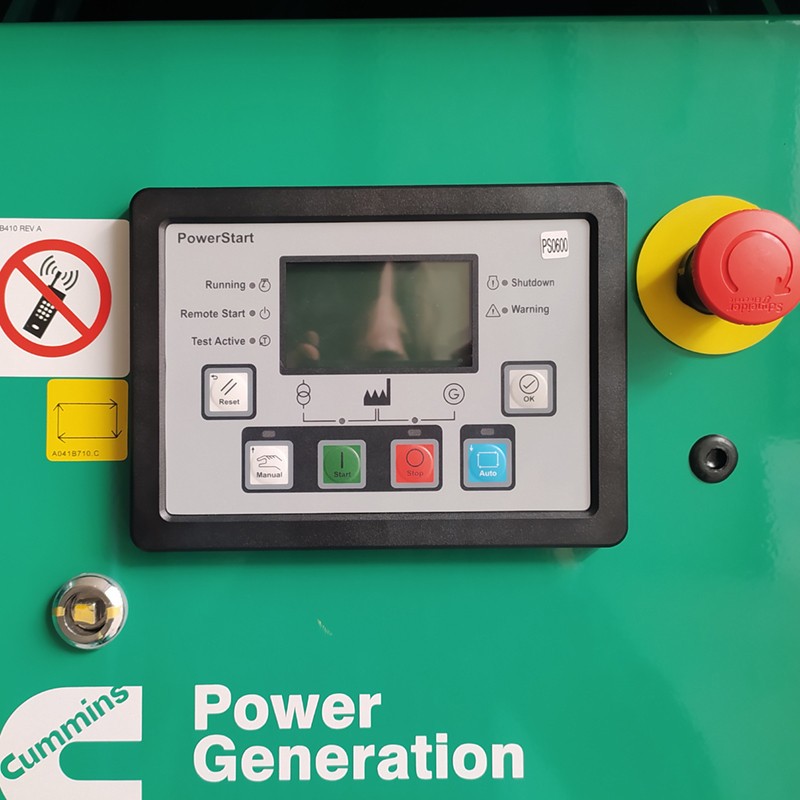

The CUMMINS C66D5EQ is equipped with PowerStart 600 control unit which allows you to view all the electrical parameters of the engine and generator, the functions, the status of the generating set, manage the entire group and view, in case they occur, system errors or alarms. Controller provides simple interface, auto/manual and remote start/stop control and stop fault indication. The integration of all control functions in a single command ensures greater reliability and performance compared to conventional generator set control systems.

The CUMMINS C66D5EQ generator is compact and easy to use, equipped with a bonnet with sound-absorbing panels that significantly lower acoustic emissions and make it supersilenced.

The Generator is equipped with an electric start and with low fuel consumption, in fact it consumes about 11 litres/hour at 75% of the load for an autonomy of up to 18 hours of operation. The generator set guarantees efficient and silent operation thanks to the Cummins 4BTAA3,3-G14 engine, which allows it to deliver a maximum power of 66KVA.
In addition, it is equipped with automatic starting via the ATS panel, which allows it to be switched on autonomous in case of blackout.

Thanks to the advanced control unit, the generator is equipped with:

PC based software service tool
Inpower Modbus interface for interconnection with PLC/BMS
Configurable inputs and outputs
Configurable alarm inputs to cause a shutdown or warning response

ATS AUTOMATIC STARTER PANEL ARRANGEMENT

The CUMMINS C66D5EQ generator is designed for connection to ATS automatic starter panel. Thanks to which you will no longer have to worry about blackouts, since, in the event of a power failure from the mains, this panel is able to turn on the group and will allow you to continue your business without losing your work data.

CUMMINS C66D5EQ TECHNICAL SPECIFICATIONS

Phase type: Single-phase / Three-phase
Continuous power: 60 KVA / 48 KW
Maximum power: 66 KVA / 53 KW
Engine: Cummins 4BTAA3,3-G14
Fuel system: Diesel
Engine speed: 1500 rpm
Regulation of revolutions: Mechanical
Alternator: Stamford UC224F
Emissions standard: Stage III A
Starter: Electric / Automatic
Voltage regulator: Compound
Voltage: 230/400 V
Frequency: 50 Hz
Socket panel: Terminal block
Capacity: tank: 200 l
Consumption at 75% of the load: 11.11 l/h
Autonomy at 75% of the load: 18 h
Length: 2315 mm
Width: 1015 mm
Height: 1685 mm
Dry weight: 1282 kg

Are you looking for a generator with different technical characteristics? HERE you can find the full range of CUMMINS generators and other specialized brands.

The images and technical data are not binding and may be subject to revisions by the manufacturer.

Technical Sheet / Manuals
Related Accessories
List price
30.436,56 € tax incl.
24.948,00 € tax excl.
Discounted Price
16.915,30 € tax incl.
13.865,00 € tax excl.
Quantity

loader
425,00 € shipped to Italy

Calculate Shipping Cost
Add to wishlist
Download PDF
Ask a question
