copy of CGM 20P-C20 WITH AUTOMATIC CONTROL PANEL

Name: copy of CGM 20P-C20 WITH AUTOMATIC CONTROL PANEL
Brand: CGM
SKU: CGM 20P-C20 AUTOMATICO
Price: 10458.45 EUR
Availability: InStock

Reference CGM 20P-C20 AUTOMATICO

CGM 20P-C20 WITH AUTOMATIC CONTROL PANEL

Phase type: Single-phase / Three-phase
Maximum three-phase power: 17.6 KW / 22 KVA
Three-phase continuous power: 16 KW / 20 KVA
Maximum single-phase power: 5.87 KW / 7.33 KVA
Single-phase continuous use power: 5.33 KW / 6.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 404A-22G1
Engine speed: 1500 rpm
Starting: Electric
Consumption: 4 Lt/h at 75% load
Length: 1580 mm
Width: 700 mm
Height: 1050 mm
Weight: 590 Kg
Super-silenced
AVR

List price

13,944.60 € tax incl.

11,430.00 € tax excl.

Discounted Price

10,458.45 € tax incl.

8,572.50 € tax excl.

Shipping from 195.20 € to Italy buy it today. tax incl.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 20P-C20 AUTOMATICO

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 5.8
Continuous power single phase (KW): 5.33
Maximum power single phase (KVA): 7.3
Continuous power single phase (KVA): 6.67
Maximum power three phase (KW): 17.6
Continuous power three phase (KW): 16
Maximum power three phase (KVA): 22
Continuous power three phase (KVA): 20
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: Morsettiera
Engine: Perkins 404A-22G1
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Elettrico
Engine capacity (cm³): 2216
Number cylinders: 4
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 84 x 100
Fuel tank capacity (L): 55
Consumption (L/h): 4
Running time (h): 27.5
Acoustic pressure: 68 dB(A) at 7 m
Length (mm): 1580
Width (mm): 700
Height (mm): 1050
Dry weight (Kg)
AVR: Yes
Silenced: Yes
Super silenced: Yes
Product type: Generator
ATS Switch device: Optional
Voltage regulator: AVR
Engine manufacturer: Perkins

Specific References

Condition New

CGM 20P-C20 Single/three-phase 20KVA generator with automatic control panel

The CGM 20P-C20 is a single/three phase 20KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. The CGM 20P-C20 is equipped with a weatherproof, structural steel sheet soundproof cabin and an interior cladding of high noise reduction material, making the CGM 20P-C20 supersilenced.

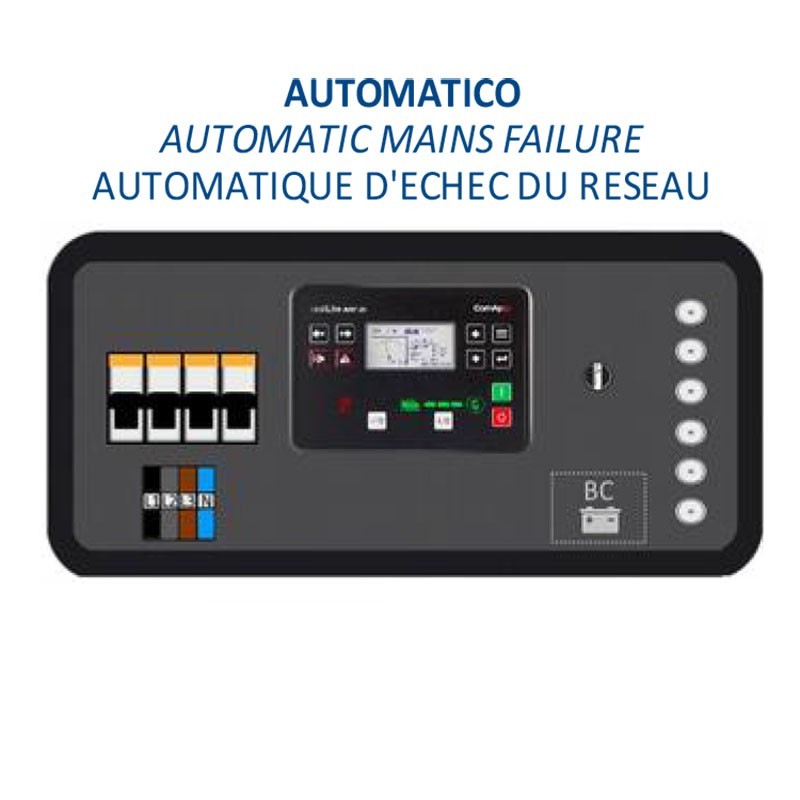

The CGM 20P-C20 generator consists of a Linz, Stamford or Mecc Alte, self-excited, brushless alternator with AVR voltage regulator. The CGM 20P-C20 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 4 litres per hour at 75% load. In addition, it is equipped with a panel with an automatic control unit and terminal block for automatic start-up.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 20P-C20 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 20P-C20 generator:
Phase type: Single-phase / Three-phase
Maximum three-phase power: 17.6 KW / 22 KVA
Three-phase continuous power: 16 KW / 20 KVA
Maximum single-phase power: 5.87 KW / 7.33 KVA
Single-phase continuous use power: 5.33 KW / 6.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 404A-22G1
Engine speed: 1500 rpm
Starting: Electric
Consumption: 4 Lt/h at 75% load
Length: 1580 mm
Width: 700 mm
Height: 1050 mm
Weight: 590 Kg
Super-silenced
AVR

If you are looking for a product like the CGM 20P-C20 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
