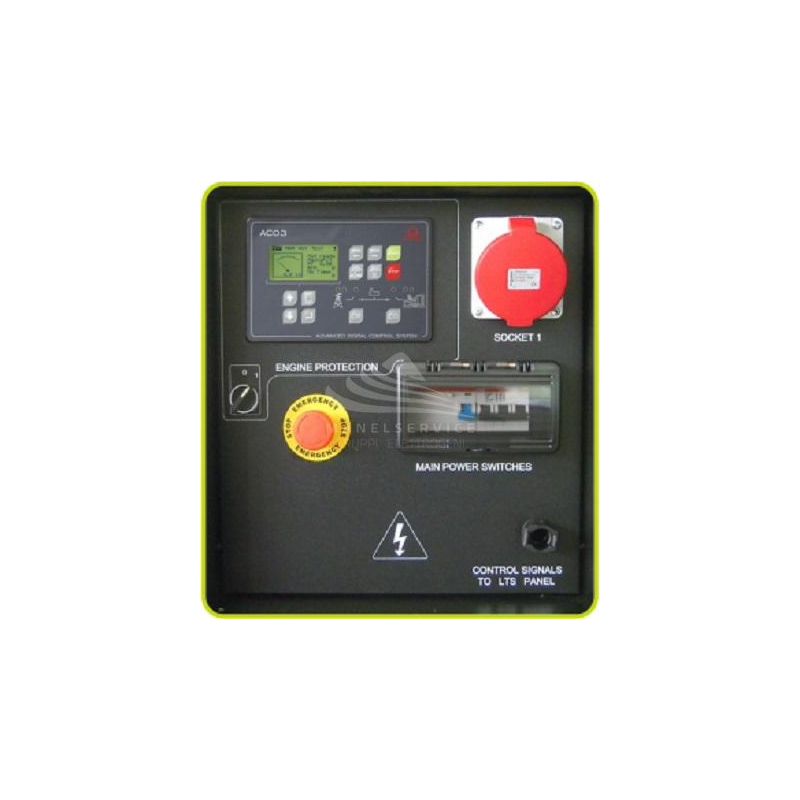

PRAMAC GBW22P GENSET WITH AUTOMATIC CONTROL PANEL

Reference SH200TPAL02 /

OUT OF PRODUCTION

Maximum power Three-phase: 17.46 KW
Three-phase continuous use power: 15.82 KW
Fuel: Diesel
Voltage: 400 V
Frequency: 50 Hz
Engine: Perkins 404D-22G
Starting: Electric
Consumption: 5.3 Lt/h at 100% of the load
Length: 1600 mm
Width: 870 mm
Height: 950 mm
Weight: 425 Kg
Compound

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SH200TPAL02 /

Data sheet

Phase: Three phase
Maximum power three phase (KW): 17.46
Continuous power three phase (KW): 15.42
Maximum power three phase (KVA): 21.82
Continuous power three phase (KVA): 19.78
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 400
Sockets configuration: 1 x 400V 32A 3P+N+T CEE
Engine: PERKINS 404D-22G, naturally aspirated
Emissions Regulations: Stage 3A
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2216
Number cylinders: 4
Cylinders' position: In line
Oil capacity (L): 10.6
Cooling: Water
Alternator: Linz E1S13MF, with brushes
Poles: 4
Fuel tank capacity (L): 51
Consumption (L/h): 4 at 75% of the load / 5.3 at 100% of the load
Running time (h): 12.8 at 75% of the load / 9.7 at 100% of the load
Length (mm): 1600
Width (mm): 870
Height (mm): 950
Dry weight (Kg): 425
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: Optional
Voltage regulator: Compound
Engine manufacturer: Perkins

Specific References

Condition New

La serie GBW offre macchine affidabili e potenti, costruite per l'uso professionale in supporto alla rete elettrica in caso di black out o per servire luoghi isolati.
Facili da trasportare, installare e posizionare grazie alla dimensione compatta, questo modello è ideale per l'emergenza rete, edilizia, officine mobili e applicazioni industriali.
Disponiblie in versione aperta o cofanata.

● Motori diesel YANMAR/PERKINS
● Raffreddamento ad acqua
● Silenziatore industriale
● Base forcabile con carrelli
● Liquidi motore e batteria carica
● Quadro manuale MCP fornito di serie con 5 prese.

Le immagini sono puramente indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
