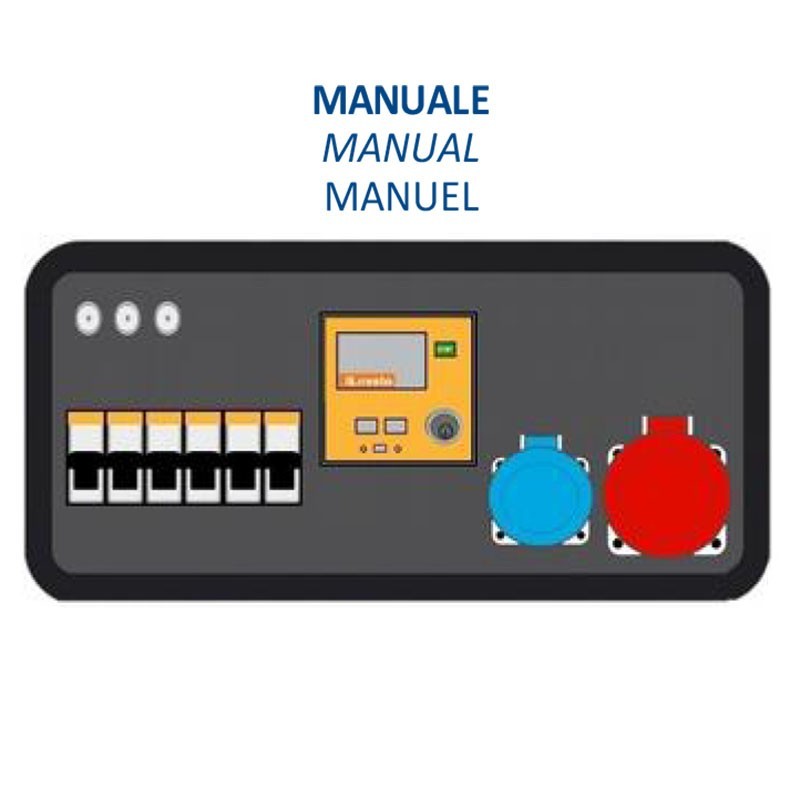

CGM 20P-B20 WITH MANUAL CONTROL PANEL

Name: CGM 20P-B20 WITH MANUAL CONTROL PANEL
Brand: CGM
SKU: CGM 20P-B20 MANUALE
Price: 8738 EUR
Availability: InStock

Reference CGM 20P-B20 MANUALE

Phase type: Single-phase / Three-phase
Maximum three-phase power: 17.6 KW / 22 KVA
Three-phase continuous power: 16 KW / 20 KVA
Maximum single-phase power: 5.87 KW / 7.33 KVA
Single-phase continuous use power: 5.33 KW / 6.67 KVA
Fuel: Diesel
Voltage: 230 V / 400 V
Frequency: 50 Hz
Motor: PERKINS 404A-22G1
Engine speed: 1500 rpm
Starting: Electric
Consumption: 4 Lt/h at 75% load
Length: 1400 mm
Width: 700 mm
Height: 1400 mm
Weight: 495 Kg
AVR

List price

17,055.60 € tax incl.

13,980.00 € tax excl.

Discounted Price

10,660.36 € tax incl.

8,738.00 € tax excl.

Shipping from 135.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: CGM 20P-B20 WITH MANUAL CONTROL PANEL

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: CGM 20P-B20 WITH MANUAL CONTROL PANEL

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: CGM 20P-B20 WITH MANUAL CONTROL PANEL

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference CGM 20P-B20 MANUALE

Data sheet

Phase: Single phase / Three phase
Maximum power single phase (KW): 5.8
Continuous power single phase (KW): 5.33
Maximum power single phase (KVA): 7.3
Continuous power single phase (KVA): 6.67
Maximum power three phase (KW): 17.6
Continuous power three phase (KW): 16
Maximum power three phase (KVA): 22
Continuous power three phase (KVA): 20
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230 / 400
Sockets configuration: 1 x 400V 32A 5P CEE - 1 x 230V 16A 3P CEE
Engine: Perkins 404A-22G1
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Speed governor: Mechanical
Starting system: Electric
Engine capacity (cm³): 2216
Number cylinders: 4
Cooling: Water
Alternator: Brushless
Poles: 4
Protection degree: IP44
Bore x stroke (mm): 84 x 100
Fuel tank capacity (L): 55
Consumption (L/h): 4
Running time (h): 27.5
Length (mm): 1400
Width (mm): 700
Height (mm): 1400
Dry weight (Kg): 495
AVR: Yes
Silenced: No
Super silenced: No
Product type: Generator
ATS Switch device: No
Voltage regulator: AVR
Engine manufacturer: Perkins

Specific References

Condition New

CGM 20P-B20 Single/three-phase 20KVA generator with manual control panel

The CGM 20P-B20 is a single/three phase 20KVA generator with a 1500 rpm Perkins diesel engine, compact and easy to use, mounted on a fixed base. This CGM 20P-B20 generator is in an open version and is easy to handle and transport thanks to its base with pivoting feet.
The CGM 20P-B20 generator consists of a Linz, Stamford or Mecc Alte, self-excited, brushless alternator with AVR voltage regulator. The CGM 20P-B20 generator is equipped with an electric starter with a low fuel consumption battery, consuming only 4 litres per hour at 75% load. The fuel tank is incorporated in the crankcase for ease of use.
This generator is perfect for use outdoors, such as on construction sites.
The CGM 20P-B20 generator is part of the Industrial range and is characterised by its versatility for installation in urban environments such as shops or shopping centres, for the telecommunications environment, for military applications and much more.

Technical characteristics of the CGM 20P-B20 generator:
Tipo di fase: Monofase / Trifase
Potenza massima trifase: 17.6 KW / 22 KVA
Potenza uso continuo trifase: 16 KW / 20 KVA
Potenza massima monofase: 5.87 KW / 7.33 KVA
Potenza uso continuo monofase: 5.33 KW / 6.67 KVA
Carburante: Diesel
Tensione: 230 V / 400 V
Frequenza: 50 Hz
Motore: PERKINS 404A-22G1
Giri motore: 1500 giri/min
Avviamento: Elettrico
Consumo: 4 Lt/h al 75% del carico
Lunghezza: 1400 mm
Larghezza: 700 mm
Altezza: 1400 mm
Peso: 495 Kg
AVR

If you are looking for a product like the CGM 20P-B20 then you can browse the full range of CGM generators or other types of products in our catalogue to find the one that best suits your needs.

Images and technical data are not binding.
