HYUNDAI THREE-PHASE SILENCED GENERATOR 60KW/75KVA STAGEII
GENERATOR HYUNDAI SILENCED THREE-PHASE STAGEII 60KW/75KVA
The Generator StageII Three-Phase represents the ultimate expression of power and reliability in a single solution.
Designed to meet the needs of individuals, businesses and construction sites, this Hyundai generator offers a number of unbeatable benefits
High performance:

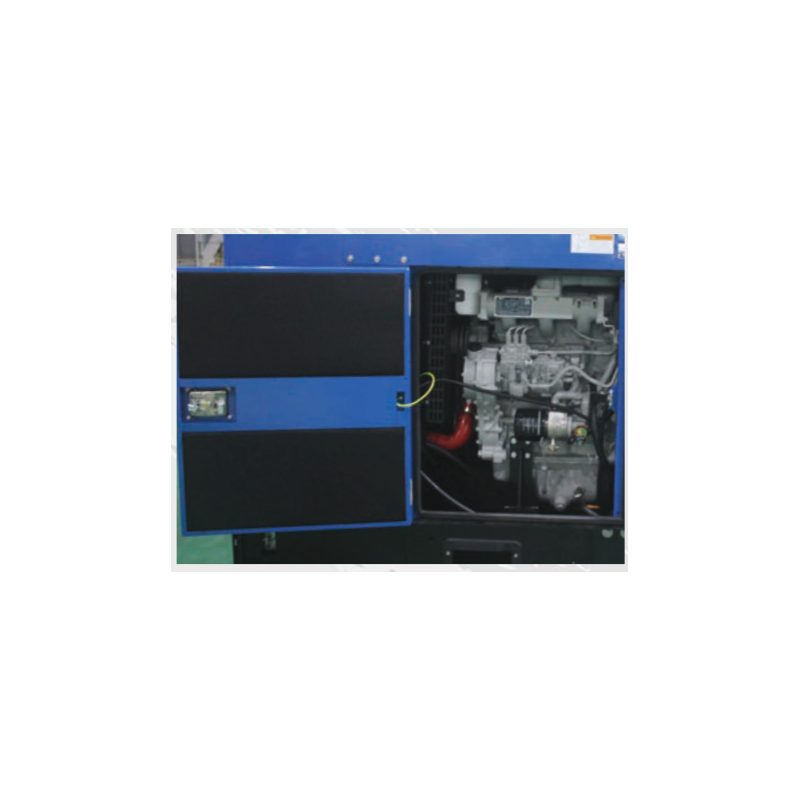

4330 displacement YTO engine: reliable and StageII compliant
Direct injection system: efficiency and low fuel consumption
LK224G alternator: robust and reliable, providing a pure sine wave.
Quiet operation:
Noise level below 108 dB (at 7m): ideal for residential and business environments
Safety and reliability:

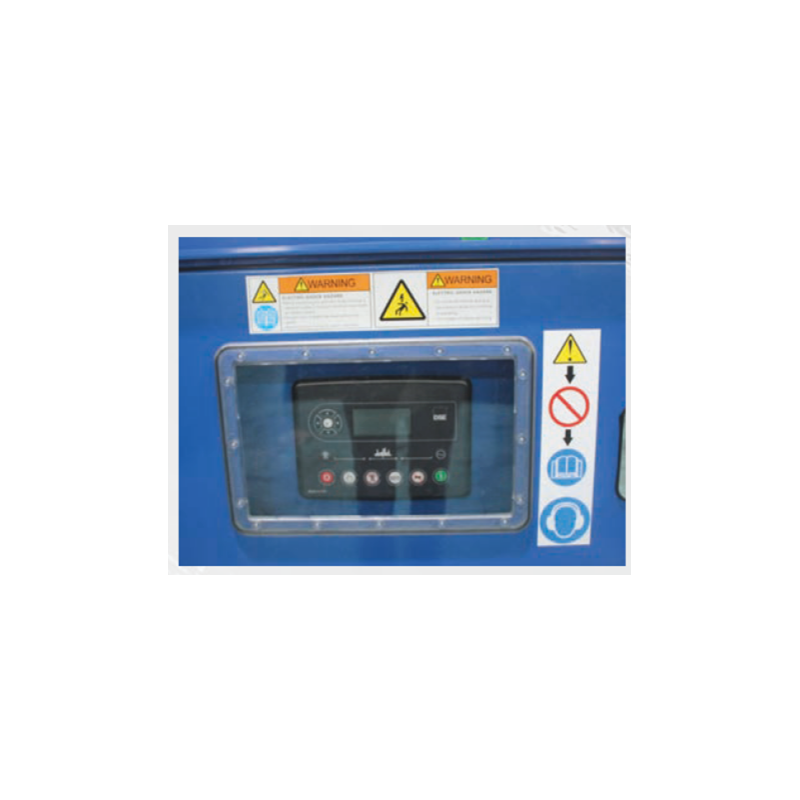

"Waterproof" control panel: intuitive monitoring and control
Emergency button: immediate stop in case of need
Miniature and Waterproof circuit breaker: overload and short-circuit protection
IP23 degree of protection: resistant to water and dust
Hyundai Generator Autonomy and durability:
Wide autonomy: 120-liter tank for extended operation
Liquid cooling system: optimal temperatures even under severe conditions
Advanced control and management:

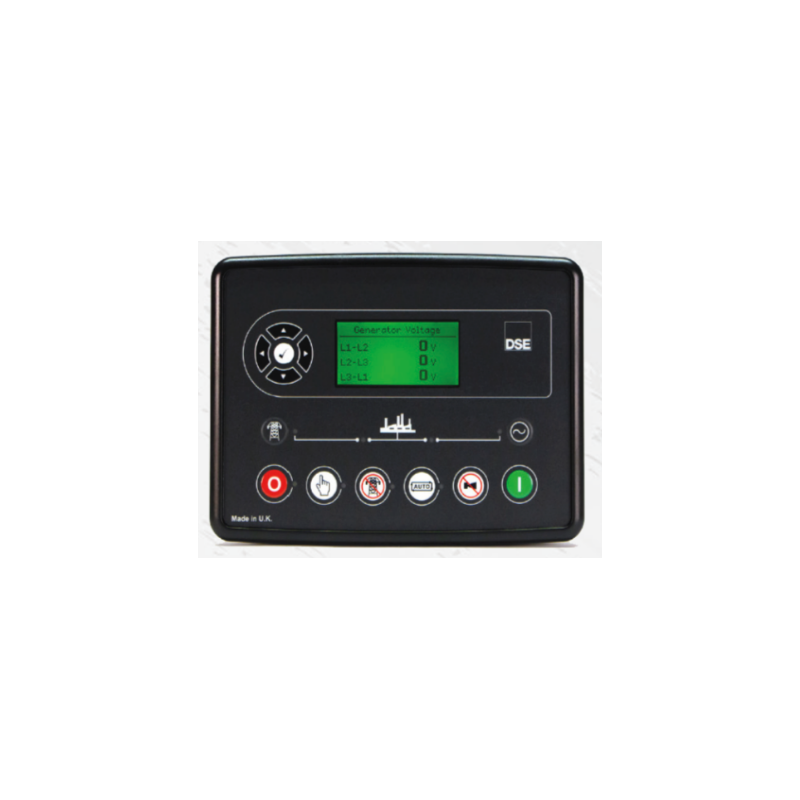

Deepsea DSE6120 control unit
Provision for ATS: automatic connection in case failure
The Hyundai StageII Generator is an ideal choice for:
Private homes: backup and powering high equipment
Businesses: business continuity in case of power outages
Construction sites: power tools and machinery
The Hyundai Three-Phase Silent StageII Generator is the ideal solution
for those looking for a powerful, reliable and quiet Hyundai generator.
With its three-phase and single-phase power, the Hyundai Three-Phase Silent StageII Generator
is capable of powering a wide range of equipment.
The Hyundai Three-Phase Silent StageII Generator
features a direct injection system that ensures efficiency and low fuel consumption.
The Hyundai Three-Phase Silent StageII Generator is a safe and reliable product,
thanks to its "Waterproof" control panel, emergency button and IP23 protection rating.
Hyundai StageII Generator Specifications:
Voltage:230/400 V
Single/three-phase
Three-phase continuous use power: 75 KVA
Nominal power: 20/60 Kw
Max. power MF/TF: 25/75 Kw
Frequency: 50 Hz
Amperage: 108 A
Noise Level: 85 DB (at 7m)
IP Degree of Protection: IP23
Degree of Insulation: H/H
Altitude: <1000m asl
Engine: YTO
Displacement: 4330 cc
Type of Injection: Direct
No. Cylinders: 4
Engine rpm: 1500/min
Emissions: Stage II
Fuel consumption 100%/75%/50% load: 17.6/13.2/9.1 l/h
Fuel: Diesel
Tank capacity: 120 L
Cooling System: Coolant
Control unit: DEEPSEA DSE6120
Total capacity of lubrication system: 16.4 L
Cap. total cooling system 8.3 L
Alternator Model: Lk224G
Exciter: Brushless - Self-excitation
Dimensions L x W x H: 2470 * 1010 * 1150 mm
Weight: 1350 Kg
Predisposition: ATS
If you are looking for a product similar to Hyundai Three Phase Generator click HERE.
The image is purely indicative.
